Open Back Inclinable Press

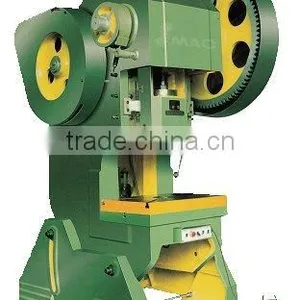

Open Back Inclinable Press thumbnail-1

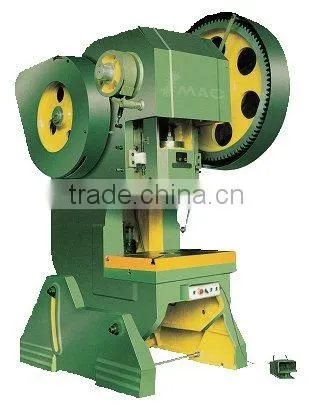

Open Back Inclinable Press photo-1
US$ 1,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Contact Supplier Request Quote Chat Now
SJR Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Power Source Mechanical
Place of Origin Jiangsu, China
Brand Name SMAC
Model Number MP-3.15
Voltage 380v
Power(W) 0.55kw
Weight 194kg
Dimension(L*W*H) 674x489x1323mm
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
Product Description



open back inclinable press

Performance Features:
    1)The machine body adopts foundry technology and crankshaft traverse-placing structure. The machine is designed into compact structure.
    2)The machine has a rigidity rotating-button clutch which is easy structured, convenient to operate and maintenance.
    3) Gear-driving, steady performance, tiny shock and low noises.
    4) Shear plate type overload protector.
    5)The machine can tilt 25° for material-withdrawing to improve productivity.





Num-bers  Specifications  Unit  11001 11002 11003 11004
MP-3.15  MP-6.3 MP-10 MP-16
1 Rated pressure  KN  31.5 63 100 160
2 Slide stroke  mm  25 35 45 55
3 stroke  min-1  200 170 145 120
4 Max. die set height  mm  90 120 100 180
5 Die set height adjustment  mm  25 30 35 45
6 Distance from slide block centre to the frame  mm  90 110 130 160
7 Worktable dimen-sions  Front to back  mm  160 200 240 300
Right to left  mm  250 310 370 450
8 Dimensions of slide block bottom surface  Front to back  mm  90 120 150 180
Right to left  mm  100 140 170 200
9 Size of the handle hole  Diameter  mm  25 25 30 40
Depth  mm  40 55 55 60
10 Inclinable Angle of body   45 45 35 35
11 Motor  Type    Y180L-4  Y90L-6  Y90L-6  Y100L-6
Power  KW  0.55 0.75 1.1 1.5
12 Overall dimension  Long  mm  674 730 895 1130
Wide  mm  489 550 713 834
High  mm  1323 1503 1653 1890
13 Weight  Kg  194 400 576 1055
Packaging & Shipping



The machines are packed with wooden case or depend on your requires.

Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign







Our Services



1.OEM



2.Spare parts



3.Warranty for one year



4.Tech support is available for 24 hours



5.Fast delivery





Company Information

  Found in 1984 Our SMAC/Jmech Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50 or more countries & areas.SMAC/Jmech Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competitive prices and quick & thoughtful after-sale service to cooperate with you.

OFFICE VIEW









CERTIFICATION:



customer visiting:







Our products are exported to more than 50 countries, more than 700 customers













FAQ



1. Accept L/C, T/T  ,D/A,D/Ptype of payments



2. Regarding to the technical questions, pls contact our R&D



3. Any question, call us or send email, we will try our best to satisfy you
