Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Pipe Making Machine > Good Quality Welded Tube Mill ,ZG76 Production Line

Good Quality Welded Tube Mill ,ZG76 Production Line

SJR Machinery Co., Ltd.

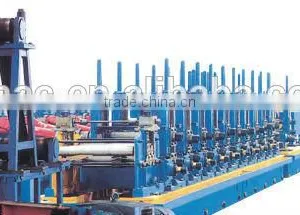

Good Quality Welded Tube Mill ,ZG76 Production Line thumbnail-1
Good Quality Welded Tube Mill ,ZG76 Production Line photo-1
US$ 100,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Pipe Mill, Pipe Welding Machine
Pipe Material:
Carbon Steel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Pipe Mill, Pipe Welding Machine
Pipe Material Carbon Steel
Application Other, Energy Supply Pipe, Energy Supply Pipe
Place of Origin Jiangsu, China
Brand Name SMAC
Model Number ZG76, ZG76
Voltage 380v
Power(W) 200000
Certification ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Product Description

 good quality Welded Tube Mill ,ZG76 Production Line

Features:


Uncoiler-Shear and end welder-Horizontal Accumulator (Vertical or cage type accumulator)-Main machine (Forming, welding, sizing unit)-Computer-Compute-controlled tracking cutting saw-runout table.

Uncoiler-straightening end of strip-powerful leveling machine-Shear and end welder-Horizontal-type Accumulator-Main machine (Forming, welding, sizing)-computer-controlled tracking cutting saw-run out table.

For tube mill, we have the strong capability to design and manufacturing according to client's individual requirements. The tube mills that are produced by "SMAC" . have good quality, we believe our products are the No.1 in China industry.

Main parameters:

Model1216612167121681216912170
ZG76 (Unit)ZG89 (Unit)ZG115 (Unit)ZG165 (Unit)ZG219 (Unit)
Diameter of Welded Tubesø25-80mmø32-95mmø40-120mmø76-165mmø114-219mm
Wall Thickness of Welded Tube1.5-4.0mm1.5-4.5mm2.0-5.0mm2.0-6.0mm3.0-8.0mm
Speed of Tube Welding15-60M/min15-50M/min15-50M/min15-50M/min15-40M/min
Power of Major motor160KW110KWx 2132KW x 2160KW x 2200KW x 3
High Frequency Power300KW300KW400KW600KW800KW





Packaging & Shipping



The machines are packed with wooden case or depend on your requires.

Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign











Our Services



1.OEM



2.Spare parts



3.Warranty for one year



4.Tech support is available for 24 hours



5.Fast delivery









Company Information

  Found in 1984 Our SMAC/Jmech Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50 or more countries & areas.SMAC/Jmech Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competitive prices and quick & thoughtful after-sale service to cooperate with you.

OFFICE VIEW









CERTIFICATION:



customer visiting:







Our products are exported to more than 50 countries, more than 700 customers

















FAQ



1. Accept L/C, T/T  ,D/A,D/Ptype of payments



2. Regarding to the technical questions, pls contact our R&D



3. Any question, call us or send email, we will try our best to satisfy you
