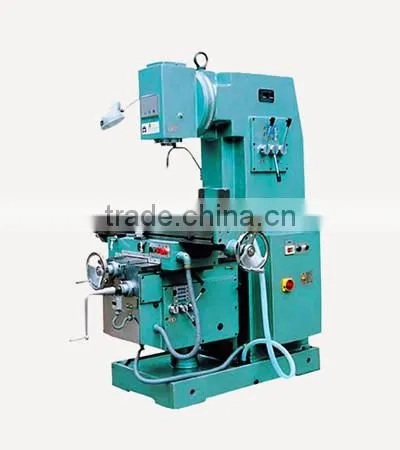

the top sale and high precision chinese vertical knee-type milling machine VM5030A of chian of SMAC
- 44 Set / Sets per Month
- shanghai.china
- T/T L/C D/P D/A
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Benchtop CNC Mill, desktop cnc mill, Compact CNC, educational cnc, prototype cnc, cnc for school, training cnc
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | SMAC |
Model Number: | VM5030A | Type: | Vertical | CNC or Not: | Normal |
Voltage: | 380V | Power(W): | 4kw | Dimension(L*W*H): | 1740*1485*1870mm |
Weight: | 2200/3000kg | Certification: | CE;ISO | Warranty: | 1 year |
Product Description

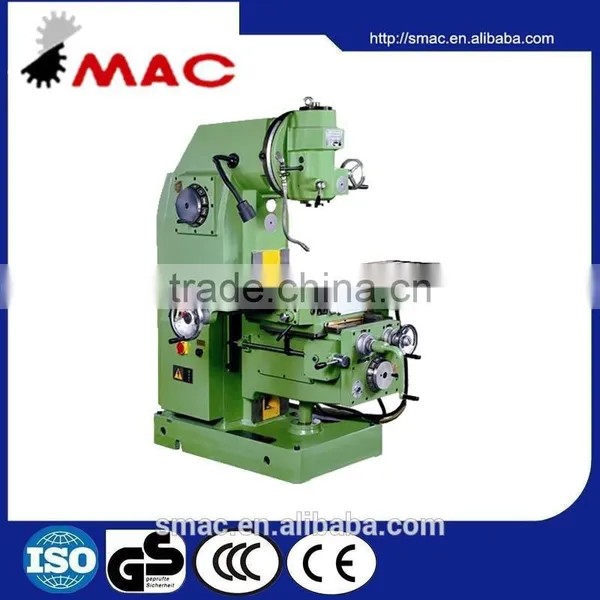

chinese vertical knee-type milling machine VM5030A
chinese vertical knee-type milling machine VM5030A
Standard Accessories
Sutter Arbor Φ22 Φ27mm 1set
End Milling Arbor No.2:No.3 1set
Medium Bushing Φ5 Φ14 1set
Collet Chuck 1set
Wrenches 1set
Anchor Bolts 1set
Oil Gun 1set
Optional Accessories
Universal Dividing Head 125mm 1set
Rotary Work Table Φ320 1set
Plain Vice 160mm 1set
End Milling Cutter Φ80 Φ100 Φ125 1set
Boring Tool holder Φ4-Φ160 1set
Levelling Block 6pcs
Blocking tool P621000 1set
chinese vertical knee-type milling machine VM5030A
Machine Model | VM5025B | VM5030B | VM5030A | VM5030A/L |
Table surface | 250 x 1100 mm | 300 x 1100 mm | 300 x 1150 mm | 300 x 1500 mm |
Number of T-slots | 3 | 3 | ||
Width of T-slots | 14mm | 17mm | ||
Distance between T-slots | 63mm | 70mm | ||
Max. longitudinal travel | 720mm | 680mm | 780mm | |
Max. cross travel | 280mm | 235mm | ||
Max. vertical travel | 410mm | 400mm | ||
Spindle nose | Standard taper 7:24 ISO40 | Standard taper 7:24 No.40 | ||
Number of spindle speeds | 12 steps | 12 steps | ||
Range of spindle speeds | 35-1600rpm | 35-1600rpm | ||
Number of feeds | 12 steps | 14 steps | ||
Range of feed speeds Longitudinal, cross Vertical | 12-560mm/min 5-226mm/min | 12-720mm/min 4-240mm/min | ||
Speed of rapid traverse Longitudinal, cross Vertical | 1780mm/min 720mm/min | 2100mm/min 700mm/min | ||
Main drive motor | 3kw 1400rpm | 4kw 1400rpm | ||
Feed motor | 0.75kw 1380rpm | 0.75kw 1380rpm | ||
Coolant pump | 0.12kw 2500rpm | 40kw 2500rpm | ||
Net weight of machine | 1550kg | 2200kg | ||
Gross weight of machine | 1800kg | 3000kg | ||
Overall dimensions (L x W x H) | 1670 x 1350 x 1800mm | 1740 x 1485 x 1870mm | ||
Packing | 1540 x 1540 x 2160mm |
chinese vertical knee-type milling machine VM5030A
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to SJR Machinery Limited
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE
Our products are exported to more than 50 countries, more than 700 customers
