China Goode New Universal Milling Machine USM32AG of SMAC

China Goode New Universal Milling Machine USM32AG of SMAC photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
SMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai.china
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name SMAC
Model Number USM32AG
Type Universal
CNC or Not Normal
Voltage 380V
Power(W) 7.5kw
Dimension(L*W*H) 2360*1950*2100mm
Weight 3500kg
Certification CE;ISO
Warranty 1 year





Product Description



china goode new universal milling machine



Standard Accessories

Cutter Arbor and Collars Φ22 Φ27mm 1set

End Miling Arbor Φ22 Φ27mm 1set

Arbor Drawing Bolt 1set

Anchor Bolts 1set

Wrenches 1set

Oil Gun 1set

Optional Accessories

Reducing sleeve MT2,MT3 collets

(Φ5,6,8,10,12,14mm) 1set

Levelling block 6pcs

Boring tool holder Φ4-Φ160 1set

Universal dividing head 125mm 1set

Rotary work table Φ320 1set

Plain Vice 160mm 1set

Face milling cutter Φ80 Φ100 Φ125 1set

Rack Milling Attachment Module 2-4.5

(D.P.12-6 optional) 1set





Date



china goode new universal milling machine



Machine Model
USM30S
USM30S/1
Table surface
300 x 1150mm
300 x 1500mm
Worktable traverseLongitudinal
680mm
780mm
Cross
235mm
Vertical
400mm
Range of feed speedsLongitudinal, cross
12-720mm/min
Vertical
4-240mm/min
Speed of rapid traverseLongitudinal, cross
2100mm/min
Vertical
700mm/min
Number of feeds
14 steps
Number of T-slots and slot width
3 x 18mm
Max. rotaions angle of table
45
Level spindle taper
7:24 No: 40
Milling head spindle taper
7:24 No: 40; Morse No: 3
Level spindleGrade of speed
12 steps
Range of speed
35-1600rpm
Milling head spindleGrade of speed
8 steps
8 steps
Range of speed
67-1600 rpm
70-1500rpm
Main drive motormilling head spindle
2.2kw 1440rpm
3kw 1440rpm
Level spindle
4kw 1440rpm
Feed motor
0.75kw 1380rpm
Coolant Pump
40w 2500rpm
Travel of ram
470mm
Overall dimensions
L x W x H 1695 x 1535 x 1728mm
Net weight of machine
2650kg
Gross weight of machine
3450kg





product show

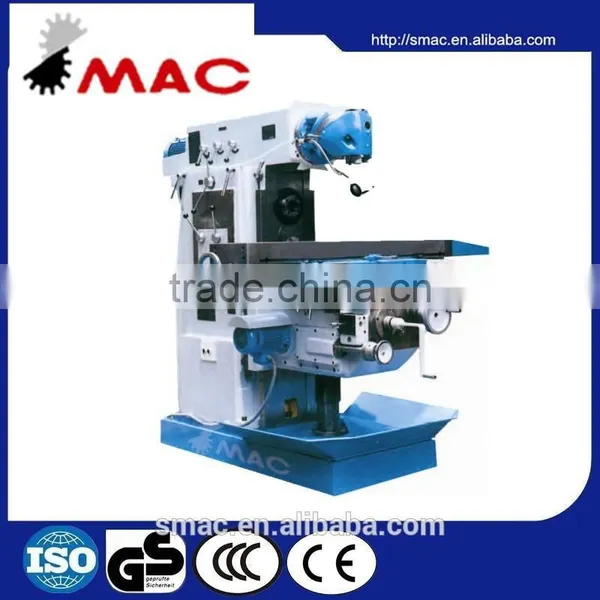

china goode new universal milling machine
