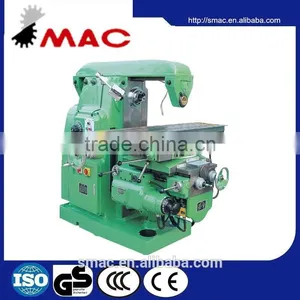

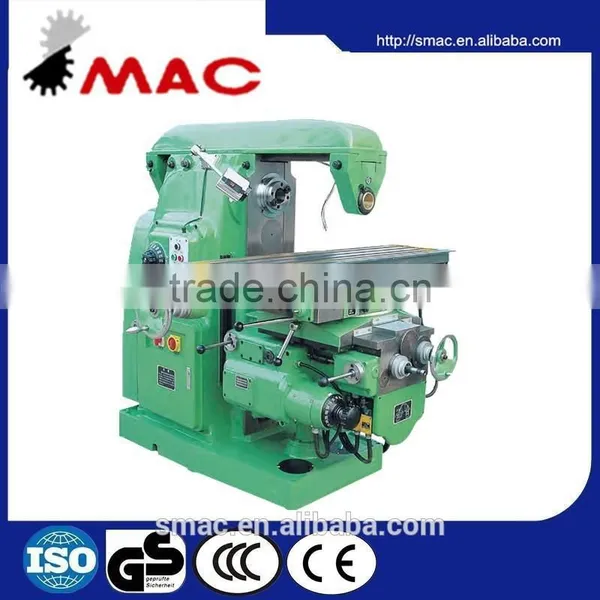

universal milling machine HUM32A
universal milling machine HUM32A
Universal Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular cutters,formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, cutter, helix groove, cam and tub wheel.
The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. Working table and slide ways adopted quality cast hardened ensure high accuracy.
Standard Accessories
Milling arbors
Tools
Draw-bolts
Manuals
Optional Accessories Universal milling head
Rotary table
Machine vice
Milling chuck collets
universal milling machine HUM32A
| Model | HUM32A | HUM32A x 16 | HUM42 | HUM32 | HUM42A | |
| Table size | mm | 320 x 1320 | 320 x 1600 | 420 x 1800 | 320 x 1320 | 425x2000/2500 500x2000/2500 |
| Longitudinal travel X | mm | 800/780 | 1024/1000 | 1200/1180 | 700/680 | 1250/1600 |
| Cross travel Y | mm | 300/280 | 300/280 | 360/350 | 225/240 | 400 |
| Vertical travel Z | mm | 410/400 | 410/400 | 460/450 | 410/390 | 400 |
| Feed speed steps | 18 | 18 | 18 | 18 | 18 | |
| Feed speed ranges: Longitudinal X | mm/min | 15-750 | 15-750 | 22.5-1180 | 23.5-1180 | 10~1250 |
| Cross Y | mm/min | 15-750 | 15-750 | 22.5-1180 | 23.5-1180 | 10~1250 |
| Vertical Z | mm/min | 5.7-280 | 5.7-280 | 8.6-420 | 8-394 | 2.5~315 |
| Min. distance between spindle center to table | mm | 235-535 | 235-535 | 30-48 | 30-350 | 70~470 |
| Spindle speed steps | 18 | 18 | 18 | 18 | 20 | |
| Spindle speed ranges | kW | 30-1500 | 30-1500 | 30-1500 | 30-1500 | 18~1400 |
| Main motor power | kW | 7.5 | 7.5 | 11 | 7.5 | 11 |
| Overall size | cm | 232 x 179 x 172 | 232 x 202 x 209 | 243 x 226 x 194 | 229 x 177 x 179 | 277/327x253x195 |
| Net weight | kg | 3300 | 3350 | 5200 | 2650 | 5050/5200 |
universal milling machine HUM32A
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to SJR Machinery Limited
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE
Our products are exported to more than 50 countries, more than 700 customers
