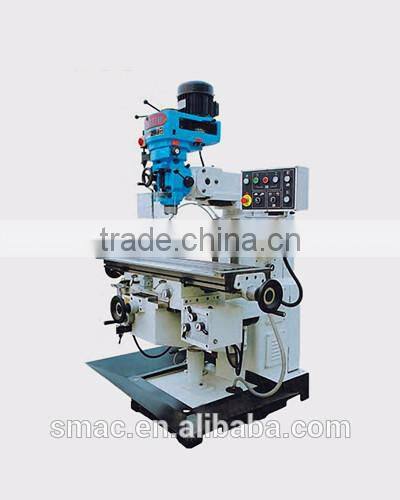

China Profect and Low Price Universal Cheap Milling Machine HVML6332W of SMAC

Name: China Profect and Low Price Universal Cheap Milling Machine HVML6332W of SMAC
Brand: SMAC
SKU: 143010702
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

SMAC

SJR Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai.china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name SMAC

Model Number HVML6332W

Type Universal

CNC or Not Normal

Voltage 380V

Power(W) 2.2kw

Dimension(L*W*H) 1500*1700*2000mm

Weight 1500/1600kg

Certification CE;ISO

Warranty 1 year

Product Description

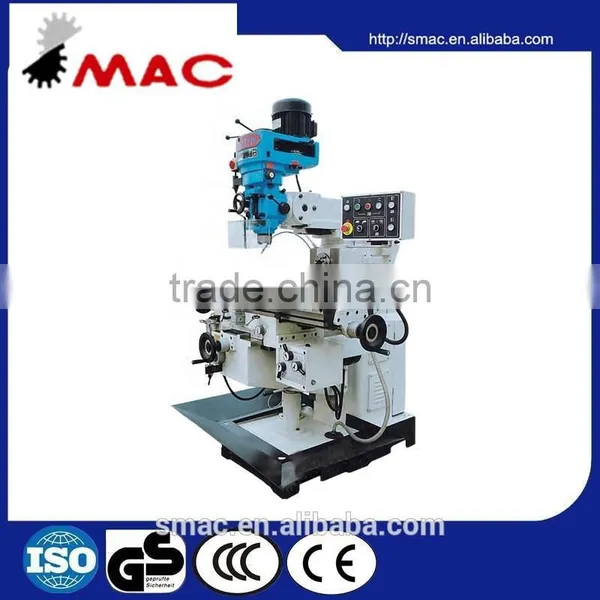

universal cheap milling machine HVML6332W

Features:
1.Easy for operatiing
2. Featured in cross work table and box table
3.Double lock of column

Features:

Rectangle table guideway

Harded and groud table surface

Automatic feeds on X, Y axis

Motorized Z axis

Headstock siwel +/-45 degree

Date

universal cheap milling machine HVML6332W

Specifications		HVML6332W
Head movement (Left to right)		+/-45 degree
Head movement (front to rear)		+/-45 degree
Max. drilling dia (mm)		50; 30
Spindle taper		M.T.4; R8; ISO30 ISO40
Max. vertical milling dia (rnm)		25
Max. boring dia (mm)		120
Max. tapping dia (mm)		M16
Distance. Main spindle to table surface (mm)		90-370
Distance horizontal spindle to table surface (mm)		0-400
Spindle speed range (r.p.m.l)(steps)	Vertical	80-5440rpm(16) 115-1750
	Horizontal	40-1300 (12)
Spindle travel (mm)		120
Feeding of quill		3 steps; 0.04, 0.08, 0.15mm/r
Table size (mm)		1250 x 320 Optional: 1370 x 320mm
Table travel (mm)		600 x 300mm Optional: 700 x 300mm
Vertical travel (mm)		280
Motor for rapind of table traverse X/Y		750W
Motor for vertical of table traverse Z		750W
Motor (kw)	Vertical	2.2
	Horizontal	2.2
Overall dimensions (mm)		1500 x 1700 x 2000
N.W./G.W.		1500/1600
