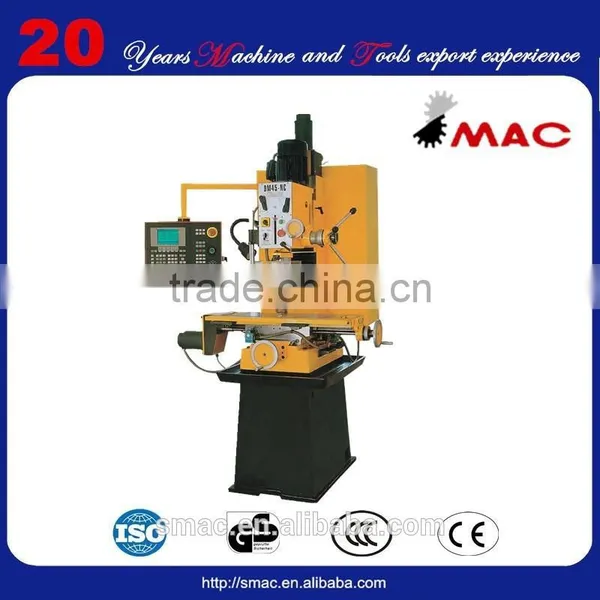

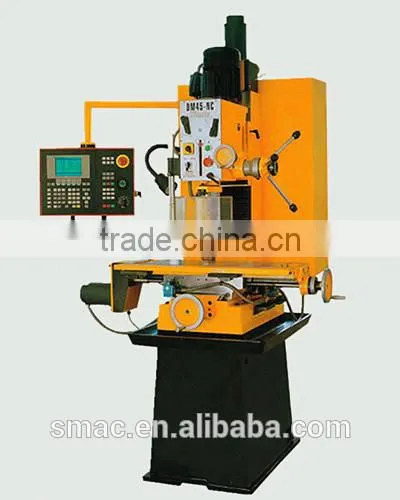

Vertical Cylinder Boring Milling Machine
Features:
DM45-NC mchine can operate with manual feed or NC program.With ball leadscrew,stepping motor for all 3 axes.
Position accuracy≤0.02mm/300mm
Reproduction accuacy≤0.01mm
With limit switch for all 3 axes
put unit 0.01mm
Feed speed 0.1.2m/min
Vertical Cylinder Boring Milling Machine
| Model | DM-45 NC |
| Max.distance Spindle to table(Z axis) | 500mm |
| Max.distance Spindle to table | 285mm |
| Working table size | 800x240mm |
| Working table cross travel | 500mm |
| Working table longitudial travel | 230mm |
| Spindle taper | MT4/MT3 or R8 |
| Spindle stroke | 120mm |
| Spindle stroke | 70-3360rpm(12step)
50-3500rpm(Vario) |
| Max. drilling capacity | F45mm |
| Max. drilling capacity | F32mm |
| Motor power | 1.1/1.5KW |
| Head tilt left right | ±90° |
| NW/GW | 700/800KG |
| Package size | 1330x1175x2220mm |
Vertical Cylinder Boring Milling Machine
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to SJR Machinery Limited
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE
Our products are exported to more than 50 countries, more than 700 customers
