Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > SG Series Saddle Moving Horizontal Shaft Grinder 13807-1

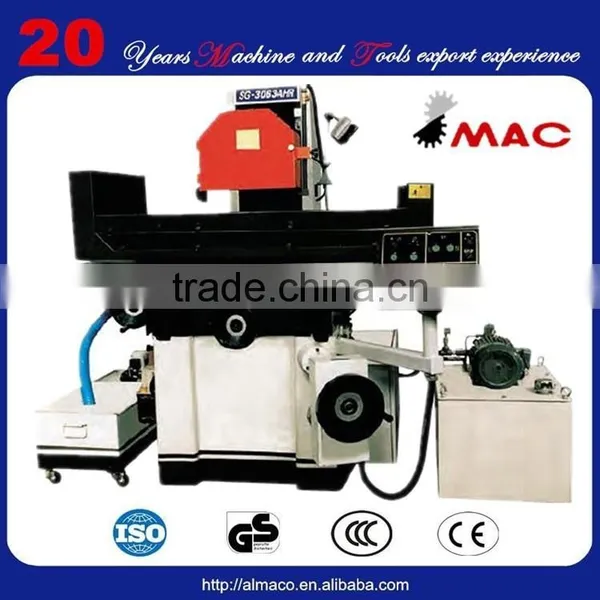

SG Series Saddle Moving Horizontal Shaft Grinder 13807-1

Name: SG Series Saddle Moving Horizontal Shaft Grinder 13807-1
Brand: SMAC
SKU: 143010438
Availability: InStock

SG Series Saddle Moving Horizontal Shaft Grinder 13807-1 thumbnail-1

SG Series Saddle Moving Horizontal Shaft Grinder 13807-1 photo-1

US$ 3,000 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

SJR Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Surface Grinding Machine

CNC or Not CNC

Max. Grinding Diameter MM

Max. Grinding Length MM

Place of Origin Jiangsu, China

Brand Name SMAC

Model Number 13807-1

Voltage 380v

Power(W) 1.5kw

Dimension(L*W*H) 178*150*218CM

Weight 1600KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

SG series saddle moving horizontal shaft grinder

1.H mean: hydraulic transmission on longitudinal, manual on transverse and vertical.
2.AH mean: auto feed on transverse, hydraulic transmission on longitudinal, manual on vertical.
3.AHR mean: auto feed on transverse, hydraulic transmission on longitudinal, rapid movement on vertical.

Detail data

SG series saddle moving horizontal shaft grinder

Description

Model

Unit

13807-1

13806-2

13805-1

13805-2

13803-1

13803-2

SG-2050AH

SG-2550AHR

SG-3063AHR

SG-30100AHR

SG-4080AHR

SG-40100AHR

SG-2050AHD

SG-2550AHD

SG-3063AHR

SG-30100AHD

SG-4080AHD

SG-40100AHD

Table size (W x L)

200 x 460

254 x 508

305 x 635

305 x 1020

406 x 813

406 x 1020

Max. longitudinal travel

510

640

765

1130

910

1130

Max. distance from spindle center to table surface

450

580

565

560

580

570

Magnetic chuck size

200 x 450

250 x 500

300 x 600

300 x 1000

400 x 800

400 x 1000

Speed of table longitudinal movement

m/min

5-20

7-23

Table transverse movement

Auto feed

0.1-8

Rapid seed

mm/min

990

Feed of handwheel

mm/div.

0.02

Wheelhead vertical movement

Auto feed

mm/stroke

0.005, 0.01, 0.02, 0.03, 0.04, 0.05 (AHD)

Rapid seed

mm/min

460 (AHR, AHD)

Feed of handwheel

mm/div.

0.01 (AH) 0.005(AHR, AHD)

Grinding wheel

Speed

rpm

2850

1450

Size (OD x W x ID)

200 x 20 x 31.75

350 x 40 x 127

400 x 40 x 203

Motor of spindle

1.5

7.5

Max. loading capacity of table (include magnetic chuck)

120

180

270

400

500

600

Total rated power

8.5

10.5

Height of machine

1675

1890

Floor space (L x W)

1800 x 1400

2650 x 2150

2800 x 2200

4400 x 2200

3600 x 2400

4400 x 2400

Gross weight

1700

2200

2700

3500

3800

4300

Package dimensions (L x W x H)

1680 x 1500 x 2155 (AH) 1900 x 1700 x 2155 (AHD)

2170 x 2120 x 2130

2350 x 2220 x 2130

2950 x 2220 x 2150

2850 x 2270 x 2150

2950 x 2270 x 2180

Engineer Team

Professional Engineer Team Especially for the

rectangular table surface grinder

***********************************************************************

Our Advantage

rectangular table surface grinder

1.More than twenty years experience of industry products

2.All models with CE , TUV, SGS , ISO9001/9002 OR other authority approved

3.High reputation around the world

4.Professional service and technology support

5.Competitive price with better quality, even the best

6.Final exported products would pass the strict test processing by 3rd international authority BIVAC

7.There is more exporting experience for 20years with our owned manufacture/company

Our Services

rectangular table surface grinder

1.Your inquiry will be replied in 24 hours

2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6 years. And there is more industry technology experience for 20years with our manufactures

3.To offer free spare parts and service within one year of warranty

4.Technology Support Provide operation video for training

5.Professional after-sales service team

6.Give reasonable offers with the best quality

Packaging & Shipping

rectangular table surface grinder
