Product Details
| Place of Origin | Jiangsu, China | Brand Name | SMAC | |
| Model Number | M618A | Rated Voltage | 2HP/2P kw | |
| Weight | 720kgs |
Product Description
Specifications
GrinderThe machine can grind various surfaces and complicated profiles.
Grinder
Features:
The machine can grind various surfaces and complicated profiles. It is especially suitable for the cases which needn power feed.
The spindle and leadscrew is imported. Which possesses high precision and long life.
Mutiple labyrinth seal is used on spindle quill. It is water-proof and dustproof.
Rolling ball guideway is used on longitudinal direction. It is light, convenient and flexible.
Double v type guideways, which coated with rucite-bre used on crosswise.
They possess good guideness and smooth movement.
Vertical handwheel is fixed on bed which is convenient for users to operated.
Manual oil pump lubricates all moveable parts centrally.
Standard Accessories
Wheel (200 x 13 x 31.75) 1
Balancing arbor 1
Hoisting set 1
Monkey spanner 1
Wheel chuck 1
Wheek dresser 1
Levelling screw and block 3
Tool box and special wrench 1
Illumination lamp 1
Coolant system 1
Optional Accessories
Permanent magnetic chuck 1
Dust collector 1
Wheel balancing stand 1
Cooling and dust collecting equipment 1

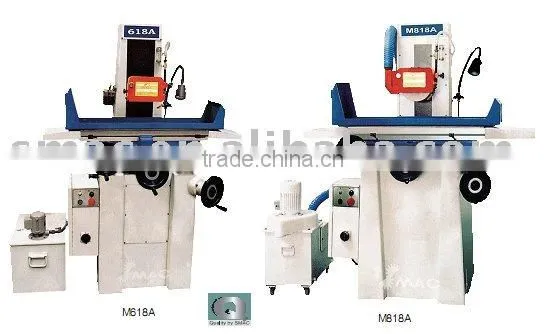

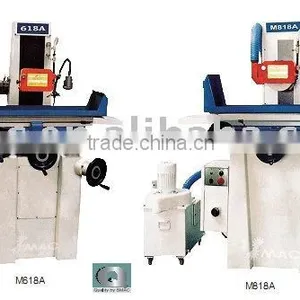

Item | Model | Unit | 13807 | 13808 | ||
M618A | M818A | |||||
Max. width to be ground | mm | 165 | 220 | |||
Max. length to be ground | mm | 470 | ||||
Max. height to be ground | mm | 350 | ||||
Table size | mm | 150 x 460 | 210 x 450 | |||
Max. distance from table surface to spindle center | mm | 450 | ||||
Feed of vertical handwheel | Per rev | mm | 1 | |||
Per div | mm | 0.005 | ||||
Grinding wheel size (OD x W x ID) | mm | 200 x 13 x 31.75 | ||||
Spindle speed | r/min | 60Hz: 3450 | 0Hz: 2850 | |||
Power of spindle motor | kw | 2HP/2P | ||||
Machine weight | kg | (About) 720 | (About) 800 | |||
Package dimension (L x W x H) | mm | 1153 x 1373 x 1970 | 1153 x 14131 x 1970 | |||
