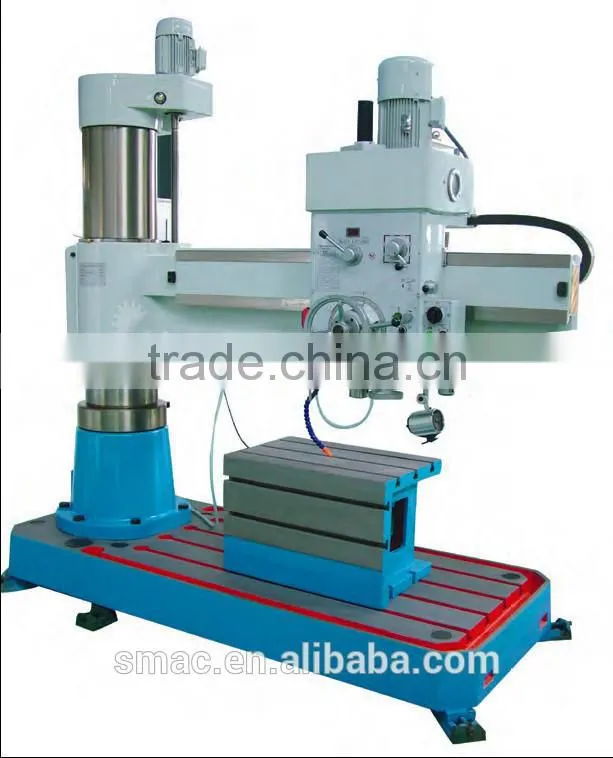

the best sale and low cost chinese frequency conversion radial drilling machine ZB3080*25 of china of SMAC
- 29 Set / Sets per Month
- shanghai.china
- T/T L/C
You May Like
-
the hot sale and low cost radial drilling machine RD8020 of china of SMAC
-
the best sale and low cost china frequency conversion radial drilling machine ZB3080*20 of china of SMAC
-
the hot sale and low cost new multi spindles machine RD4016 of SMAC of china
-
the best sale and low cost new frequency conversion radial drilling machine ZB3060*16 of china of SMAC
-
drilling & milling machine of china of smac
-
Radial drilling machine
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Jiangsu, China | Brand Name | SMAC | |
| Model Number | ZB3080*25 | Voltage | 380V | |
| Power(W) | 7.5kw | Dimension(L*W*H) | 3590*1250*3530mm | |
| Weight | 7400kg | Certification | CE;ISO |
Product Description

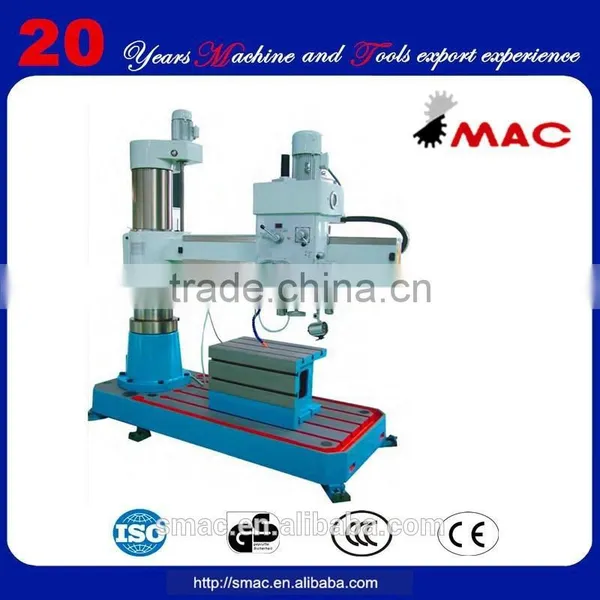

chinese frequency conversion radial drilling machine ZB3080*25
Specifications
1.multi-spindle drilling machine
2.flexible reliable
3.perfect feature
4.high precision
5.Z3080 raidal drilling machine
chinese frequency conversion radial drilling machine ZB3080*25
| Model | ZB3060x16 | ZB3080x20 | ZB3080x25 | |
| Max.drilling diameter(on Medium-carbon steel) | mm | Ø62 | Ø80 | |
| Max.drilling diameter(on cast iron) | mm | Ø72 | Ø105 | |
| Max.tapping diameter(on Medium-carbon steel) | M46 | M52 | ||
| Max.tpping diameter(on cast iron) | M52 | M60 | ||
| Max.distance from spindle to generating line of colum | mm | 350-1600 | 450-2050 | 450-2550 |
| Distance of horizontal movement for spindle box(manual) | mm | 1250 | 1600 | 2100 |
| Max.distance between spindle endto the worktable surface of the base | mm | 350-1250 | 400-1620 | |
| Max.travel of the spindle | mm | 315 | 400 | |
| Spindle taper bore | MT.5 | MT.6 | ||
| Spindle speed step | Stepless | Stepless | ||
| Spindle speed range | r/min | 38-275,275-2000 | 30-220 / 192-1400 | |
| Spindle feed steps | 8 | 8 | ||
| Spindle feed range | mm/r | 0.06-1.00 | 0.06, 0.09, 0.15, 0.23, 0.36, 0.60, 0.90, 1.38 | |
| Speed of rocker arm up and down movement | m/min | 1.2 | 1 | |
| Rotation angle of rocker arm. | degree | ±180 | ±180 | |
| Distance of spindle movement for calibrated dial each revolution | mm | 122 | 151 | |
| Power of main motor(tranducer motor) | KW | 4 | 7.5 | |
| Power of motor for rocker arm up and down movement | KW | 1.7 | 2.2 | |
| Power of oil pump motor for spindle box,column and rocker arm clamping | KW | 0.75 | 1.1 | |
| Weight of machine | Kg | 3800 | 6800 | 7400 |
| Machine dimension(LxWxH) | mm | 2490x1000x2508 | 3090x1250x3460 | 3590x1250x3530 |
chinese frequency conversion radial drilling machine ZB3080*25
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to SJR Machinery Limited
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE
Our products are exported to more than 50 countries, more than 700 customers
