32 Station HP-M300 CNC Turret Punch Machine

Name: 32 Station HP-M300 CNC Turret Punch Machine
Brand: SMAC
SKU: 143010000
Availability: InStock

32 Station HP-M300 CNC Turret Punch Machine thumbnail-1

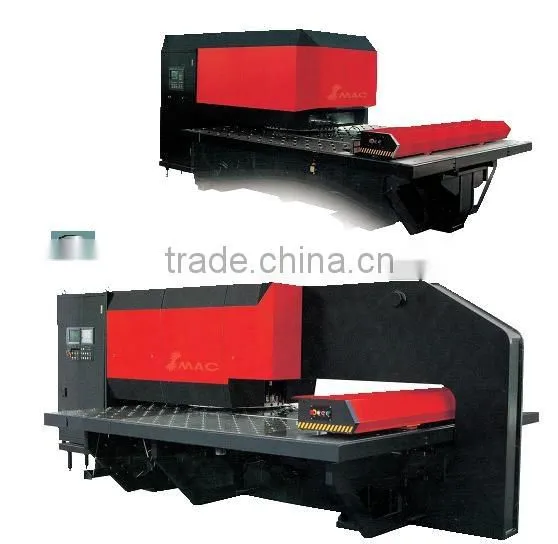

32 Station HP-M300 CNC Turret Punch Machine photo-1

US$ 50,000 - 80,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Power Source:

Other, Mechanical, machanical

Contact Supplier Request Quote Chat Now

SJR Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Power Source Other, Mechanical, machanical

Place of Origin Jiangsu, China

Brand Name SMAC

Model Number HPM-300

Voltage 380v

Weight 14 ton

Dimension(L*W*H) 600*2800*2300

Certification CE ISO, CE,ISO,BV,CE/ISO9001

Warranty 1 year warranty

After-sales Service Provided Engineers available to service machinery overseas

Product Description

32 station HP-M300 CNC Turret Punch Machine

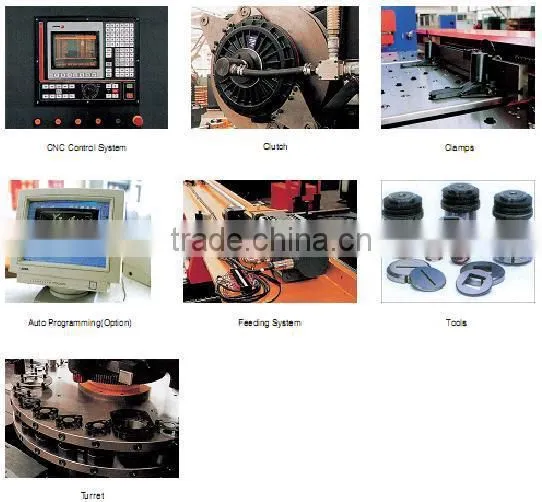

Main components instruction:

1, hardware instruction

CNC system, ball screw, linear guide, servo system, hydraulic power system, magnetic valve, cylinder, proximity switch, power supply, mould, float clamp, automatic programming.

1) it adopts high precision thicken turret which is made by wear-resistant material subtly. Using long-guide mould assures the alignability, which enlarges the mould life.

2) It adopts the original CNC system of SIMENS from Germany with standard RS232 interface, language changing between Chinese and English, powerful diagnostic function and universal G-code programming.

3) It adopts digital AC servo motor to assure operating speed and running smoothly, long time precision and high reliability.

4) Hydraulic power system is imported from Germany to assure the machine power performance and reliability. Low noise, less heat and energy-saving.

5) It adopts standard full float clamp, which is up-down structure to avoid material twisting and transmutation and moved conveniently. It uses brush steel ball compositive worktable. Plate can be processed smoothly and no noise, no scratch.

2, software instruction

Computer automatic programming system—Autosoft

AutoSoft is a new generation automatic programming marking system, which is researched and devised by ourselves based on learning of the same kind foreign programming advantages in order to improve programming quality and efficiency of CNC punching machine, shearing machine and punching and shearing compounded machine. This software is suitable for both imported and domestic CNC system with high general usage. Processing code and information can be formed automatically according to different CNC system of foreign and domestic.

3, The system function:

Graphics design and edit.

Mould system operation.

High automation: automatic choosing mould, automatic repeat location, automatic optimization, route optimization.

Manual intervention: adjusting and changing mould, choosing partial for processing, compensating direction, processing order, processing craftwork changing, stop and connection, adjusting punching location of cylinder repeating.

AUTOCAD interface function: Drawing designed by AUTOCAD can be accepted by this system and form processing program without any treatment.

Automatic marking system: It can mark hardware in order according to processing plan and modify marking drawing manually according processing requirement.

Parameter adjustment: parameter can be adjusted according to machine requirement like: clamp position, tiny joint size, processing range, reference point, stations, rotary station, clamp confirmed area size, graphic tolerance, smashing size, cylinder distance, distance between punching head and cylinder, punching arc mould size, out punching contour mould size, and so on.

Stations number	Tooling diameter rang		Tooling number
24 stations	Φ88.9-Φ32	Φ7/2-Φ5/4	4
32 stations	Φ32-	Φ5/4	20
32 stations	Φ88.9-Φ32	Φ7/2-Φ5/4	4
	Φ32-	Φ5/4	28

Specification	Unit		HP-M300
punch force	KN	KN	300	300
Max. sheet working size	mm	in	1250 x 2500	50 x 100
Max. sheet working welth	kg	lb	150	330
max. sheet thickness	mm	in	6.35	0.254
Max. Punch diameter	mm	in	Φ88.9	Φ3.56
Number of tool stations			24, 32	24, 32
Positionzing repetability	mm	in	0.1	0.004
Max. hit speed	hpm	hpm	300	300
Pax. traversing speed	m/min	in/min	56	2240
Turret rotation	rpm	rpm	30	30
Axis number			3	3
Compressed air pressure	mpa	mpa	0.6	0.6
Shipping dimensions	mm	in	500 x2680 x2175	20x107.2 x87
Machine weight	ton	lb	13	28600
