Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Floor Type Boring And Milling Machine Hot Sale High Precision

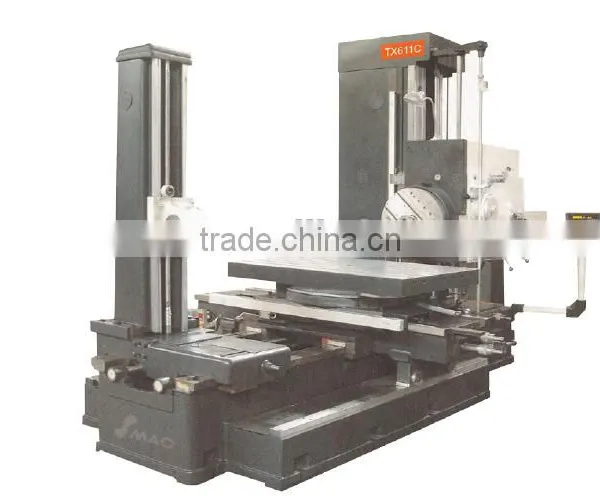

Floor Type Boring And Milling Machine Hot Sale High Precision
US$ 1,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMAC High Quality and Well Design Digital Boring MachineryNegotiableMOQ: 1 Set -
SMAC High Quality and Well Design Cnc Horizontal Boring MachineNegotiableMOQ: 1 Set
-
SMAC High Precision and Well Selling Cnc Horizontal Boring MachineNegotiableMOQ: 1 Set
-
SMAC High Quality and Well Cnc Boring MachineryNegotiableMOQ: 1 Set
-
SMAC High Quality and Well Precision Digital Boring MachineryNegotiableMOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Automatic
Max. Swing Diameter
mm
Place of Origin
Jiangsu, China
Brand Name
SMAC
Model Number
T(P)X Series
Voltage
380V/220V/400V
Power(W)
7.5kw or 15kw
Dimension(L*W*H)
4922X2214X3770mm;9970x2932x4075MM
Weight
18900-35100KGS
Certification
CE, ISO
After-sales Service Provided
Engineers available to service machinery overseas

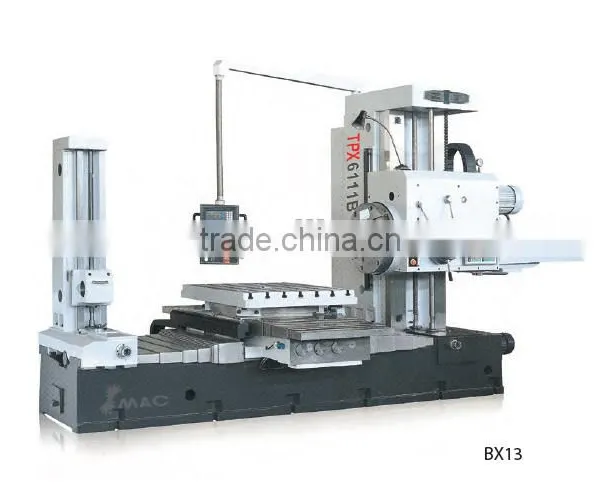

FLOOR TYPE BORING AND MILLING MACHINE
Standard Accessories
Tool bar
Ditto
Milling tool bar
Short handle
Wedge bolck
Long handle
Tool holder for facing head
Boring bar bearing
Precise hexagon nut
Foundation bolt
Finishing washer
Hand driven grease gun
Optional Accessories
Milling toolholder for facing head
Change gear
Boring tool
Versatile boring toolholder
Boring toolholder for facing head
Short toolholder for facing head
Long toolhoder for facing head
Bend Plated
Step-type Press Plate
| Model | 14716 | 14717 | 14718 | 14719 | 14720 | |
| T(P)X6211 | T(P)X6211x30 | T(P)X6211x59 | T(P)X6213 | T(P)X6213x56 | ||
| Boring spindle diameter | mm | 110 | 130 | |||
| Spindle taper | Norse No 6 | Morse 80 | ||||
| Max.spindle torque | N.m | 1225 | 3136 | |||
| Max.spindle thrust | N | 12250 | 31360 | |||
| Max.traverse of boring spindle | mm | 600 | 9900 | |||
| Number of spindle speeds | 22 | 24 | ||||
| Range of spindle speeds | r/min | 8-1000 | 4-800 | |||
| Travel of headstock | mm | 1600 | 1600 | |||
| Travel of facing slide | mm | P:180 | P:250 | |||
| Range of spindle, headstock and table feeds pet spindle revolution |
mm/rev | 0.04-6/0.01-1.88 | 0.05-8 / 0.01-2 | |||
| Travel of main drive motor | mm | 2200 | 3000 | 5900 | 2850 | 5650 |
| Power of main drive motor | kw | 7.5 | 7.5 | 7.5 | 15 | 15 |
| Overall dimensions (LxWxH) | mm | 4922x2214x3770 | 6022x2214x3770 | 8852x2214x3770 | 6030x2932x4075 | 9970x2932x4075 |
| Weight | kg | 18900 | 20000 | 25000 | 27600 | 35100 |
