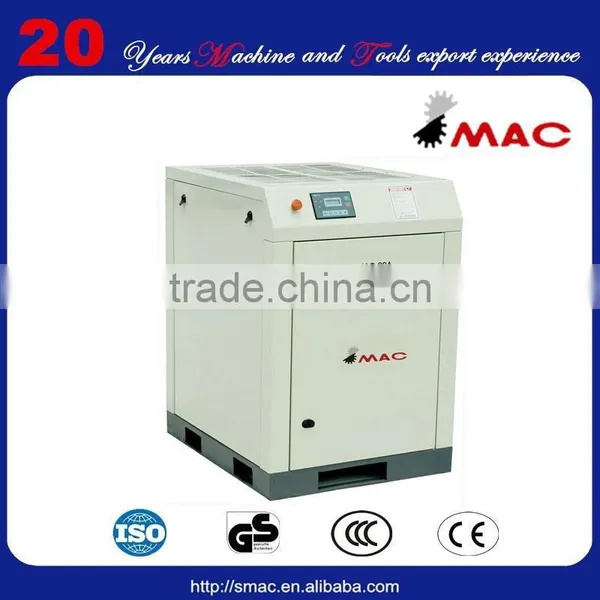

22KW 30HP Stationary Rotary Screw Compressor SMAC-22AZ

stationary rotary screw compressor

POWER(KW):22

POWER(HP):30

NOISE DB(A):69+/-2

AIR PIPE(INCH):G1 1/4

FDA/PRESSURE(M3/MIN/MPA):3.8/0.7    3.5/0.8

VOLTAGE/HZ(V/HZ):380V/3PH/50HZ OR CUSTOMIZED

START MODE:5.5A/7.5A ARE DIRECT START ,ABOVE 11A IS Y-ΔSTART

AMBIENT TEMP (° c ): -5 °c ~+45 °c

DISCHARGE TEMP (°c ): AIR COOLING<AMBIENT TEMP+8 °c

WEIGHT(KG) :620

DIMENSION(MM): 1380*850*1145

COOLING AIR CAPACITY(M3/MIN):100

stationary rotary screw compressor

Model: SMAC-22AZ

The application field of this stationary electric screw air compressor

stationary rotary screw compressor

Model: SMAC-22AZ
