Chain for Beverage Machinery DP Series Bottle Inverse Sterilizer Machine/beverage filling /bottling equipment
- 10000 Meter / Meters per Month
- shanghai ningbo
- T/T L/C D/P D/A Credit Card PayPal
- Hand tool parts castings
- OEM/ODM steel air tool parts / needle bar bushing
- air chuck,air accessory,pneumatic tool parts
- Air conditioner parts develop stamping tooling die
- Investment Casting Pneumatic tools accessories with Stainless Steel and Alloy Steel Materials
- customized high quality Milling Tools
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Gelin | Model Number: | DP series |
Product Description

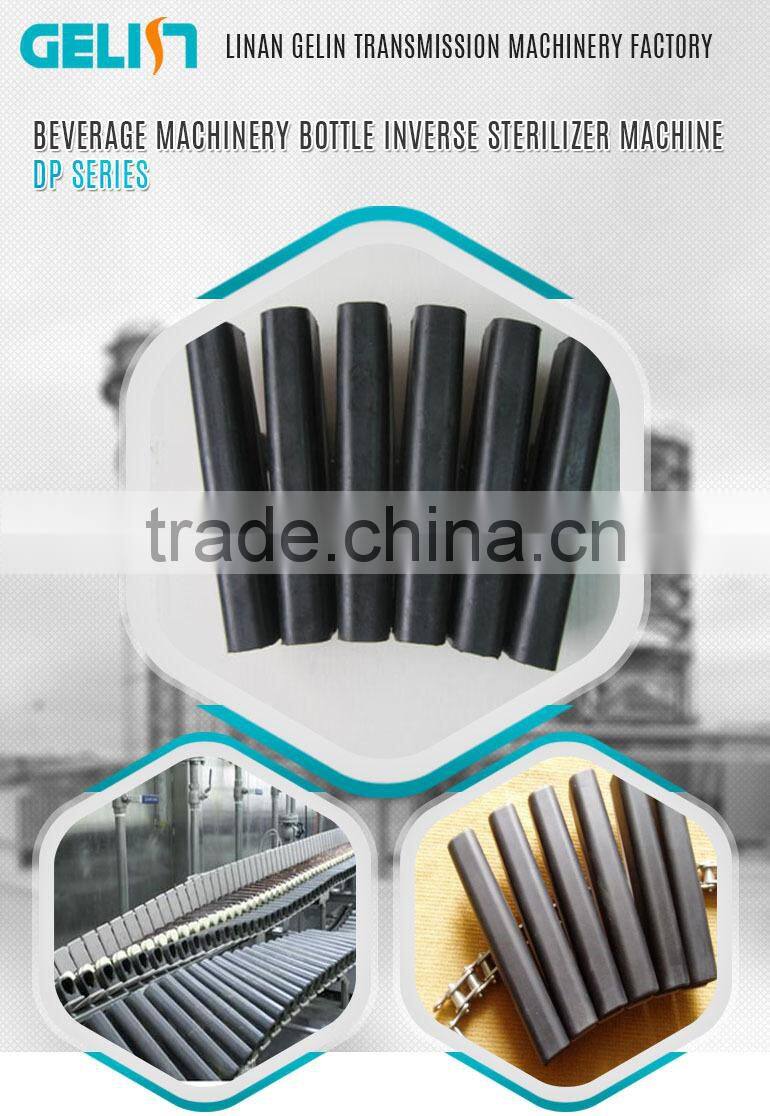

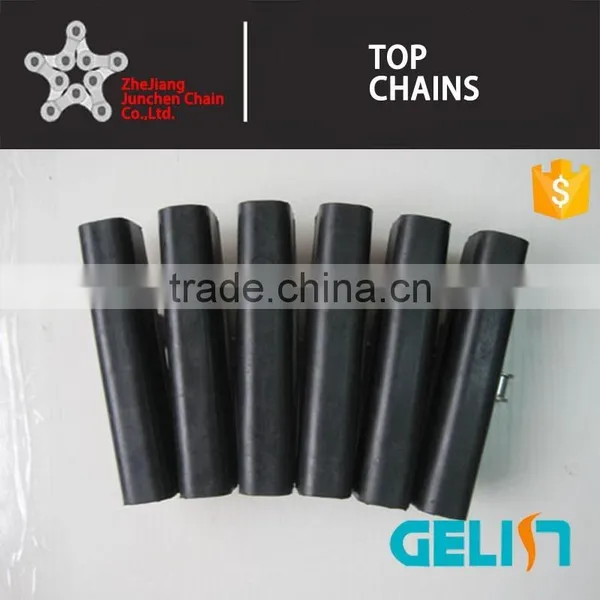

Chain for Beverage Machinery DP Series Bottle Inverse Sterilizer Machine/beverage filling /bottling equipment

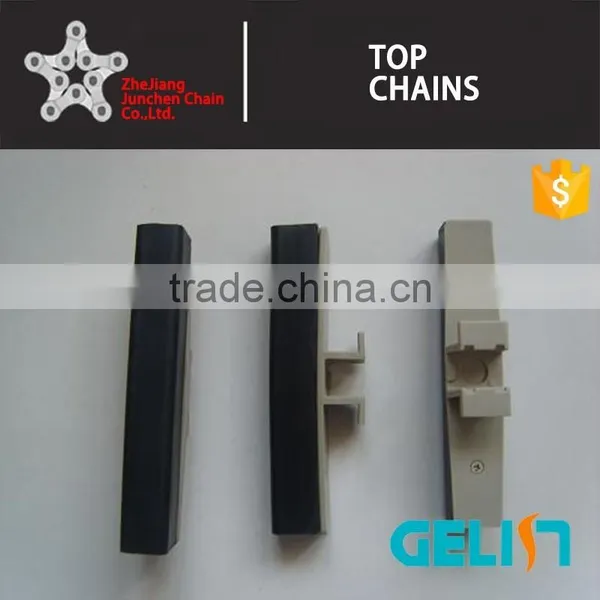

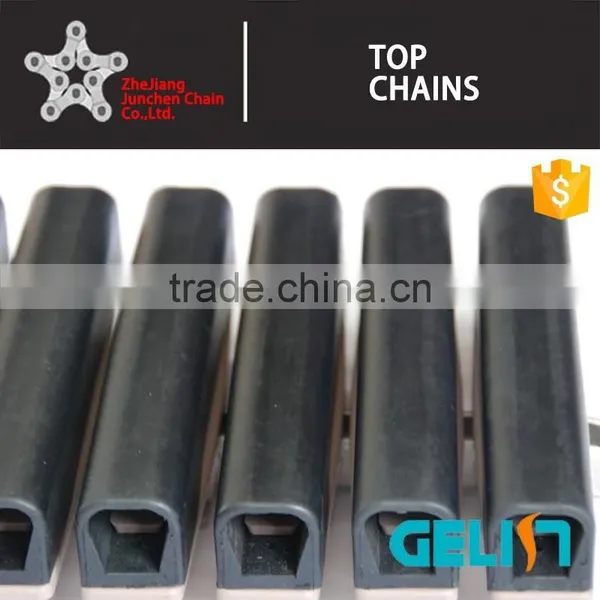

Temperature range: -40°~90° Plates material: POM

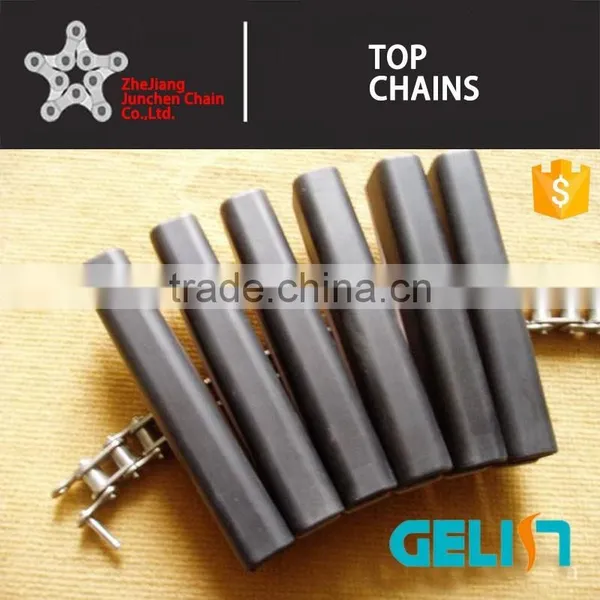

Color: brown Roller base chain: standard 12A roller chain
Supply unit:1.524mtr (5ft) Max speed: 80m/min lubrication 50m/min dry
Working load: 3200N (mat.: CS), 1600N (mat.: SS) Packaging:1.524m/pc
Plates material: stainless steel or carbon steel
Max conveying length: 30m (mat.: CS), 24m (mat.: SS)

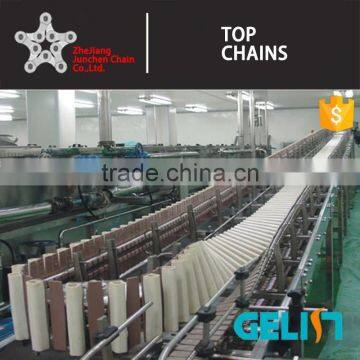

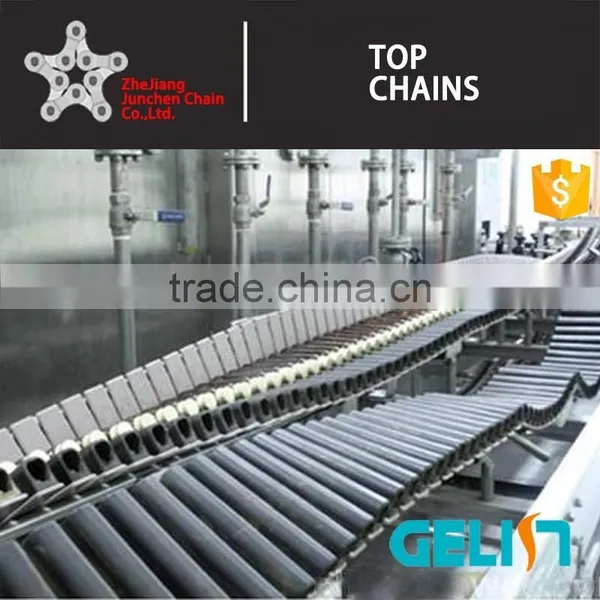

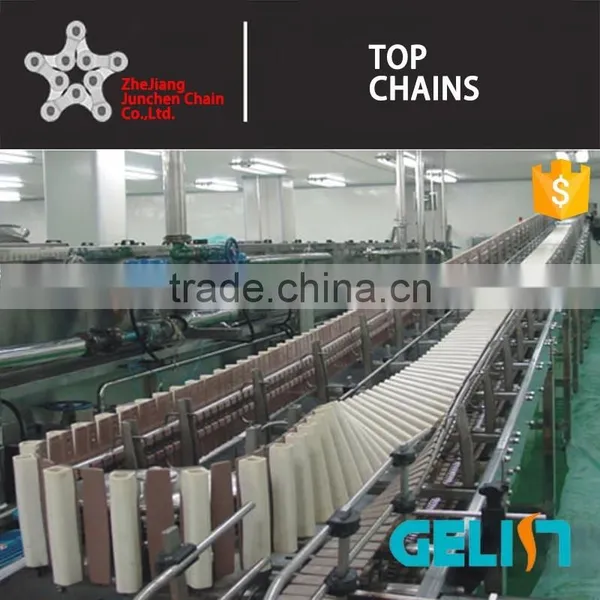

Main application : for vertical conveying of cans, glass bottles, etc..

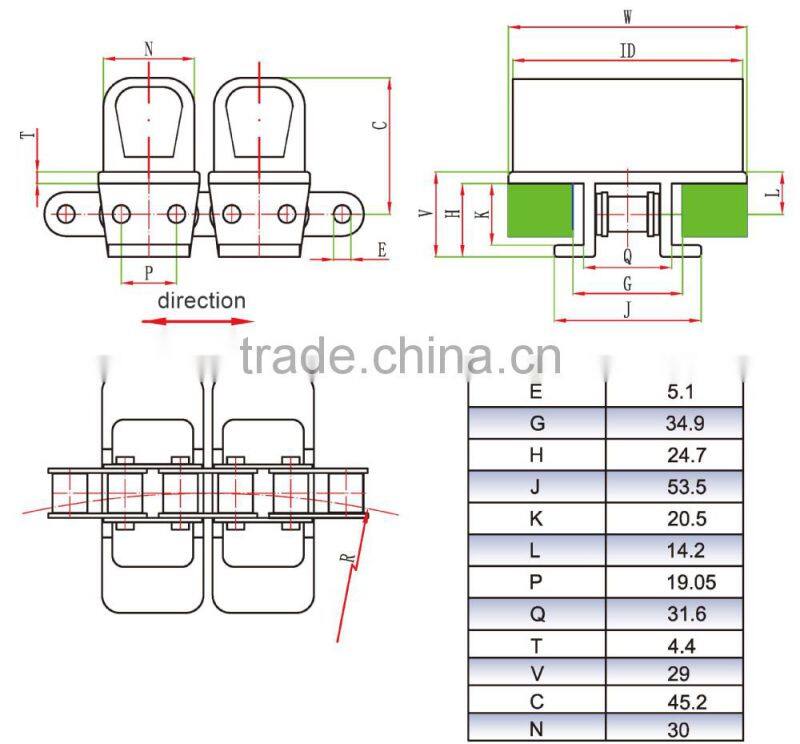

Code | WW Plates width | ID rubber width | Weight | Backfle×R | Min. Radius | |
c | ss | mm | mm | Kg/m | mm | mm |
1873-D-K325 | 1873ss-D-K325 | 82.6 | 80 | 2.9 | 150 | 356 |
1873-D-K600 | 1873ss-D-K600 | 152.4 | 152 | 4.1 | 150 | 457 |
1873-D-K750 | 1873ss-D-K750 | 190.5 | 186 | 4.5 | 150 | 457 |
Packaging:
• Inner packing :pack in paper box
• Out packing: Cartons or wooden pallet
• Suitable for sea and inland shipment
• As customers' request
1. GELIN chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
Lin'an Gelin Transmission Machinery Factory is a private joint-stock company. Our company lies in the west of Hangzhou, nears the beautiful Hengfan Town, with No.06 Provincial Road running through.
Our products are widely used in concrete, electric power, metallurgy, mine, sea port and other places. In 1996, we introduced advanced technology to produce machines by ourselves and got good praise from customers. Our products have been exported to many countries and regions. Our company puts quality in the first place. We welcome all the customers to come and visit us.
Q: Are you a manufacture or a trading company?
Gelin is a chain factory for 20 years.
Zhejiang Junchen Chain Co.,Ltd is a part of Gelin especial for foreign customer.
Q:Which port do you near about?
Gelin is located in Hangzhou, Zhejiang ,3 hours drive to Ningbo port and Shanghai port.
Q:Does your factory customize basing on the drawing?
Yes, Gelin has a professional technical team for customize.
Q:What should I provides in order to get a accurate price?
We need drawings. If no ,please send me some data or I can provide some for choose.
Q:Can I have samples before place an order?
Yes ,you can .we have cooperation with UPS,TNT,FEX express.
Q:What is your payment,how can we pay you?
You can use TT,L/C at sight ,Paypal and western union.
