Reinforced Industrial Plastic Wire Carrier Cnc Cable Drag Chain Manufacturer
- shanghai ningbo
- T/T L/C D/P D/A
You May Like
-
TLG Galvanized Steel Wire Carrier Electric Cnc Cable Drag Protection Chain
-
TLG Closed Type Galvanized Steel Cable Drag Chain
-
CNC Plastic Lone Life Nylon Protect Wire Carrier Electric Cable Drag Chain
-
High Speed Cnc Cable Chain Flexible Plastic Electric Pipe Made in China Bridge Type Cable Wire Tracks Drag Chains
-
Transmission Chains Big Size Conveyor Chain With Attachment Double Pitch Roller Chain(A Series)
-
Simplex Short Pitch Precision Alloy Steel Roller Chains (B Series)
Product Details
| Material | pa66, reinforced nylon PA66 | Brand | Gelin | |
| Model | LX56 TP |
Product Description
Specifications

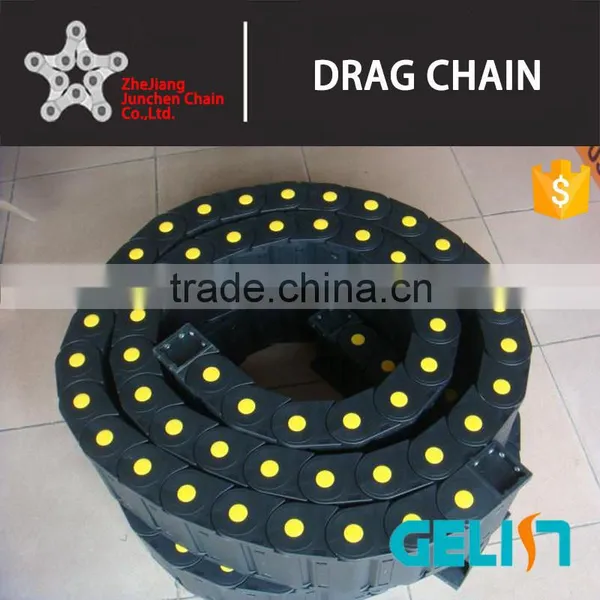

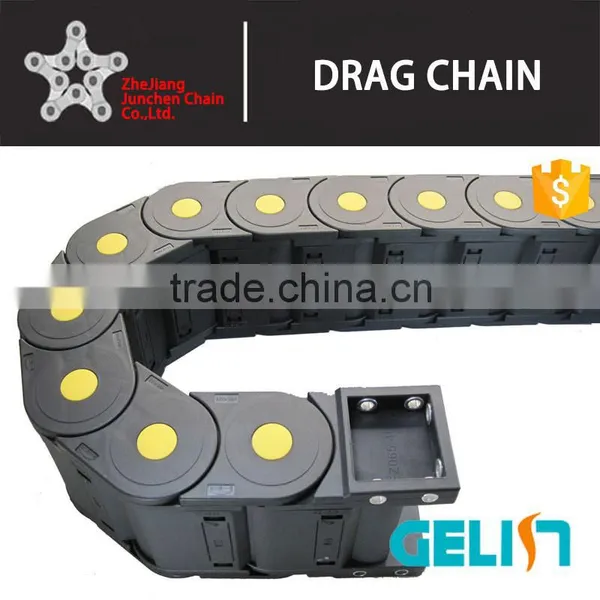

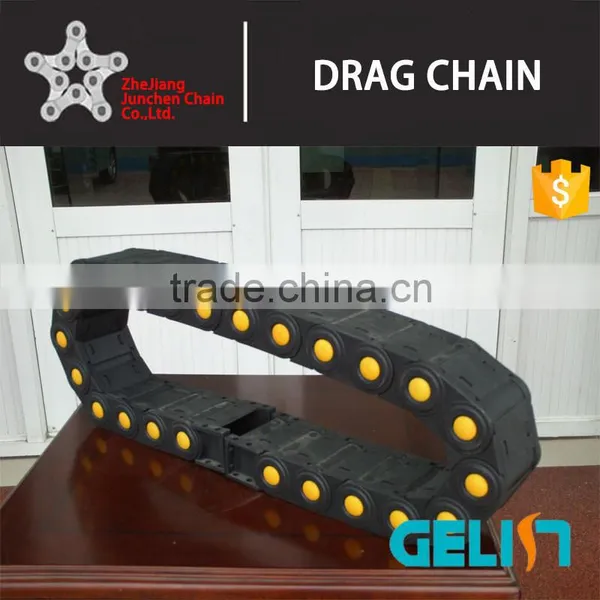

LX56 SERIES Cable Drag Chain.
1Open easier,convenient to install and maintain.
2.Protect the wire
3.passed ISO:CE

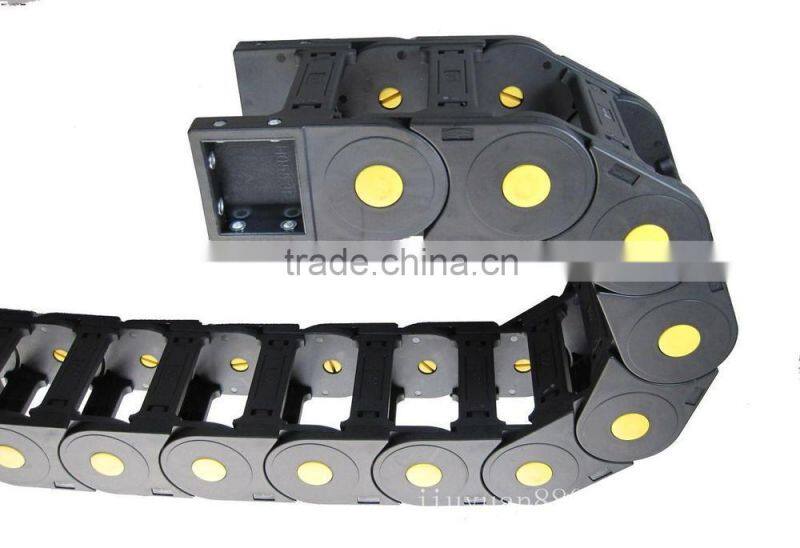

LX56 All closed weight bearing industrial plastic wire carrier cnc cable drag chain manufacturer
1.Material: import engineering plastic, reinforced nylon, has the high pressure and tensile load
2.Resistance to patience: oil resistance, salt resistance, resistance to abrasion, impact resistance, high strength, suitable for fast moving,
3.Convenient: light weight, by YiJieJie composition, can adjust length, dismantling is convenient, more kinds of bending radius
sizes for reference
| engineering plastic cable carrier systems | ||
| Model | inside height*inside width | bending radius(mm) |
| TP07 | 7*7 | 28 |
| TP10 | 10*10 | |
| 10*15 | ||
| 10*20 | ||
| TP15 | 15*15 | 28;38 |
| 15*20 | ||
| 15*30 | ||
| 15*40 | ||
| 15*50 | ||
| TP18 | 18*18 | 38;40;48 |
| 18*25 | ||
| 18*35 | ||
| 18*40 | ||
| 18*50 | ||
| Weight bearing cable carrier systems | ||
| Model | inside height*inside width | bending radius(mm) |
| TEZ25 | 25*25 | 55;75;100;125;150 |
| 25*38 | ||
| 25*50 | ||
| 25*57 | ||
| 25*77 | ||
| 25*103 | ||
| TEZ35 | 35*50 | 75;100;125;150;175;200;250 |
| 35*75 | ||
| 35*100 | ||
| 35*125 | ||
| 35*150 | ||
| 35*175 | ||
| TEZ45 | 45*50 | 75;100;125;150;175;200;250 |
| 45*75 | ||
| 45*100 | ||
| 45*125 | ||
| 45*150 | ||
| 45*175 | ||
| TEZ56 | 56*100 | 150;200;250;300;350;400;500 |
| 56*125 | ||
| 56*150 | ||
| 56*175 | ||
| 56*200 | ||
| 56*250 | ||
| TEZ65 | 65*100 | 150;200;250;300;350;400;500 |
| 65*125 | ||
| 65*150 | ||
| 65*175 | ||
| 65*200 | ||
| 65*250 | ||
| TEZ80 | 80*100 | 200;250;300;350;400;500 |
| 80*125 | ||
| 80*150 | ||
| 80*175 | ||
| 80*200 | ||
| 80*250 | ||
| 80*300 | ||
| we also have the steel material cable carrier systems , many size for your choosing , if you need the cable carrier systems in special applications,here recommend you the steel type | ||
packaging details : plastic tlz 35 series cable drag chain will be Loose packing in HDP bags packed in corrugated cartons by caerd.
Delivery Time: 30 DAYS
1. GELIN chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
Lin'an Gelin Transmission Machinery Factory is a private joint-stock company. Our company lies in the west of Hangzhou, nears the beautiful Hengfan Town, with No.06 Provincial Road running through.
Our products are widely used in concrete, electric power, metallurgy, mine, sea port and other places. In 1996, we introduced advanced technology to produce machines by ourselves and got good praise from customers. Our products have been exported to many countries and regions. Our company puts quality in the first place. We welcome all the customers to come and visit us.
Q: Are you a manufacture or a trading company?
Gelin is a chain factory for 20 years.
Zhejiang Junchen Chain Co.,Ltd is a part of Gelin especial for foreign customer.
Q:Which port do you near about?
Gelin is located in Hangzhou, Zhejiang ,3 hours drive to Ningbo port and Shanghai port.
Q:Does your factory customize basing on the drawing?
Yes, Gelin has a professional technical team for customize.
Q:What should I provides in order to get a accurate price?
We need drawings. If no ,please send me some data or I can provide some for choose.
Q:Can I have samples before place an order?
Yes ,you can .we have cooperation with UPS,TNT,FEX express.
Q:What is your payment,how can we pay you?
You can use TT,L/C at sight ,Paypal and western union.
