91A Hydraulic Metal Hole Punch Machine Tools Hydraulic Hose Crimping Machine hose crimper
Notice:we are factory,do the export now. we have a lot of cooperation company in our domestic market. Now we want to export it directly. I hope to have long term cooperation with different country clients.Please feel free to contact me!
Brief Introduction of hose crimping machine
The hydraulic hose crimping machine is mainly used for buckling processing for hydraulic rubber hose assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends. This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale.It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
Technical Parameters of hose crimping machine
Type | FY-91A |
Crimping range | 1/8"-2" 4SP |
Voltage&Motor | 380V/3KW |
Opening without dies | 119mm |
Opening | ≥25mm |
Hose crimping force | 5300KN |
Open time | ≤1.5s |
Close time | ≤7s |
No. of standard die set | 10 Sets |
Pump | 14.5L/min |
Noise Level (dB) | ≤75 |
Systematic pressure | 30Mpa |
Systematic pressure | 12Mpa |
Outside measurement (mm) | 800*630*1300 |
Weight (KGS) | 300 |
Packing of hose crimping machine
our shipping:

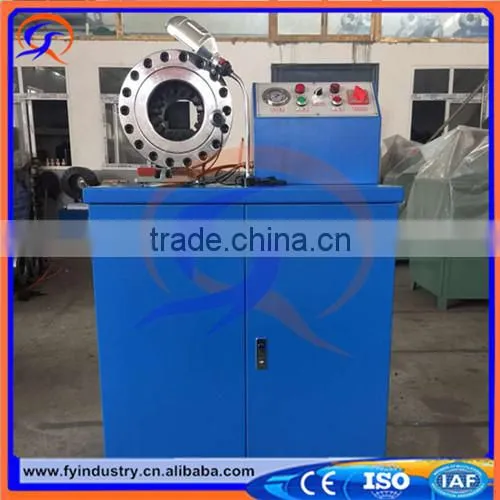

Finished production FY91A hose crimping machine
We also supply other type machine,if you are in need,you can order together:
All of our machine has 3 Years Warranty. If any quality problem. Money back guarantee.
We also pay attention for our Packing.We supply 3 ways Packing which can protect goods for Long Distance.
Professional Ship agent servie is always being provided. You can choose FOB,CIF,CNF,EXW, DDU,DDP, etc.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
If it is your first time to import, our professional shipping agent can guide you easily.
We want to have long and more cooperations with you,so the informations all I gave are real.And let you know our real situation.
Feel free contact Donl Gao if any questions and the best service will be offered !
