hydraulic hose crimping machine price for air suspension crimping machine crimper hose
Notice:we are factory,do the export now. we have a lot of cooperation company in our domestic market. Now we want to export it directly. I hope to have long term cooperation with different country clients.Please feel free to contact me!
Brief Introduction of hose crimping machine
The hydraulic hose crimping machine is mainly used for buckling processing for hydraulic rubber hose assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends. This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale.It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
FY91A 1/4" to 2" 4 wires(metal hose,wire rope,hydraulic hose,air hose,pvc hose,water hose) Only the hose is in the scope,which can do the crimping work. |
1 Hose capacity:6-51(mm) 1/4" to 2"4 wires4SH 4SP with 10 free mould dies or more as request |
2 Swaging Force: 500(T) |
3 Press Number:200/hour |
4 Max Pressure:31.5(MPa) |
5 Opening without dies:119mm |
6 Die Opening and Closing:+/-20(mm) |
7 Calibration:Simple dial adjusted Calibrator |
8 Weight:280(Kg) with packing |
9 Noise Level:68DB |
10.Packed Dimensions(Length*Width*Height):800x640x1300(mm) |
11.Die NO. and length:15 (60),19(60),23(60),26(60),31(70),36(70),41(70),47 (70) 55(80),65(85) |
12 Voltages 3 phase (Different voltages available):380/440 50Hz OR 225/280-440/480 60Hz |
13 Voltages 1 phase (Different voltages available):220/240 50Hz |

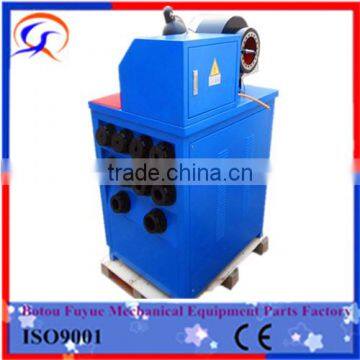

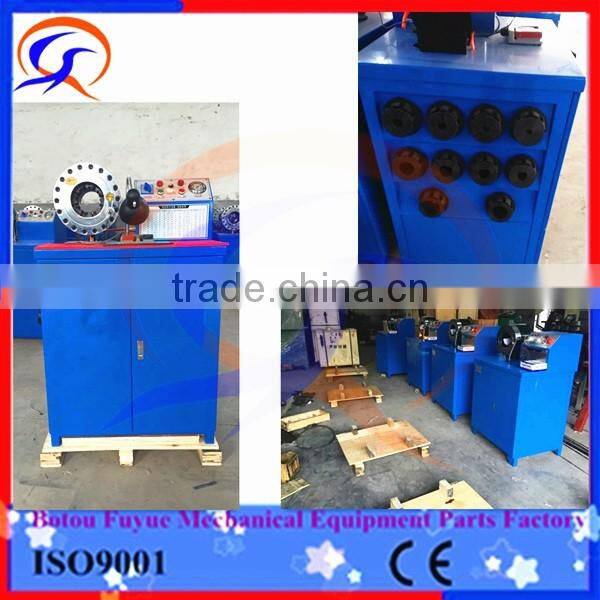

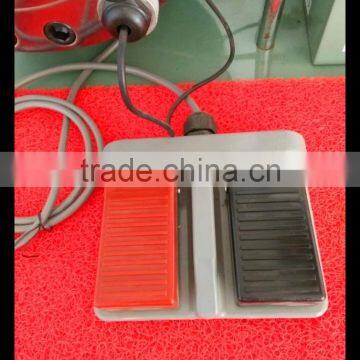

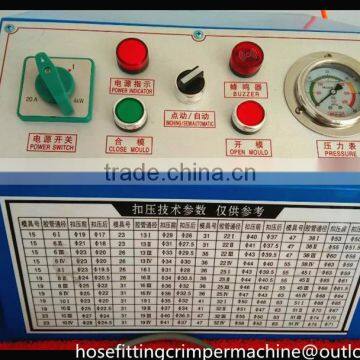

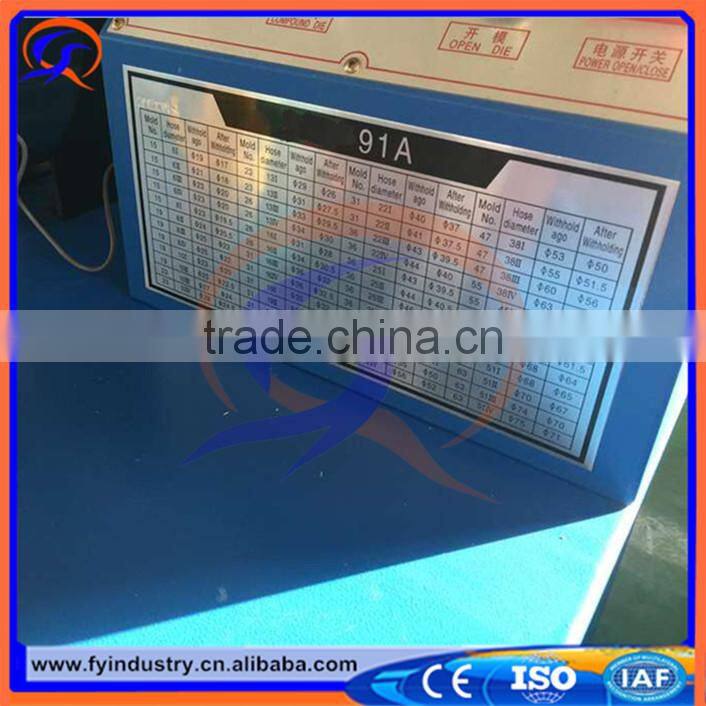

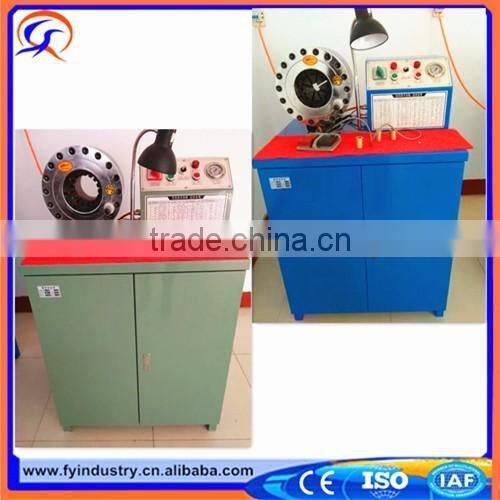

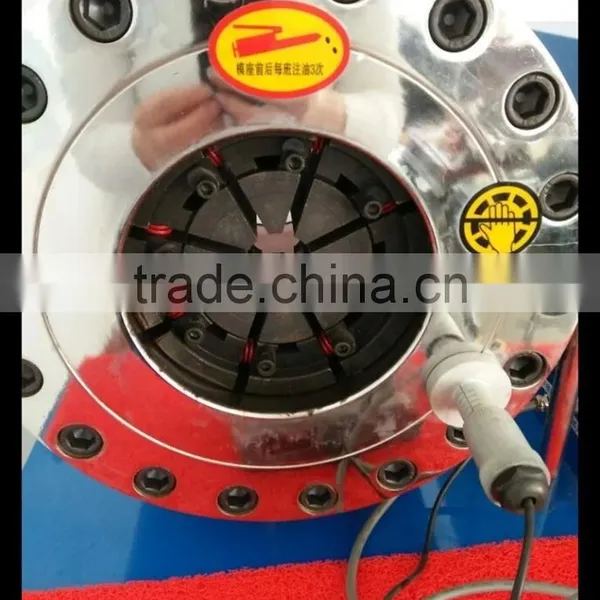

The picturers of hose crimping machine
Use our hose crimping machine finished hose crimper:
Packing of hose crimping machine
We also supply other type machine,if you are in need,you can order together:
Our shipping:
Please contact me for more information
