Chinese Manufacturer!! hydraulic hose fitting ferrule crimping machine
Notice:
1.Machines quality warranty is 3 years.
2.Business is factory production directly,do the export now.
3.Looking for the agent in different country.
4.Packing is good for protecting long distance delivery.
5.Supply best service,good agent,delivery to different citys as request(Yiwu,Guangzhou,Xinjiang)
FY91A manual hydraulic rubber hose crimping machine for sale is suitable for high precision pressing of low and high pressure hose diameter ,starting from 1/4" to 2" internal hose pipe.
Technical Data | |
Crimping range | 1/4"—2" (4SP) |
Supplied die sets | 10sets |
Press number | 200/hour |
Optional voltage&motor | 380v |
Opening without dies | 119mm |
Power | 3KW |
Systematic pressure | 31.5MPa |
Weight | 300KG |
Noise level | 68dB |
Delivery time | Within 7 days |
Size and shape | 800*640*1300mm |
Die No. And Length:6-15(60),8-19(60),10-23(60),12-26(60),16-31(70),19-36(70),25-41(70),32-47(70),38-55(80),51-65(85) |
Voltage 3 phase(different voltages available):380/440 50Hz OR 225/280-440/480 60Hz |
Voltage 1 phase(different voltages available):220/240 50Hz |
Conditions and Terms |
MOQ:1set |
Payment term:T/T,West Union,Paypal |
Shipment terms:FOB,CNF,CIF,EXW etc. |
Price:Negotiable |
Warranty:1year |
If you don’t know how to place an order. Contact us freely,we are pleasure to guide you. |

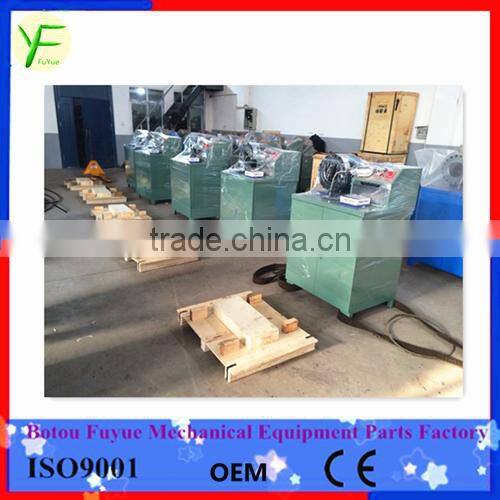

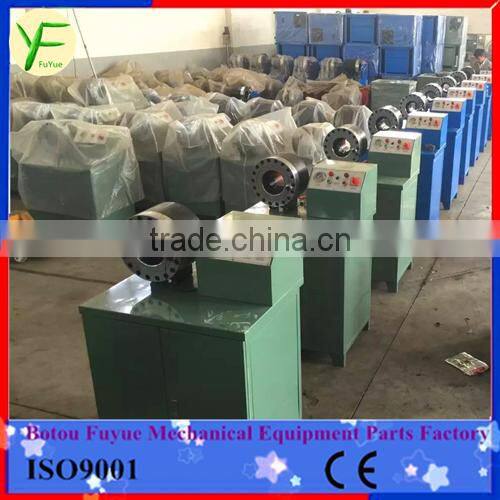

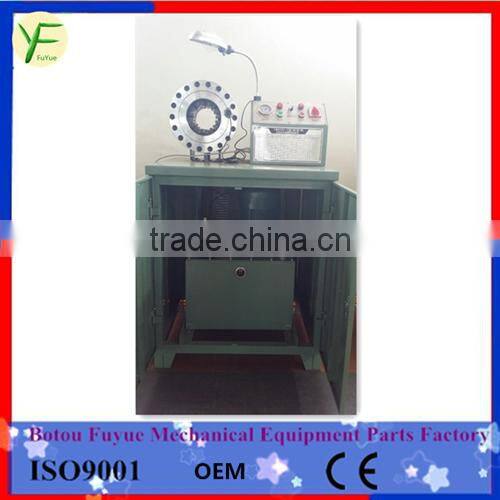

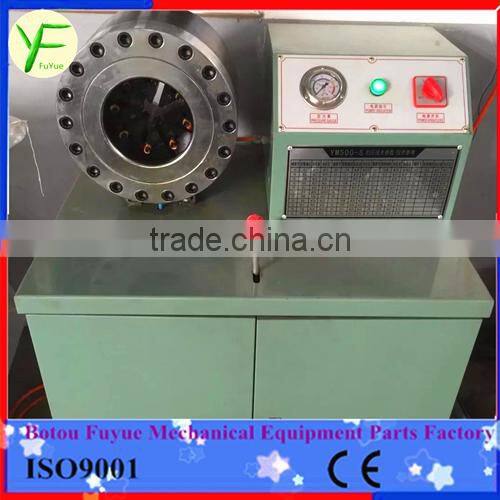

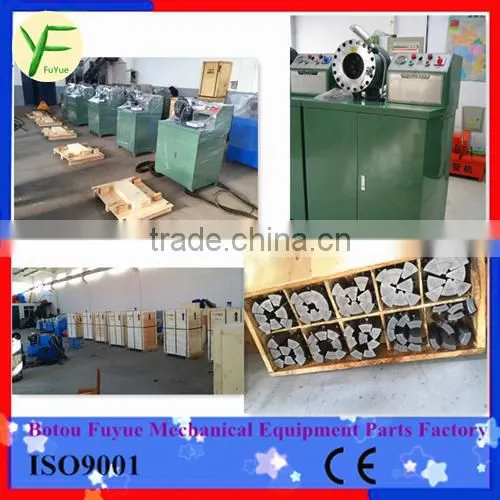

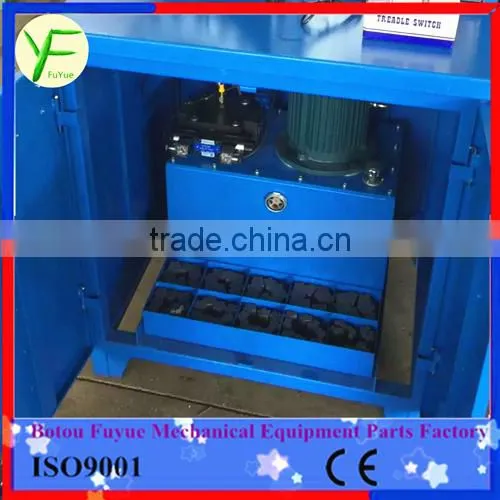

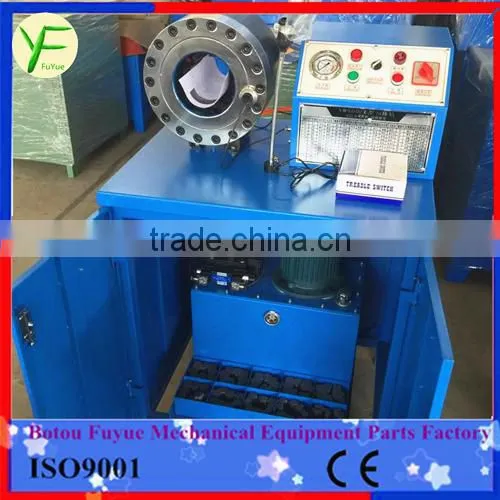

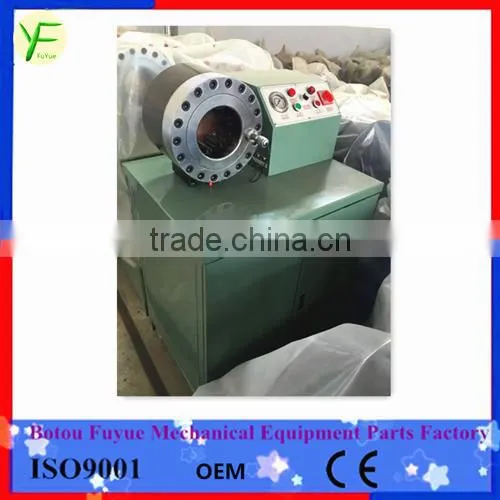

Pictures of Chinese Manufacturer!! hydraulic hose fitting ferrule crimping machine :
Using our hydraulic rubber hose crimping machine to crimp hydraulic hose,Air hose,metal hose,pvc hose,water hose,wire rope etc.:
Finished hose assembly can be used different places
Packing of our manual hydraulic hose crimping machine:
Contact me well and do business with me
| Conditions and Terms to do the business with our factory | |
| Payment Terms:T/T or Western Union or cash or RMB from agent. | |
| Shipping company we use:EMC,MSK,CMA,RCL,MSC,YML,COSCO,etc. | Or As request |
| Shipping Terms: FOB,CFR,CIF,DDU,EXW etc. | Or as request |
| Warranty: 3 year ( Money Back Guarantee) | And Supply Forever after-sales service |
| Packing:Wooden Case for outer,inner is pp bag,protect the machines well for long distance delivery. | |
| Delivery Time: within 4 days after getting the prepayment. | |
| Insurance: We can do best for you | good shipping company delivery,good feedback. |
Call me freely or send email or add the online tools to chat,if any demands. I will reply within 24 hours
