Only Manufacturer of Hydraulic Hose Crimper FY-91H for Hydraulic Hose /pipe Steel

Only Manufacturer of Hydraulic Hose Crimper FY-91H for Hydraulic Hose /pipe Steel photo-1
Only Manufacturer of Hydraulic Hose Crimper FY-91H for Hydraulic Hose /pipe Steel photo-2
Only Manufacturer of Hydraulic Hose Crimper FY-91H for Hydraulic Hose /pipe Steel photo-3

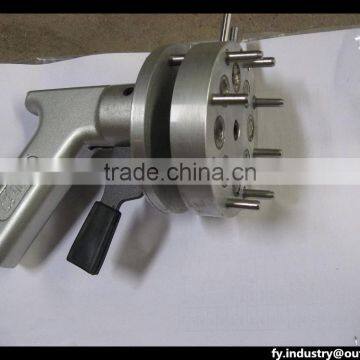

Only Manufacturer of Hydraulic Hose Crimper FY-91H for Hydraulic Hose /pipe Steel photo-4
Only Manufacturer of Hydraulic Hose Crimper FY-91H for Hydraulic Hose /pipe Steel photo-5
Only Manufacturer of Hydraulic Hose Crimper FY-91H for Hydraulic Hose /pipe Steel photo-6
US$ 1 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
FUYUE
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG or Shanghai etc.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Hebei, China
Brand Name FUYUE
Model Number FY-91H
Voltage 380V/50HZ
Power(W) 4KW
Dimension(L*W*H) 720*530*820
Weight 185kg
Certification ISO9001 CE
Warranty 3 years
After-sales Service Provided Engineers available to service machinery overseas

only manufacturer of hydraulic hose crimper FY-91H for hydraulic hose /pipe steel

Notice:We are factory production,so can produce the machines or tools as request. We have many good cooperation companys in our domestic market.

Now we want to export our machines and tools directly.

If you are interested in becoming our cooperation agent,please feel free to contact me. It will bring big market for you.

 only manufacturer of hydraulic hose crimper FY-91H for hydraulic hose /pipe steelonly manufacturer of hydraulic hose crimper FY-91H for hydraulic hose /pipe steel

Brief Introduction of hose crimping machine

The hydraulic hose crimping machine is mainly used for buckling processing for hydraulic rubber hose assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends. This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale.It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

Technical Parameters of  hose crimping machine



1

Types

FY91H

(Electric crimping)

2

Crimp force

530T

3

Motor

2.2kw/4kw

4

Voltage

380V*50HZ

5

Displacement of plunger pump

14.5L/min

6

Systematic pressure

30MPa

7

hydraulic operating fluid

winter:YB-N32





summer:YB-N46

8

Volume of oil tank

675×345×240 mm3

9

L*W*H

720×520×820(mm)

10

Crimp range

φ6—φ51 4SP







Pictures show

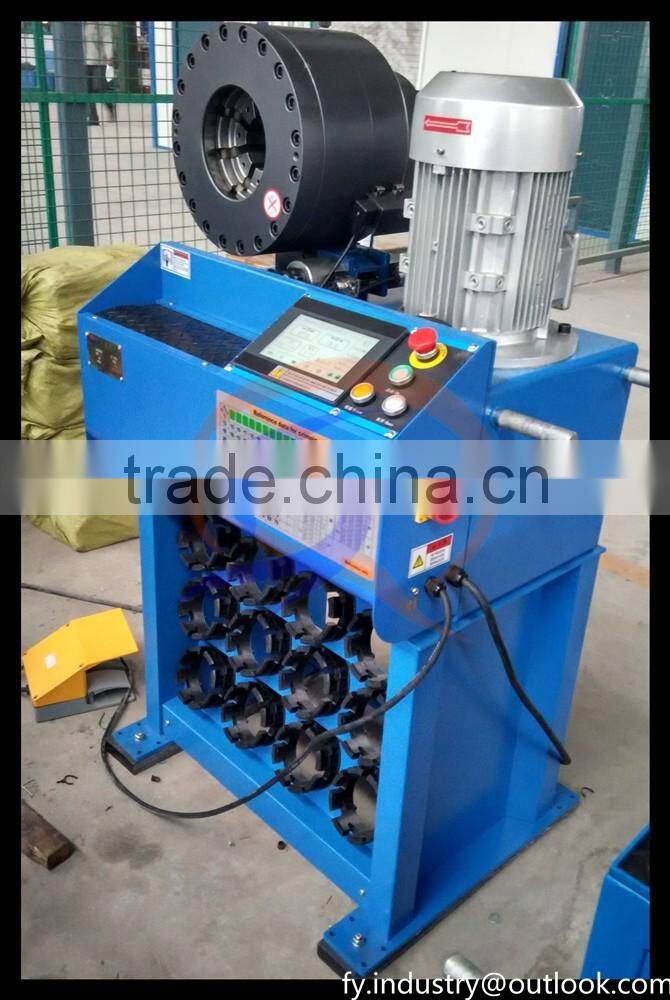

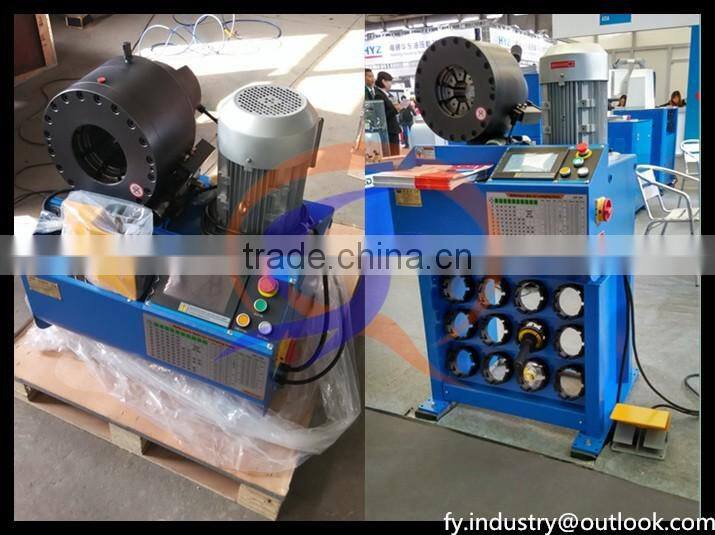

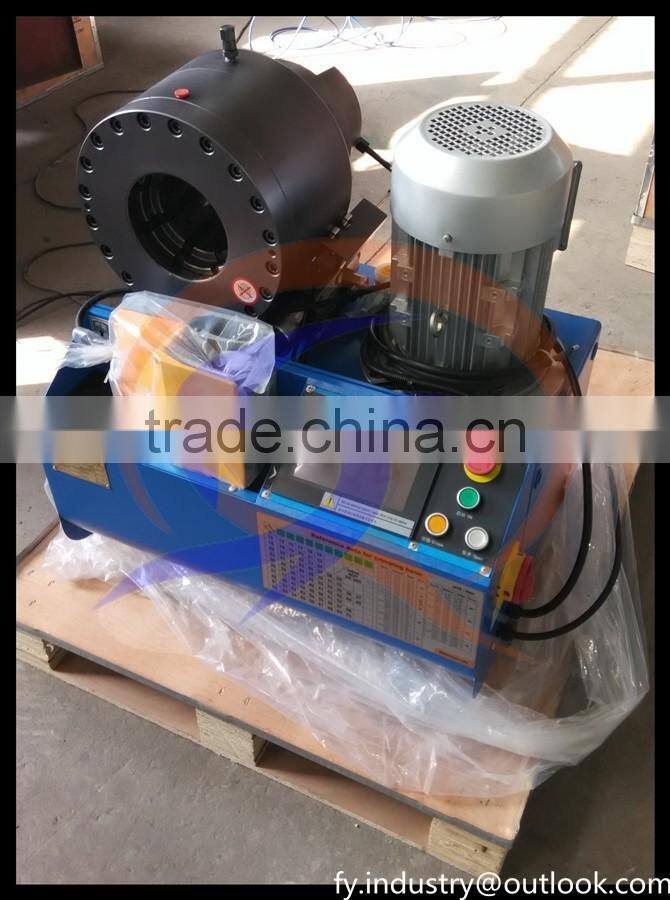

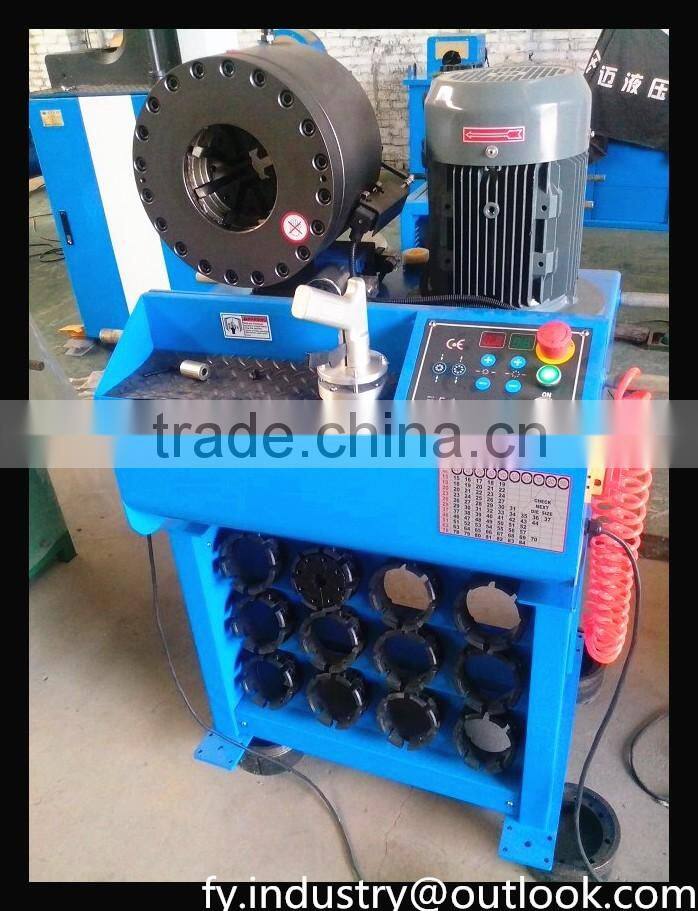

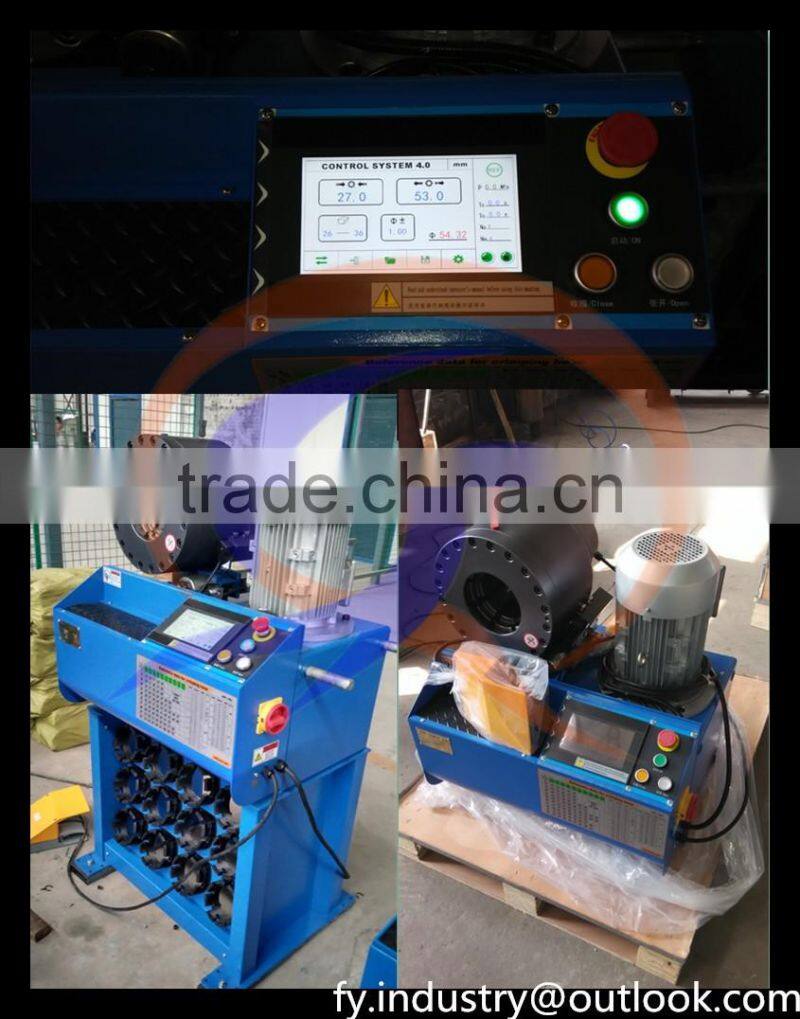

The picturers of hose crimping machine

only manufacturer of hydraulic hose crimper FY-91H for hydraulic hose /pipe steelonly manufacturer of hydraulic hose crimper FY-91H for hydraulic hose /pipe steelonly manufacturer of hydraulic hose crimper FY-91H for hydraulic hose /pipe steelonly manufacturer of hydraulic hose crimper FY-91H for hydraulic hose /pipe steelonly manufacturer of hydraulic hose crimper FY-91H for hydraulic hose /pipe steel

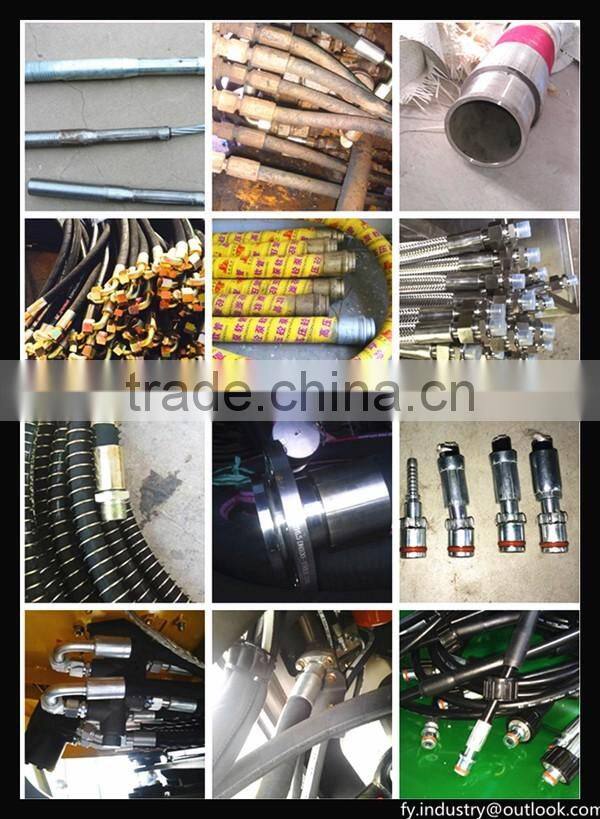

Our conputer machine and touch screen machine can crimper different kinds of hose:

only manufacturer of hydraulic hose crimper FY-91H for hydraulic hose /pipe steel

only manufacturer of hydraulic hose crimper FY-91H for hydraulic hose /pipe steel
