pipe locking machine/hose crimper

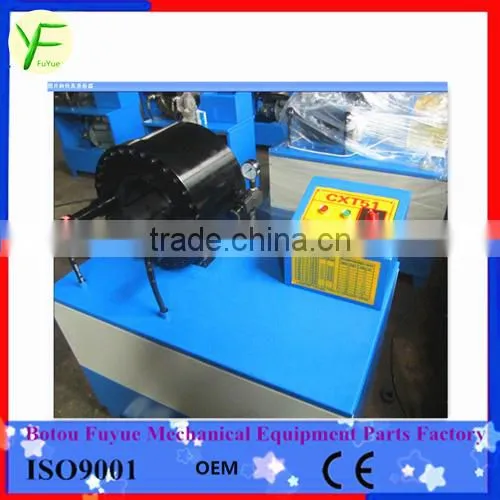

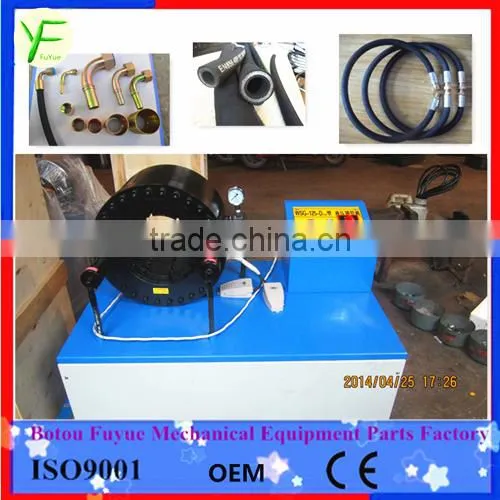

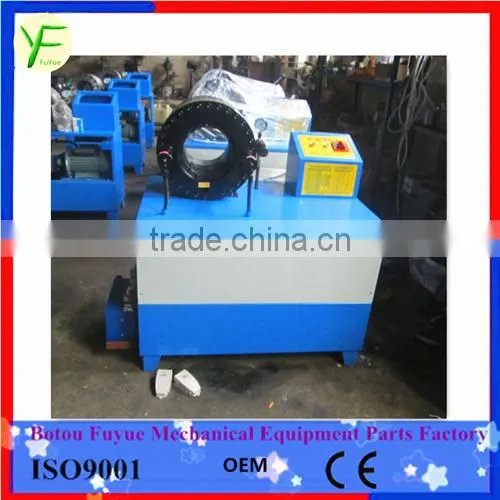

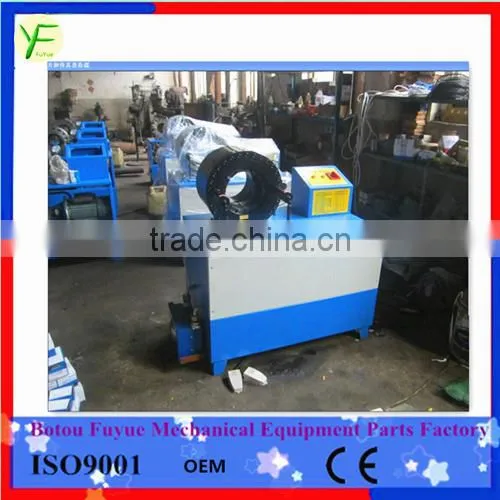

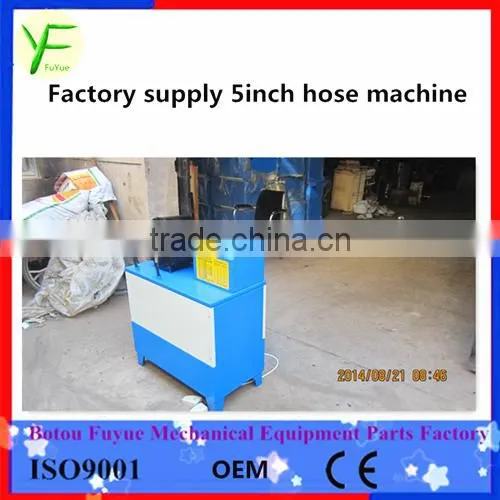

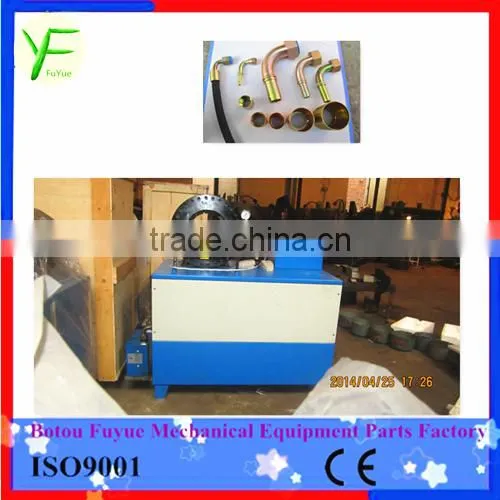

Introduction of pipe locking machine

This machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.

This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

Technical parameter of pipe locking machine

Buckling range: 1/4" to 5"

Max. buckling force: 530T

Scale accuracy: 0.02mm

Rated pressure: 31.5 MPa

Power:380v 50Hz 5.5kw

Capacity:850pcs/h

Weight:3000kg

Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V)

Overall dimensions: 1000(L)×600(W)×15000(H)mm
