Specifications
Intrinsically safe and explosion-proof instrumentHigh resolution display 0.1dB
Large measurement range
Logging and Averaging
Applications:

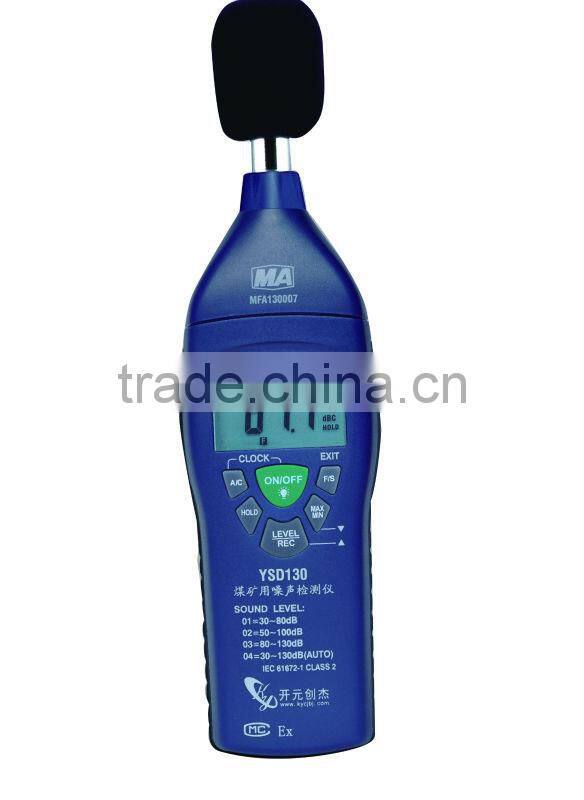

YSD130 Digital Sound Level Meter is an intrinsically safe and explosion-proof instrument, especially designed to undertake noise measurements for the underground coal mine and mine safety inspection. Certainly, it is also applied to the sounds measurement at factory, school, office, traffic access and all kinds of environment that sounds measurements needed.
Key features:
• Intrinsically safe and explosion-proof instrument
• Simple operation
• Rugged design
• High resolution display 0.1dB
• Latest digital technology
• Fully compliant with IEC 61672
• Large measurement range
• Logging and Averaging models
Technical specification:
Accuracy |
±1.4dB |
Frequency range |
31.5HZ ~ 8KHZ |
Dynamic range |
50dB |
Level ranges |
LO:30dB~80dB Med:50dB~100dB |
Hi:80dB~130dB Auto:30dB~130dB | |
Time weighting |
FAST ( 125mS ), SLOW ( 1s ) |
Frequency weightings |
A and C |
Microphone |
1/2 inch electret condenser microphone |
Resolution |
0.1dB |
Explosion protection |
Exibd I |
Accessories:
9V battery, Carrying case and Operate guidebook.
