Multi-Function Ventilation Meter

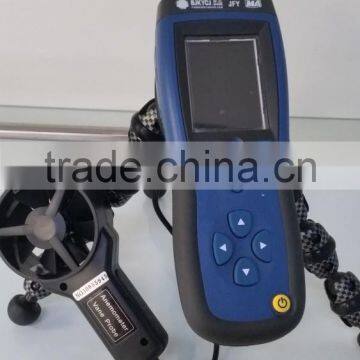

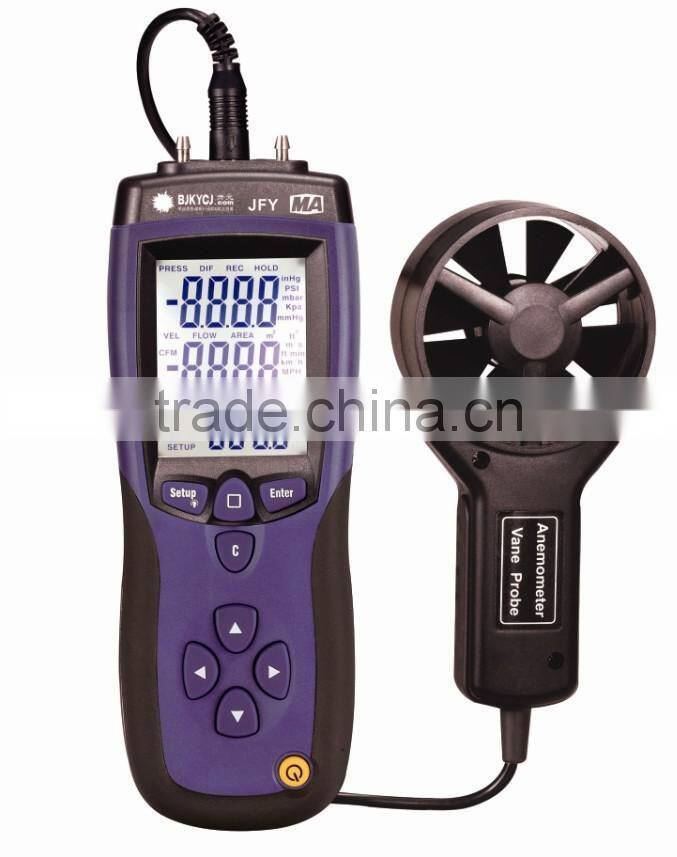

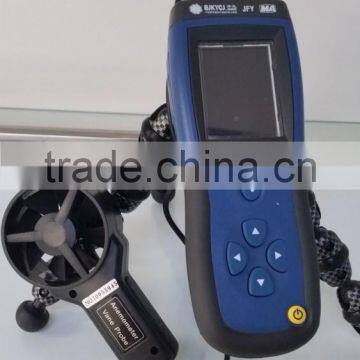

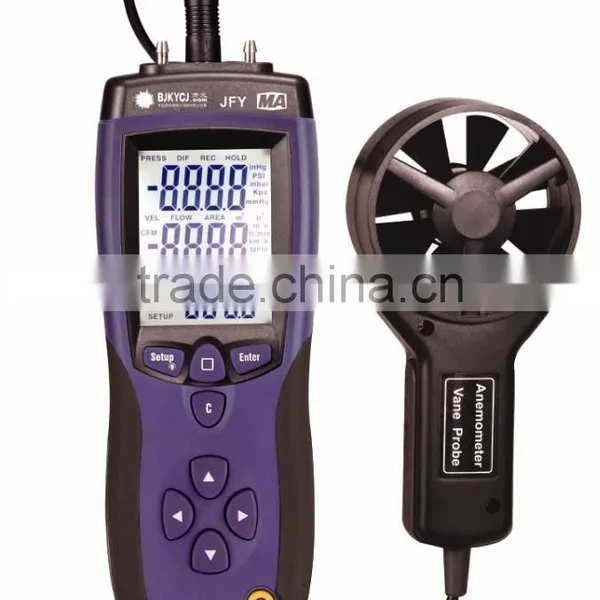

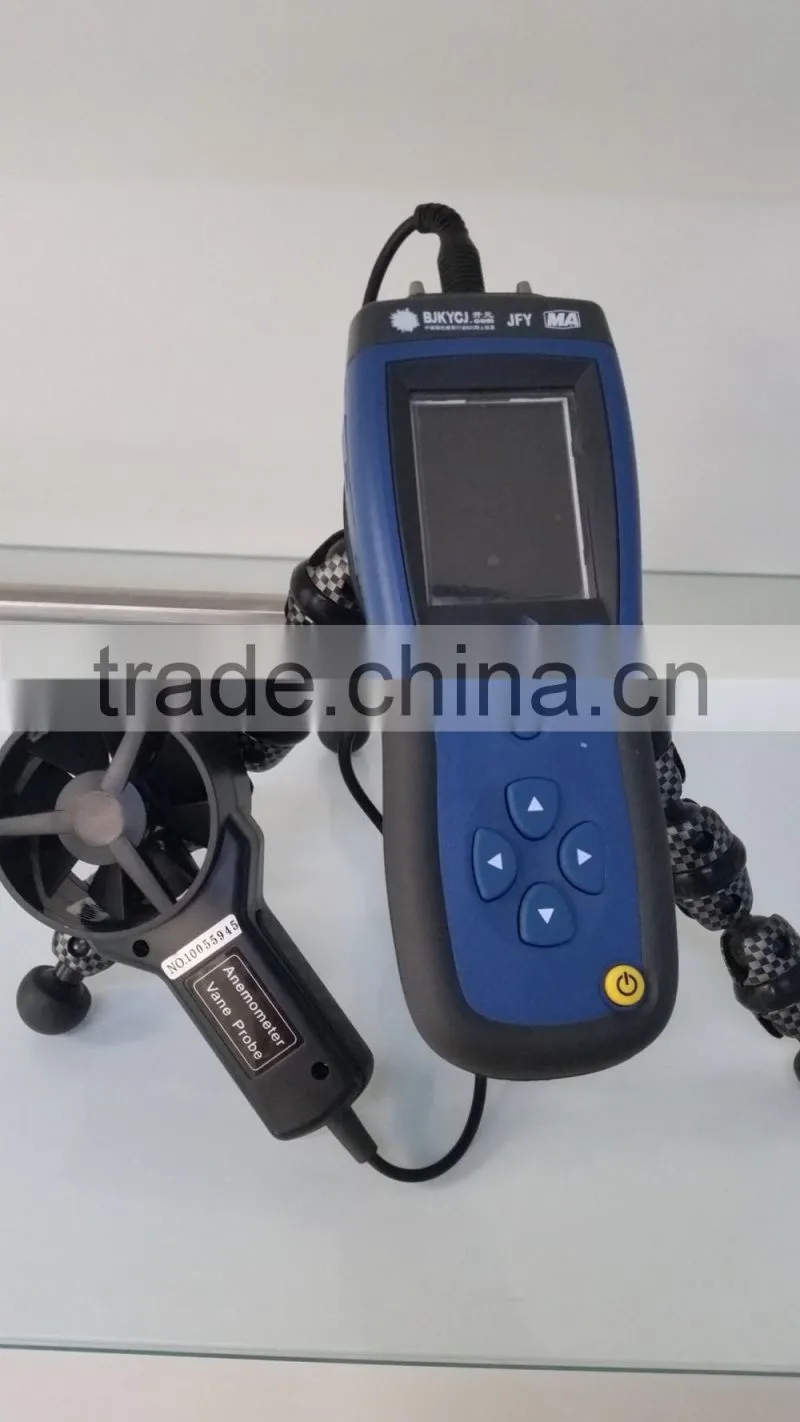

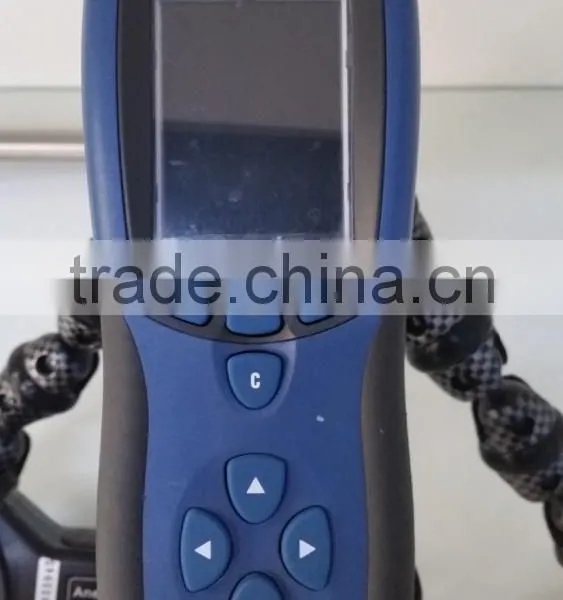

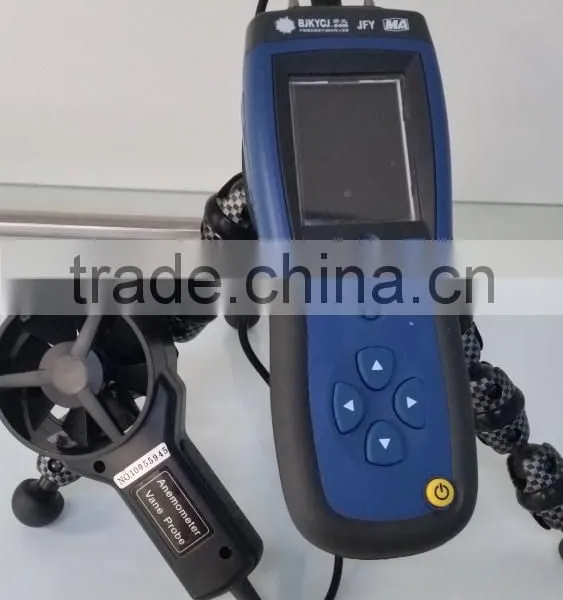

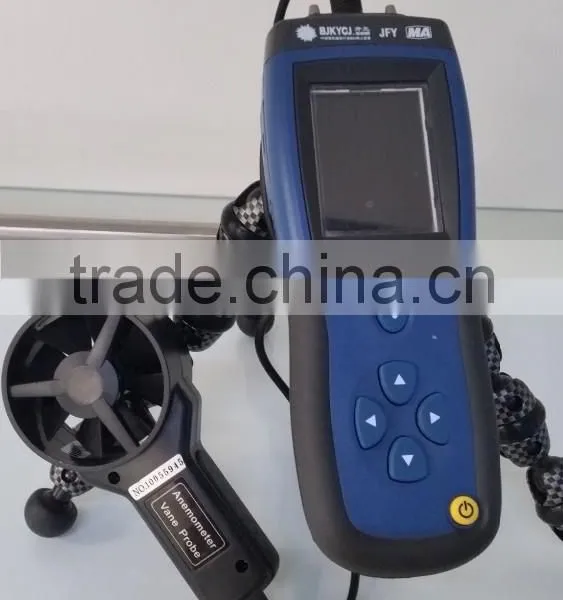

Multi-Function Ventilation Meter
Model: JFY-6
multi function ventilation meter
universal ventilation meter
Ventilation Meter
ventilation air flow meter

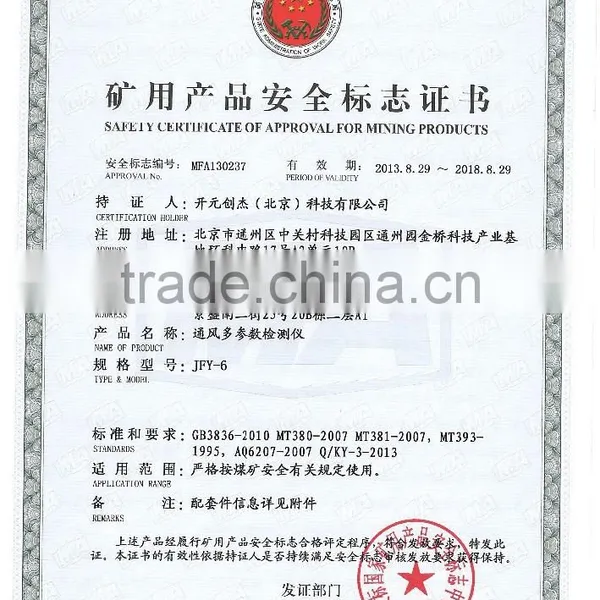

Qualifications: Coal Mine Safety Certificate

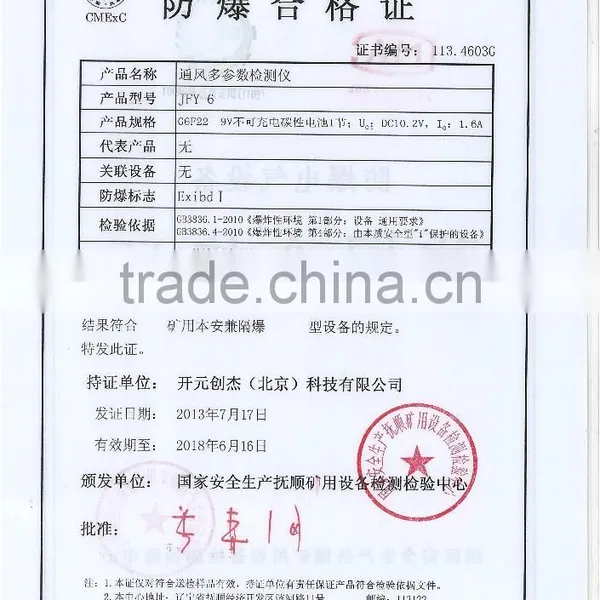

Explosion-proof Certificate
Inspection Certification
Range:
Wind speed, temperature, differential pressure, atmospheric pressure, humidity, methane CH4
Applications:
JFY-6 Multi-Function Ventilation Meter is an intrinsically safe and explosion-proof instrument, especially designed to measure the barometric pressure, differential pressure, air velocity, temperature, relative humidity and methane gas.
It is used at the underground coal mine and mine safety inspection mainly. Certainly, it is also applied to fire fighting , chemical industry , Clean room testing, HVAC commissioning and troubleshooting, Ventilation evaluations, Process air flow testing and all kinds of environment that needed to measure the barometric pressure, differential pressure, air velocity, temperature, relative humidity and methane gas.
Key features:
- Intrinsically safe and explosion-proof instrument
- Best-in-class air velocity accuracy
- Displays up to 6 measurements simultaneously
- Large graphic display On-screen messages and instructions
- Intuitive menu structure allows for ease of use and setup
- Multiple data logging formats
- Bluetooth communications for transferring data or remote polling
- Includes downloading software with USB cable
- Fast calibration and repair service—just send in the probe
Technical specification:
Range | ||
air velocity | 0.2 to 20 m/s | |
temperature | -20 to 50℃ | |
relative humidity | 0 to 100% RH | |
barometric pressure | 100.00~1400.00hPa | |
different pressure | -1100.00~1100.00hPa | |
Accuracy | ||
air velocity | ±0.4 m/s | |
temperature | ±2.5% | |
relative humidity | ±2% RH | |
barometric pressure | 2% of reading | |
different pressure | ±2% | |
Resolution | ||
air velocity | 0.01 m/s | |
temperature | 0.1℃ | |
relative humidity | 0.1% RH | |
different pressure | 0.01mm Hg, 1 Pa | |
Data storage capabilities | 15000test IDs(manual, auto save continuous) | |
Explosion protection | Exibd I | |
Protection grade | IP54 | |
External Meter Dimensions | 203mm x 75mm x 50mm | |
Power Requirements | 9V 1000mAh lithium battery | |
Accessories:
Rotating Vane Probe, USB cable , lithium battery, Carrying case and Operate guidebook.
Beijing Topsky Automatic Technology Co., Ltd. is a professional large-scale manufacturer of all types coal mine safety equipment and fire fighting equipment, integrating development and production together. Our main products include portable gas detector, Ventilation Meter, breathing apparatus, Oxygen Self-Rescuer, Water mist system, Pneumatic Chain Saw and related products. Our company was established in 2003, and we have many years of history in the coal mine and fire fighting industry. Located at Beijing, we enjoy convenient water, land and air transportation.
Our company employs many experienced technical and management personnel. Through the efforts of all staff , we have become a special safety equipment manufacturer. All of our staff have continuously tried to improve product quality and service for the user's safety.
Currently, our product was already exported to America, France, Australia, Italy and 20 other countries and regions. Our company has always focused on research, development and innovation. We attained ISO9001 quality management system certificate.
Our company has initiated the new phase of our development strategy. Our company regards, reasonable prices, efficient production time and good after-sales service as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us for future business relationships and achieving mutual success.
Beijing Topsky is the safety equipment leading brand in China.
We supply the industry rescue security products to the world.
We provide:
1.Gas detectors:to keep safe from various gases,especially used in coal mine environment or extreme condition.
2.Personal rescue equipment :to save lives,help resolve dangerous situation
3.Rescue equipment:to provide first-aid and reduce the damage on property.
4.Measuring equipment:to provide professional measurement to know the environment well.
5.Police&military supplies:to save lives and reduce the damage on property.
2-year warranty
Lowers the overall cost of ownership by providing a full 24 months of warranty coverage.
Now we are looking for distrubutors & agency, if intersted pls feel free to contact us!
OEM service Availbale.
