Specifications
intrinsically safe and explosion-proof instrument
Applications:

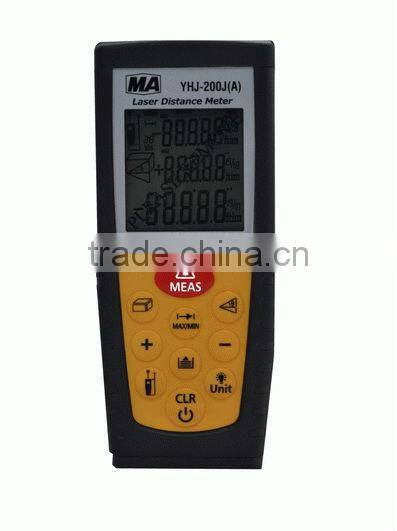

YHJ200J(A) laser distance meter is an intrinsically safe and explosion-proof instrument and is designed to measure the distance.
It is used at the underground coal mine and mine safety inspection mainly. Certainly, it is also applied to fire fighting, confined space, chemical industry, oil and all kinds of environment that needed to measure the distance.
Technical specification:
Measure Range | 0.05 ~200M |
Resolution | 1mm |
Typical Accuracy | ±1.5mm |
Measurement unit options | mm/in/ft |
Laser Type | ClassII,<1mW. |
Area and Volume measurement function | yes |
Add and subtract measurement function | yes |
Min/Max value | yes |
Max storage | 20 units |
Automatic backlight | yes |
Automatic Switch-off. | yes |
Operation Temperature | 0°C~40°C |
Storage Temperature | -10°C~60°C |
Explosion protection | Exibd I |
Protection grade | IP54 |
Dimension | 116×47×29mm |
Weight | 140 g (including battery) |
