Beijing Topsky Automatic Technology Co., Ltd. is a professional large-scale manufacturer of all types coal mine safety equipment and fire fighting equipment, integrating development and production together. Our main products include portable gas detector, Ventilation Meter, breathing apparatus, Oxygen Self-Rescuer, Water mist system, Pneumatic Chain Saw and related products. Our company was established in 2003, and we have many years of history in the coal mine and fire fighting industry. Located at Beijing, we enjoy convenient water, land and air transportation.
Our company employs many experienced technical and management personnel. Through the efforts of all staff , we have become a special safety equipment manufacturer. All of our staff have continuously tried to improve product quality and service for the user's safety.
Currently, our product was already exported to America, France, Australia, Italy and 20 other countries and regions. Our company has always focused on research, development and innovation. We attained ISO9001 quality management system certificate.
Our company has initiated the new phase of our development strategy. Our company regards, reasonable prices, efficient production time and good after-sales service as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us for future business relationships and achieving mutual success.
Beijing Topsky is the safety equipment leading brand in China.
We supply the industry rescue security products to the world.
We provide:
1.Gas detectors:to keep safe from various gases,especially used in coal mine environment or extreme condition.
2.Personal rescue equipment :to save lives,help resolve dangerous situation
3.Rescue equipment:to provide first-aid and reduce the damage on property.
4.Measuring equipment:to provide professional measurement to know the environment well.
5.Police&military supplies:to save lives and reduce the damage on property.

Application:

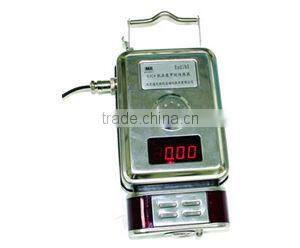

GJH4 (A) Infrared CH4 Meter can continuously and automatically convert down hole CH4 concentration into a standard electrical signal and then transmit to the matching equipments. It can show the concentration of methane in situ and it has the function of transfinite audible and visual alarm. It can connect with monitoring system, breaker and wind power gas lock instruments. It is widely used in the field of coal mining working face, electrical and mechanical cavern and return air roadway.
Key Feature:
- 1. It adopts new type single chip microcomputer and high integration digital circuit. Then the circuit structure is simple. Performance is reliable. Easy to maintenance and debugging.
- 2. It has the function of Infrared remote calibration zero, sensitivity and emergency alarm. It is simple and convenient to calibrating.
- 3. The sensor has extra function of cutting off control. You can set cutting off point arbitrarily. It has a multi-usage function.
- 4. Using new type of switching power, reduce the power consumption of the engine, increase the transmission distance of the instrument.
- 5. Self-diagnostic function, easy to use and maintain.
- 6. Newly high-strength shell structure, enhance the impact resistance of the instrument.
Technical Specification:
Testing Range | 0.00%CH4~4.0%CH4 |
Environment Temperature | 0°C~40°C |
Relative Humidity | ≤98%RH |
Atmosphere Pressure | 80kPa~116kPa |
Wind Speed | 0m/s~8m/s |
Frequency | 200Hz~1000Hz |
Current | 1mA .DC~5mA .DC |
Response Speed | ≤20S |
infrared component life | 5 years |
soundintensity | ≥85dB |
Dimension | 270mm× 155 mm× 55mm |
Weight | ≤1.3kg |
2-year warranty
Lowers the overall cost of ownership by providing a full 24 months of warranty coverage.
