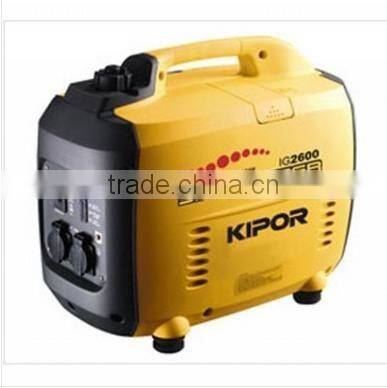

diesel generator set
Technical Parameters:
Model:IG2600
Rated frequency:(Hz)50/60
Rated voltage (V):230 120/240
Rated Current (A): 10 19.2/9.6
Rated speed (r / min): 3600
Rated output power: 2.3
The maximum output power (kVA): 2.6
DC Output: 12v-5.0A
Number of phases: single-phase
Structure: portable silent type
Oil Tank Capacity (L): 5
Unit fuel consumption (g / kW.h): 500
Uptime (rated output) (hr): 3
Noise (no load - full load) (A) / 7m: 58-65
Dimensions (L × W × H) (mm): 565X320x465
Net weight (kg): 29.5
Start: recoil hand start
Fuel type: automotive unleaded gasoline
Oil type: CD grade or above SAE10W-30,15W-40
Engine Model: KG166
Cylinder structure form:Vertical single-cylinder, four-stroke, air-cooled, overhead cam
Bore × Stroke (mm): 66×50
Displacement (ml): 171
Compression ratio: 8.5: 1
Rated power [Kw (r / min)]: 3.3/3600
Ignition system: all-transistor electronic ignition (TCL)
Spark Plug:WR7DC
The lowest fuel consumption (g / kW.h): 395
