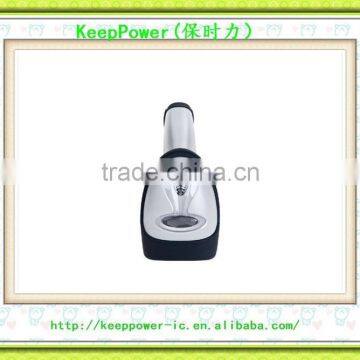

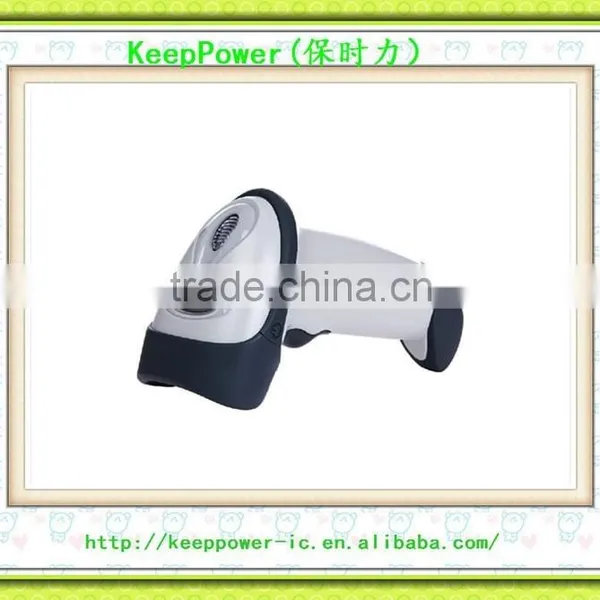

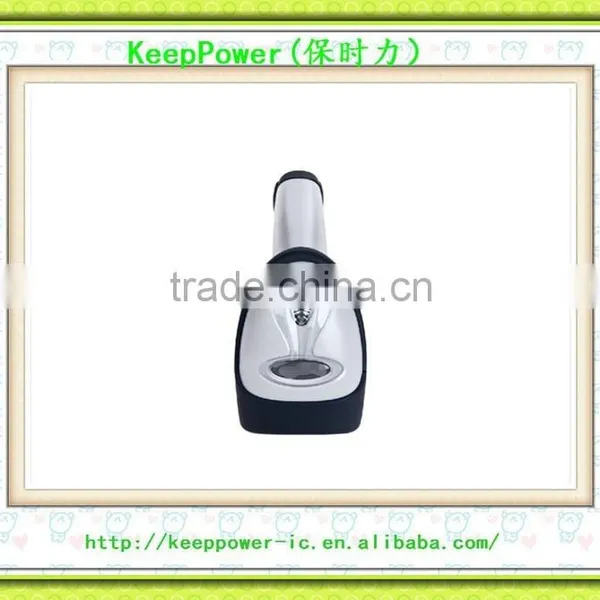

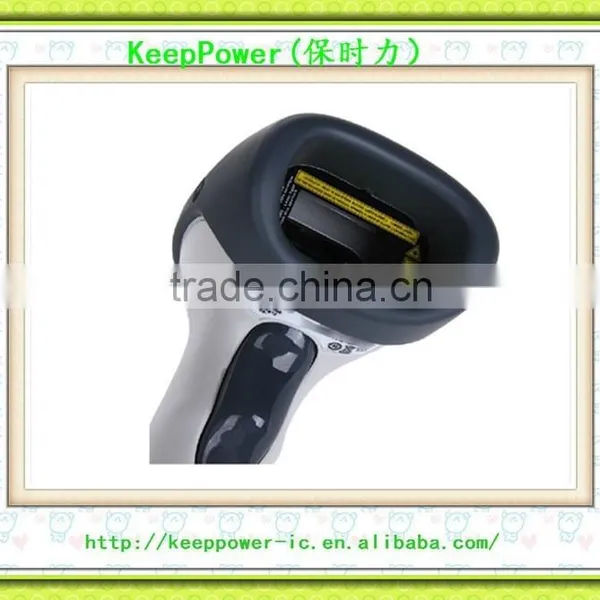

Hot Offer LS-2208AP New & Original

We offer one stop service for all kinds of electronic components such as ICs, Diodes,

Transistors, Optocouplers, Capacitors, Resistors, MOSFET, Crystal, IGBT modules,

Fuses, Connectors, Switches, Adaptors, Potentiometers, etc..

We only sell the original new items!

Contact us:

 All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.You're welcome to ask any details!

Our websit:http://www.keeppower-ic.en.china.cn

Details:

LS2208AP fast performance list

Physical parameters

Dimensions: 6 in H x 2.5 in W x 3.34 in D 15.2 cm H x 6.3 cm W x 8.4 cm...
Weight: 5.15 oz / 146 gm.
Voltage: 5 volts +/- 10%
Current: standard 130 mA, 175 mA maximum
Power: Host power or external power supply
Color: White or black cash register
Performance Parameters
Scanner Type: Bi
Source: 650 nm visible laser diode
Scan rate: typically 100 scans per second
Rated operating distance: For 100% UPC / EAN code type from direct exposure to 17 in / 43 cm scanning distance can be a normal scan.
Print Contrast: 20% minimum reflective difference
Rotation angle: 1 +/- 30 degrees
Tilt angle: 21 +/- 65 degrees
Offset angle: 31 +/- 60 degrees
Decoding capability: UPC / EAN, UPC / EAN with Supplementals, UCC / EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS variants, Chinese 2 of 5
Support Interface: RS232, keyboard jacks, Wand, IBM 468X / 9X, USB, Synapse and Undecoded

Environmental parameters:

Operating Temperature: 32 ° to 122 ° F / 0 ° to 50 ° C
Storage temperature: -40 ° to 158 ° F / -40 ° to 70 ° C
Humidity: 5% to 95% (non-condensing)
Seismic capacity: from 5 ft / 1.5 times the height fell to the concrete floor can still work
No interference of ambient light: Under normal office and factory lighting conditions or exposed to direct sunlight will not have any impact
Electrostatic Discharge: Conforms to 15 kV air discharge and 8 kV contact discharge requirements

Accessory
Hands-free Intellistand TM 20-61019-01 or 20-61019-02

Mandatory:

Electric Safety: Complies with UL1950, CSA C22.2 No. 950, EN60950 / IEC950
EMI / RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI / MITI / Dentori.
Laser Safety: CDRH Class II, IEC Class 2

Depth of Field

* The shortest distance from the pattern length and scan angle decision
Note: This is a pattern typical of high-quality performance in 73∞ F (23∞ C) when under normal indoor lighting.

LS 2208AP decoding region

1. Rotate Perspective: be controlled by rotating the wrist clockwise or counterclockwise
2. Tilt: control by lowering or raising the wrist
3. Offset perspective: control by rotating from left to right or right to left wrist
