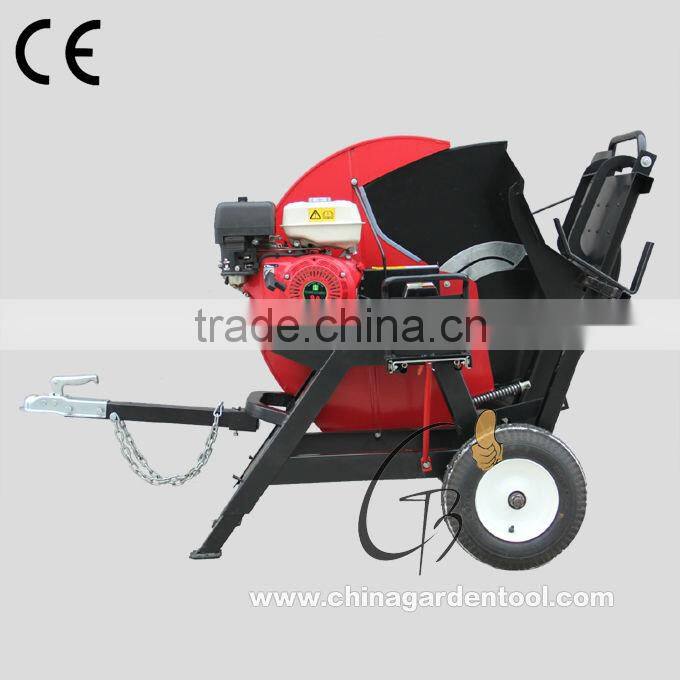

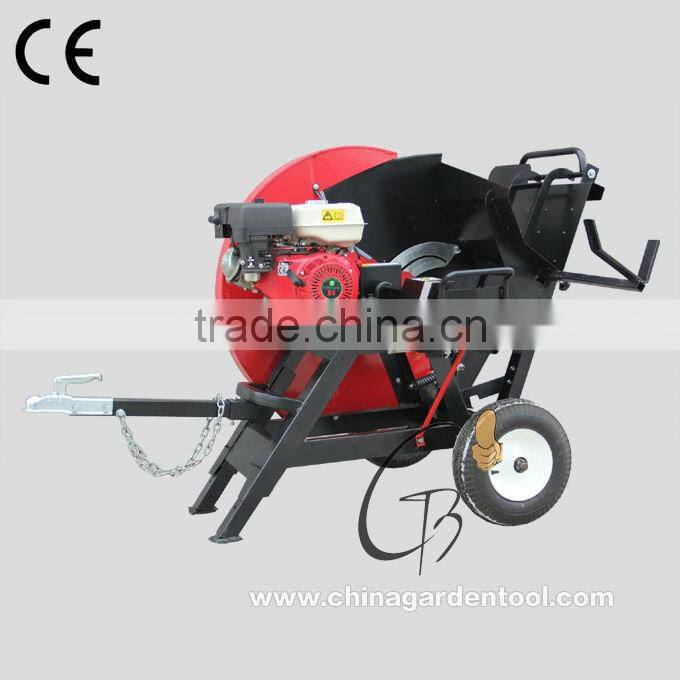

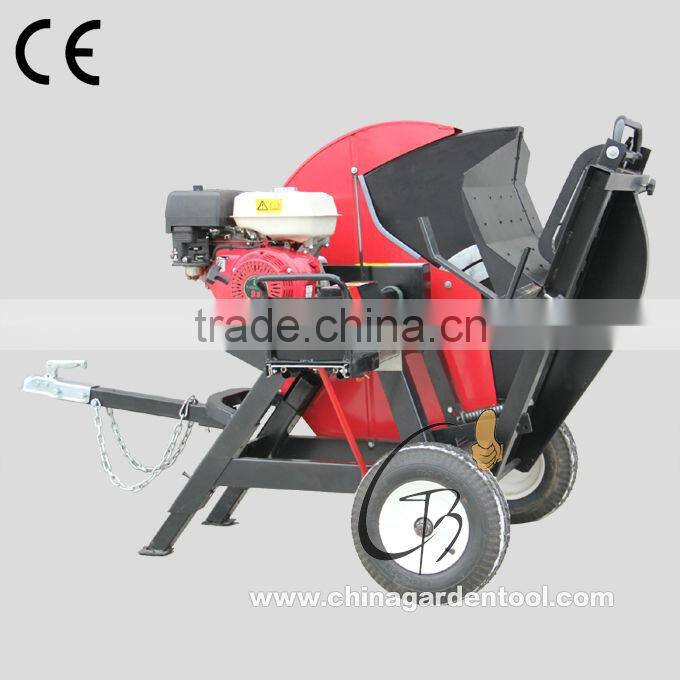

9hp Gasoline Engine Log Splitter Saw to Cut Long Log Into Short ( CL700-2 9HP)

Laizhou Great-Boom Machinery Co., Limited
9hp Gasoline Engine Log Splitter Saw to Cut Long Log Into Short ( CL700-2 9HP) thumbnail-1
9hp Gasoline Engine Log Splitter Saw to Cut Long Log Into Short ( CL700-2 9HP) photo-1
US$ 620 - 720 MOQ: 10 Pallets
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular Saw
Use:
Woodworking
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Circular Saw
Use Woodworking
Style Horizontal
Place of Origin Shandong, China
Brand Name Great-Boom
Model Number CL700-2 9HP log splitter saw
Usage cut firewood
Power(W) 6.6kw
Dimension(L*W*H) 185 x 125 x 105cm
Weight 153KGS
Certification CE(TUV)

Specifications

horizontal log splitter,wood saw,wood saw machine,petrol wood saw cutting machine,wood sawmill,log saw,log splitter saw

horizontal log splitter

horizontal log splitter is available here.

CL700-2 (9hp), log splitter saw

GASOLINE ENGINE LOG SAw

EASILY MOVE

USAGE AT ANYWHERE

DON’T BE LIMITED BY ELECTRICITY

TUNGSTEN CARBIDE TIP BLADE

Log saw function

Cutting diameter: 30-270mm for log splitter and saw machine

Max. Length of log to cut: 1.15meter for log cutting tool

Coupler Size: 50mm   for circular saw wood cutting machine

Operation height: 125cm

Wheel: 400mm diameter size wheel, 200mm rim, TUBELESS, highway usage, 40M/h

Blade: 700x30x3mm, 64Z for log splitter and saw machine

N.W.: 140.00kgs

G.W.: 150.00kgs

Products Size (LxWxH): 185 x 125 x 105cm for log cutting tool

Packing size (LxWxH): 112.50 x 114 x 75cm/1PLT

Container loading: 30pcs/20ft, 60pcs/40ft/40HQ

Log splitter function

Splitter cone diameter: 60mm, 45# steel for circular saw wood cutting machine

Max. Diameter of tree splitter: 220mm

Max. Length of tree splitting: 300mm up to 500mm

Net Weight: 13kgs



Engine: 177FA, 9.0hp, single-cylinder, air-cooled, 4 strokes

OHV single cylinder, horizontal shaft, Engine certificate: CE, EPA, EC-II, CARB

Bore x stroke: 77mm x 58mm for log splitter and saw machine

Displacement: 270ml for log cutting tool

Compression ratio: 8.2:1

Max. Power output: 6.6kw/4000rpm

Fuel tank capacity: 6.0L

Engine oil capacity: 1.1L for circular saw wood cutting machine

Fuel consumption: 374g/kw.h

Net weight: 25.00kgs

Start type: recoil
