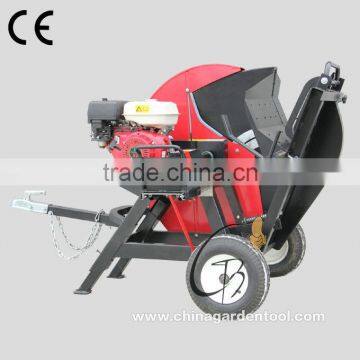

ce petrol engine screw log splitter, 700mm diameter blade, 9hp/13hp/14hp ( CL700-2 9HP)

Specifications

log splitter wood splitter,wood saw,wood saw machine,petrol wood saw cutting machine,screw log splitter, ce screw log splitter

log splitter wood splitter

wood splitter log splitter machine

CL700-2 (9hp), screw log splitter

GASOLINE ENGINE LOG SAW

EASILY MOVE

USAGE AT ANYWHERE

DON’T BE LIMITED BY ELECTRICITY

TUNGSTEN CARBIDE TIP BLADE

Log saw function

Cutting diameter: 30-270mm for log splitter and saw machine

Max. Length of log to cut: 1.15meter for log cutting tool

Coupler Size: 50mm   for circular saw wood cutting machine

Operation height: 125cm

Wheel: 400mm diameter size wheel, 200mm rim, TUBELESS, highway usage, 40M/h

Blade: 700x30x3mm, 64Z for log splitter and saw machine

N.W.: 140.00kgs

G.W.: 150.00kgs

Products Size (LxWxH): 185 x 125 x 105cm for log cutting tool

Packing size (LxWxH): 112.50 x 114 x 75cm/1PLT

Container loading: 30pcs/20ft, 60pcs/40ft/40HQ

Log splitter function

Splitter cone diameter: 60mm, 45# steel for circular saw wood cutting machine

Max. Diameter of tree splitter: 220mm

Max. Length of tree splitting: 300mm up to 500mm

Net Weight: 13kgs



Engine: 177FA, 9.0hp, single-cylinder, air-cooled, 4 strokes

OHV single cylinder, horizontal shaft, Engine certificate: CE, EPA, EC-II, CARB

Bore x stroke: 77mm x 58mm for log splitter and saw machine

Displacement: 270ml for log cutting tool

Compression ratio: 8.2:1

Max. Power output: 6.6kw/4000rpm

Fuel tank capacity: 6.0L

Engine oil capacity: 1.1L for circular saw wood cutting machine

Fuel consumption: 374g/kw.h

Net weight: 25.00kgs

Start type: recoil
