Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SEB
Model Number:
SEB-VP008
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name SEB
Model Number SEB-VP008
Specifications

1.Range: 0-300mm/0-12inch
2.Material:stainless steel (4cr13)
3.Four-way measurements
4.certificate:CE
5.Display: LCD

  •SPECIFICATIONS

1.size: 41.5 cm

2.packing details:

QTY PER CTNN.W/G.WCTN SIZE
20 PCS16/18KG 46X31X27 cm

3. material: 4cr13

4.package: plastic casing or blister with paper card or according to your requirements.

TECHNICAL SPECIFICATIONS

1.Outside Jaws:           Measure External Length

2.Inside Jaws:              Measure Internal Length

3.Measuring Range:     0-300mm/0-12in

4.Resolution:                  0.01mm/ 0.0005in

5.Accuracy:                     ± 0.02mm/ 0.001in (<100mm)

                                    ±0.03mm/0.001in(>100-200mm)

6.Repeatability:               0.01mm / 0.0005in

7.Max Measuring Speed: 1.5m/sec, 60in/sec

8.Measuring System:       Linear Capacitance measuring system

9.Display:                         LCD Screen

10.Construction Material:  Stainless Steel

11.Power:                          One alkaline lithium button cell battery 1.5v,TYPE LR44.

                                      Capacity-180MAH

12.Working  Temperature: 5°c-40°c/41 to 104 degree f

13.Note:                  Accuracy affected in environments exceeding 80% relative humidity.MAINTENANCE INSTRUCTIONS

1. Keep the calliper clean and dry (liquid can damage the slider)

2. Use a clean, dry cloth to clean all surfaces -do not use solvents or solvent based cleaners.

3. To save power, turn off the unit when not in use.

Avoid contact with electricty and /or electronic devices

•BATTERY REPLACEMENT

Flashing display indicates low battery. To replace battery, remove battery cover by sliding cover in

the direction indicated and replace battery with positive side facing out.



TROUBLE SHOOTING

Falure

Cause

Measure

Display flashes

Low battery

Replace battery

Display does not change when

slider is moved

System locked

Remove battery and replace after

30 seconds to reset system

Accuracy less than +/-0.001mm

Dirt in the sensor

Remove slider cover and its assembly,

clean with compress air 5kgs/cm2

No display on LCD

1. improper battery position

2. Low battery

1. Remove battery cover and check

battery position

2. Replace battery.

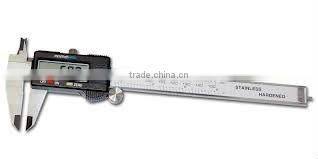

 Digital Vernier Calipers

Digital Vernier Calipers

 Digital Vernier Calipers
