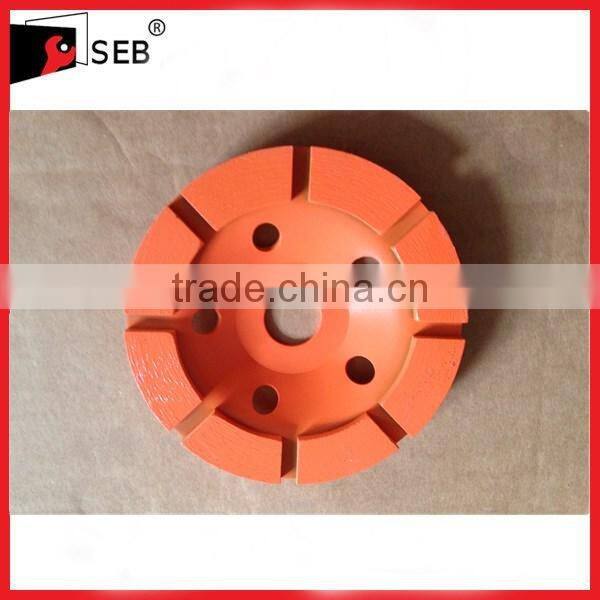

Diamond Concrete Grinding cup wheels
Discription of diamond cup wheels:
For aggressive material removal Large grinding segments with heat treated steel bodies help increase durability and wheel life
This grinding cup wheel diamond coating is great for any kind of masonry grinding, marble, tile, concrete and rock.
Diamond Cup wheel design is great for heavy-duty masonry materials removal.
Cup Wheels are designed to be used on small and large angle grinders. They are designed with an optimized cutting matrix.
Specification of diamond cup wheels:
Application | Diameter | Segment Height (mm) | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Single row diamond grinding cup wheel | 105mm(4”) | 5 | 7 | 8 | M14,5/8”-11,22.23 |
115mm(4.5”) | 5 | 7 | 9 | M14,5/8”-11,22.23 | |
125mm(5”) | 5 | 7 | 10 | M14,5/8”-11,22.23 | |
150mm(6”) | 5 | 7 | 12 | M14,5/8”-11,22.23 | |
180mm(7”) | 5 | 7 | 14 | M14,5/8”-11,22.23 |
Application | Diameter | Segment Height (mm) | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Double row diamond grinding cup wheel | 105mm(4”) | 5 | 7 | 16 | M14,5/8”-11,22.23 |
115mm(4.5”) | 5 | 7 | 18 | M14,5/8”-11,22.23 | |
125mm(5”) | 5 | 7 | 20 | M14,5/8”-11,22.23 | |
150mm(6”) | 5 | 7 | 24 | M14,5/8”-11,22.23 | |
180mm(7”) | 5 | 7 | 28 | M14,5/8”-11,22.23 |
Application | Diameter | Segment Height (mm) | Segment Width(mm) | Segment No. | Arbor (mm) |
Turbo diamond cup wheel | 105mm(4”) | 5 | 20 | Turbo | M14,5/8”-11,22.23 |
125mm(5”) | 5 | 20 | Turbo | M14,5/8”-11,22.23 |
For general grinding applications in both concrete and masonry. Available threaded or non threaded in White or Red grades.
SINGLE ROW FOR FASTER/MORE AGRESSIVE GRINDING OF CONCRETE & MASONRY APPLICATIONS.
Designed for heavy duty material removal and steep slope grinding of concrete and masonry. Available threaded or non threaded in White and Red grades.
The sintered turbo cups are engineered to grind granite, hard stone & refractory. Available in Coarse, Medium and Fine grit, threaded or non threaded.
The turbo wide spaced cups are designed for fast grinding speed in both concrete or masonry. Available threaded or non threaded.
The turbo fan design allows for quick grinding in concrete and granite. Available in both threaded and non threaded cups.
Polycrystalline Diamond grinding cup wheels are widely used in many grinding applications such as removal of epoxy, glue, resin and paint, from concrete coated floors.
The engineered “T” shaped segment allows for smooth grinding performance in many applications such as cured concrete, brick, block and a number of other hard materials.
