Ceramic Abrasive Flap Disc

                Ceramic Abrasive Flap Disc

Applications of Flap Disc:

Deburring,Snagging, Rough and medium grinding of welded seams in one operation, Edge grinding,Rust remova,Working of fillet welds,Beveling. While Flap Discs perform best on stainless steel, their versatility allows them to work effectively on other materials such as carbon stell, aluminum, wood and plastic.

Advantages of Flap disc:

1.Lightweight design reduces operator fatigue

2.East to use - very little surface pressure required

3.Cool cutting permits light contouring and prevents burning

4. Longer life: Withstands wear up to 10 to 20 times longer than conventional fibre discs due to overlapping flap construction

5.Aggressive removal of metal. Equal to Type 27 depressed center wheels with greater safety (does not require tool safety guard)

6.Consistent performance as new granules are continually exposed during the life of the product

7.One-step grind and finish reduces down time and finishing costs

8.Grinding angle of conical shape provides optimum contact between work piece and disc surface

9.Tough construction allows for aggressive edge grindin

Specifications of Flap disc:

1.Aluminum Oxide Flap Disc with Fiberglass Base

Application: suitable for metal, wood .... polishing;

	Inch Size	Metric (mm)	Max.Speed	Material	Grit
	4" x 5/8"	100 x 16mm	15200	Aluminum Oxide	36-120
	4-1/2" x 7/8"	115 x 22mm	13300	Aluminum Oxide	36-120
	5"X7/8"	125x22mm	12200	Aluminum Oxide	36-120
	6"x7/8"	150x22mm	10200	Aluminum Oxide	36-120
	7"x7/8"	180x22mm	8500	Aluminum Oxide	36-120



2. Zirconia Conical Flap Disc with Fiberglass Bas

Application: suitable for stainless steel, inox, glass polishing;

	Inch Size	Metric (mm)	Max.Speed	Material	Grit
	4" x 5/8"	100 x 16mm	15200	Aluminum Oxide	36-120
	4-1/2" x 7/8"	115 x 22mm	13300	Aluminum Oxide	36-120
	5"X7/8"	125x22mm	12200	Aluminum Oxide	36-120
	6"x7/8"	150x22mm	10200	Aluminum Oxide	36-120
	7"x7/8"	180x22mm	8500	Aluminum Oxide	36-120



 3. Silicon Carbide Flap Disc with Fiberglass Base

Application: suitable for marble, granite, concrete... and others stone polishing;

	Inch Size	Metric (mm)	Max.Speed	Material	Grit
	4" x 5/8"	100 x 16mm	15200	Aluminum Oxide	36-120
	4-1/2" x 7/8"	115 x 22mm	13300	Aluminum Oxide	36-120
	5"X7/8"	125x22mm	12200	Aluminum Oxide	36-120
	6"x7/8"	150x22mm	10200	Aluminum Oxide	36-120
	7"x7/8"	180x22mm	8500	Aluminum Oxide	36-120

 4. Aluminum Oxide Flap Disc with Plastic Base

Application: suitable for metal, wood .... polishing;

	Inch Size	Metric (mm)	Max.Speed	Material	Grit
	4" x 5/8"	100 x 16mm	15200	Aluminum Oxide	36-120
	4-1/2" x 7/8"	115 x 22mm	13300	Aluminum Oxide	36-120
	5"X7/8"	125x22mm	12200	Aluminum Oxide	36-120
	6"x7/8"	150x22mm	10200	Aluminum Oxide	36-120
	7"x7/8"	180x22mm	8500	Aluminum Oxide	36-120

 5. Zirconia Conical Flap Disc with Plastic Base

Application: suitable for stainless steel, inox, glass polishing;

	Inch Size	Metric (mm)	Max.Speed	Material	Grit
	4" x 5/8"	100 x 16mm	15200	Aluminum Oxide	36-120
	4-1/2" x 7/8"	115 x 22mm	13300	Aluminum Oxide	36-120
	5"X7/8"	125x22mm	12200	Aluminum Oxide	36-120
	6"x7/8"	150x22mm	10200	Aluminum Oxide	36-120
	7"x7/8"	180x22mm	8500	Aluminum Oxide	36-120

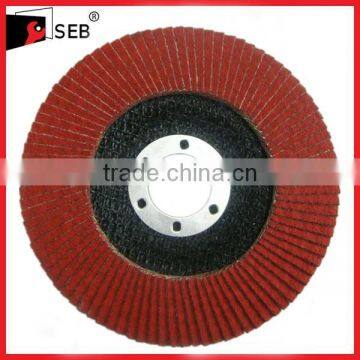

Pictures of Flap disc:
