Angle Grinder Grinding Diamond Wheel
Discription of diamond grinding wheel:
1 Diamond grinding wheels are mainly used for grinding and polishing removal, deburring, chamfering, smoothing and shaping stone products such as Granite ,Marble, Sandstone, Limestone, etc aggressively material smooth finish.Also Ideal for Grinding Concrete Porcelain tiles, masonry, artificial stone surfaces as well as stock removal.
A double row of diamonds rims on these blades provides for heavy material removal and provides longer life.
2.Including single row,double row and turbo styles.
3. Fast cutting with minimal dust ,used dry or wet grinding.
4.High working efficiency and using easily .
5.Convenient installation with universal connection.
6.Low-noise,no-dust,friendly surroundings,safety operation.
7.long working life and hardness
8.We can make the customers' logo.
Specification of diamond grinding wheel:
Application | Diameter | Segment Height (mm) | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Single row diamond grinding wheel | 105mm(4") | 5 | 7 | 8 | M14,5/8"-11,22.23 |
115mm(4.5") | 5 | 7 | 9 | M14,5/8"-11,22.23 | |
125mm(5") | 5 | 7 | 10 | M14,5/8"-11,22.23 | |
150mm(6") | 5 | 7 | 12 | M14,5/8"-11,22.23 | |
180mm(7") | 5 | 7 | 14 | M14,5/8"-11,22.23 |
Application | Diameter | Segment Height (mm) | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Double row diamond grinding wheel | 105mm(4") | 5 | 7 | 16 | M14,5/8"-11,22.23 |
115mm(4.5") | 5 | 7 | 18 | M14,5/8"-11,22.23 | |
125mm(5") | 5 | 7 | 20 | M14,5/8"-11,22.23 | |
150mm(6") | 5 | 7 | 24 | M14,5/8"-11,22.23 | |
180mm(7") | 5 | 7 | 28 | M14,5/8"-11,22.23 |
Application | Diameter | Segment Height (mm) | Segment Width(mm) | Segment No. | Arbor (mm) |
Turbo diamond grinding wheel | 105mm(4") | 5 | 20 | Turbo | M14,5/8"-11,22.23 |
125mm(5") | 5 | 20 | Turbo | M14,5/8"-11,22.23 |

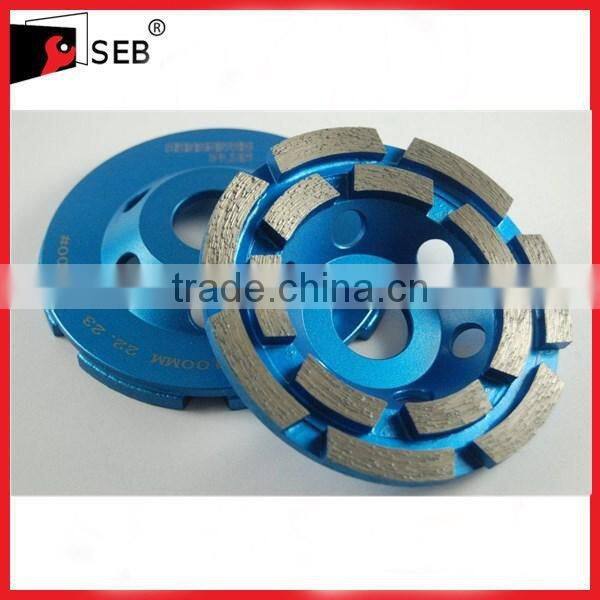

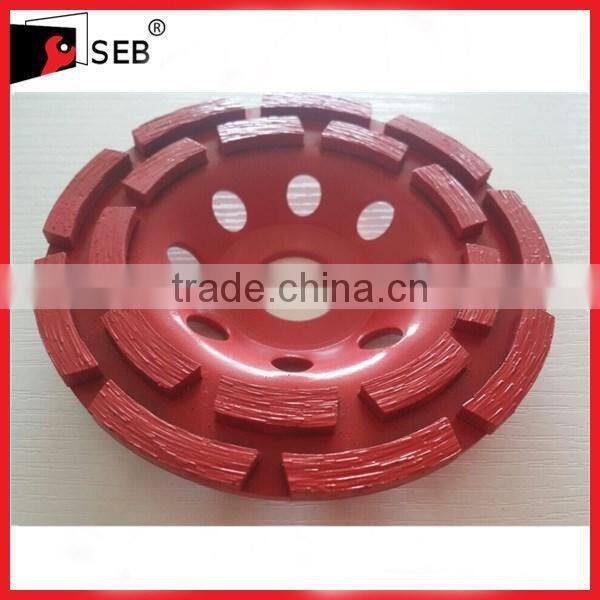

For general grinding applications in both concrete and masonry. Available threaded or non threaded in White or Red grades.

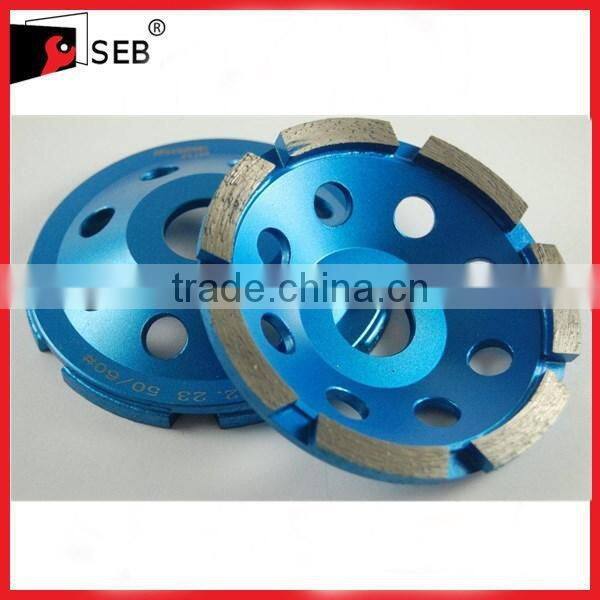

SINGLE ROW FOR FASTER/MORE AGRESSIVE GRINDING OF CONCRETE & MASONRY APPLICATIONS
Designed for heavy duty material removal and steep slope grinding of concrete and masonry. Available threaded or non threaded in White and Red grades.
The sintered turbo cups are engineered to grind granite, hard stone & refractory. Available in Coarse, Medium and Fine grit, threaded or non threaded.

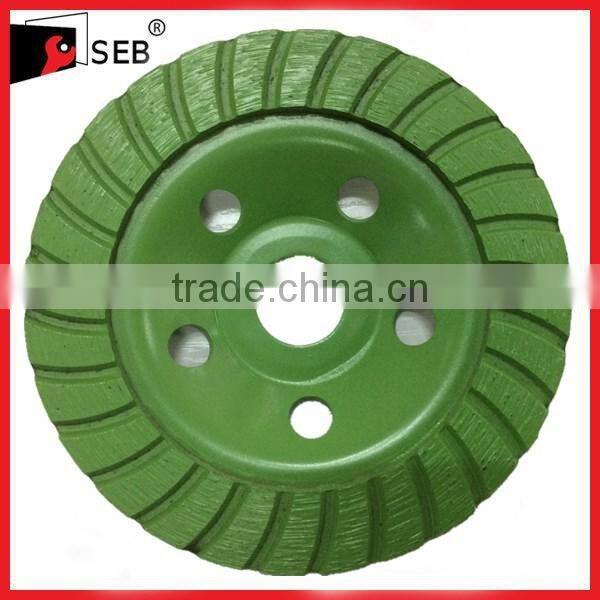

The turbo wide spaced cups are designed for fast grinding speed in both concrete or masonry. Available threaded or non threaded.

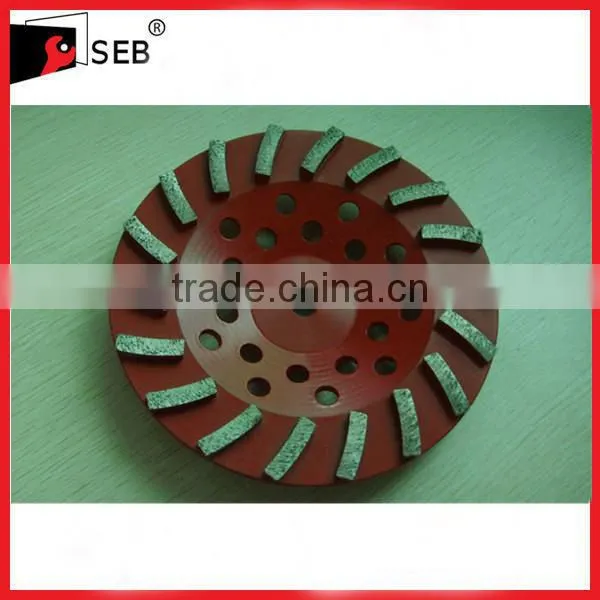

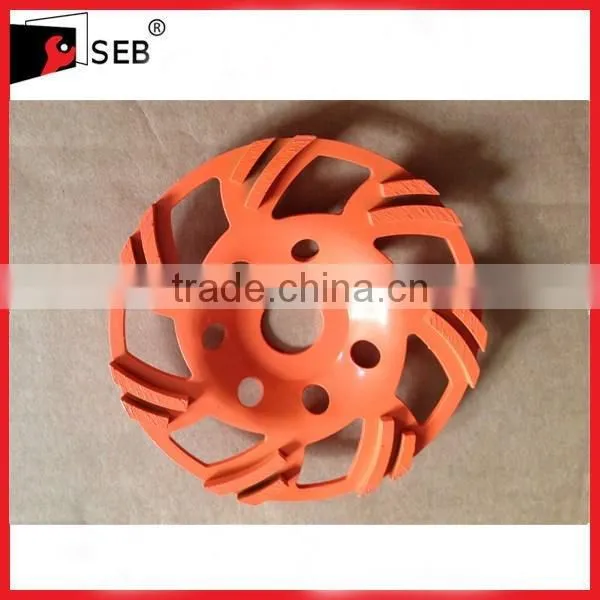

The turbo fan design allows for quick grinding in concrete and granite. Available in both threaded and non threaded cups.

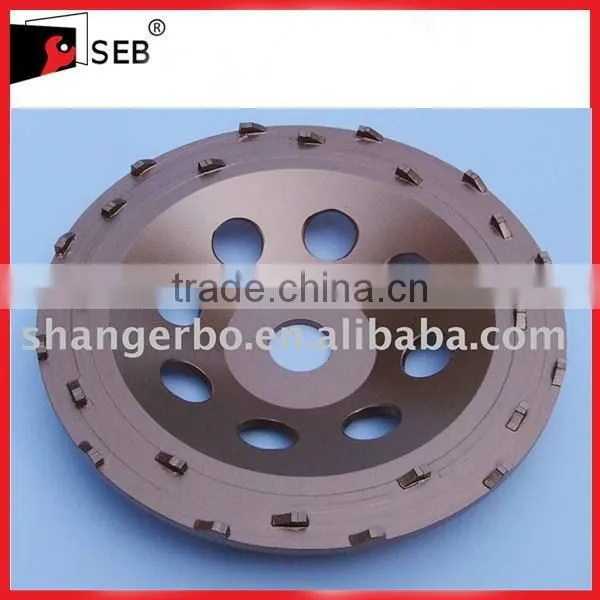

Polycrystalline Diamond grinding cup wheels are widely used in many grinding applications such as removal of epoxy, glue, resin and paint, from concrete coated floors.

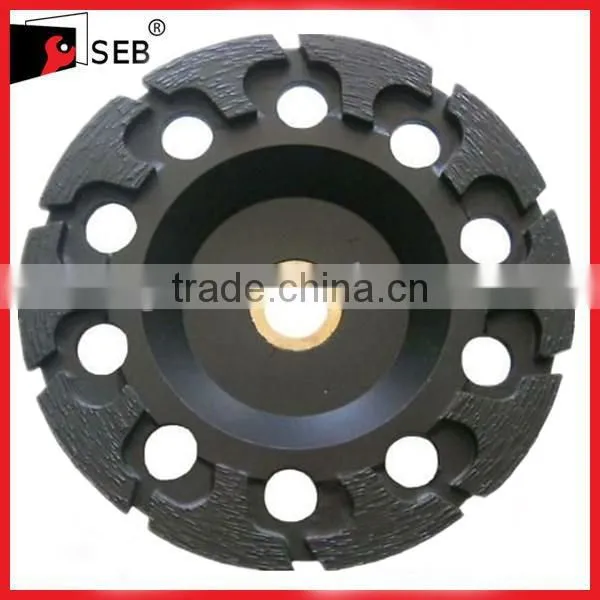

The engineered "T" shaped segment allows for smooth grinding performance in many applications such as cured concrete, brick, block and a number of other hard materials.
