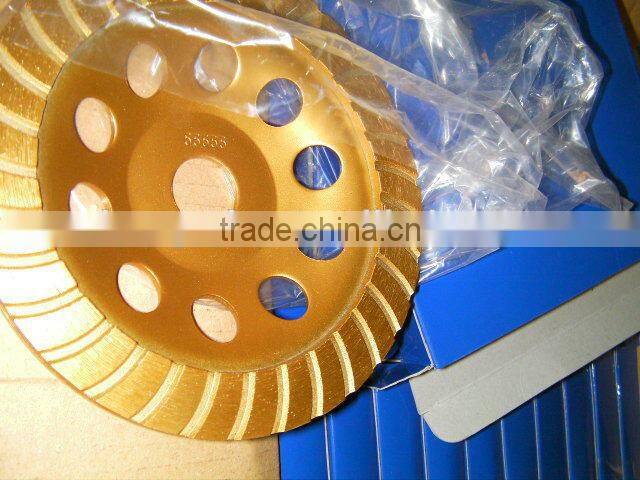

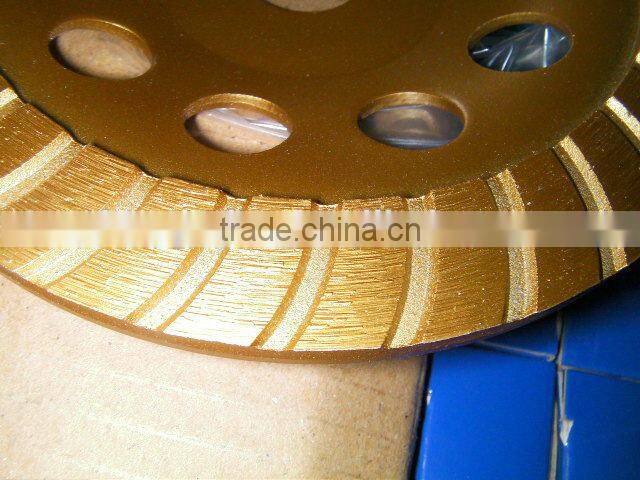

4" Turbo Diamond Cup Wheel Steel Based
Description of diamond cup wheel:
Diamond grinding wheels, diamond grinding cup wheels, diamond shaping wheels, brazed diamond cup wheels, Resin filled diamond cup wheels..no matter what the name the purpose is the same, the grinding, shaping, flattening, or smoothing of granite, marble, porcelain, concrete, and other natural or man-made materials. We offers a full line of diamond grinding and shaping wheels for many applications. These grinding wheels come in many different sizes. remember to avoid excessive feeds. Every grinding operation is different. What is an excessive removal rate on one operation may be acceptable on another. Excessive feed on a given operation will cause premature wheel wear. Excessively high feed rates are characterized by a harsh grinding sound, chatter, burn, high sheer wear rate, vibration.
Features of our diamond cup wheel:
Including single row,double row,turbo and other special types
Fast cutting with minimal dust ,used dry or wet grinding
High working efficiency and using easily
Convenient installation with universal connection
Low-noise,no-dust,friendly surroundings,safety operation
long working life and hardness
We can make the customers' logo.
Specification of diamond cup wheel:
Application | Diameter | Segment Height (mm) | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Single row diamond cup wheel | 105mm(4") | 5 | 7 | 8 | M14,5/8"-11,22.23 |
115mm(4.5") | 5 | 7 | 9 | M14,5/8"-11,22.23 | |
125mm(5") | 5 | 7 | 10 | M14,5/8"-11,22.23 | |
150mm(6") | 5 | 7 | 12 | M14,5/8"-11,22.23 | |
180mm(7") | 5 | 7 | 14 | M14,5/8"-11,22.23 |
Application | Diameter | Segment Height (mm) | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Double row diamond cup wheel | 105mm(4") | 5 | 7 | 16 | M14,5/8"-11,22.23 |
115mm(4.5") | 5 | 7 | 18 | M14,5/8"-11,22.23 | |
125mm(5") | 5 | 7 | 20 | M14,5/8"-11,22.23 | |
150mm(6") | 5 | 7 | 24 | M14,5/8"-11,22.23 | |
180mm(7") | 5 | 7 | 28 | M14,5/8"-11,22.23 |
Application | Diameter | Segment Height (mm) | Segment Width(mm) | Segment No. | Arbor (mm) |

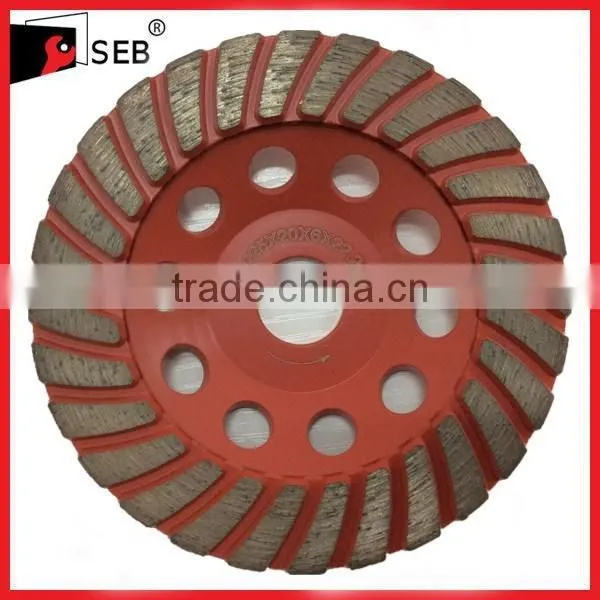

Turbo diamond cup wheel | 105mm(4") | 5 | 20 | Turbo | M14,5/8"-11,22.23 |
125mm(5") | 5 | 20 | Turbo | M14,5/8"-11,22.23 |
For general grinding applications in both concrete and masonry. Available threaded or non threaded in White or Red grades.Single row diamond grinding wheels are FOR FASTER/MORE AGRESSIVE GRINDING OF CONCRETE & MASONRY APPLICATIONS.
Designed for heavy duty material removal and steep slope grinding of concrete and masonry. Available threaded or non threaded in White and Red grades.
The sintered turbo cups are engineered to grind granite, hard stone & refractory. Available in Coarse, Medium and Fine grit, threaded or non threaded.
The turbo wide spaced cups are designed for fast grinding speed in both concrete or masonry. Available threaded or non threaded.
The turbo fan design allows for quick grinding in concrete and granite. Available in both threaded and non threaded cups.
Polycrystalline Diamond grinding cup wheels are widely used in many grinding applications such as removal of epoxy, glue, resin and paint, from concrete coated floors.
The engineered "T" shaped segment allows for smooth grinding performance in many applications such as cured concrete, brick, block and a number of other hard materials.

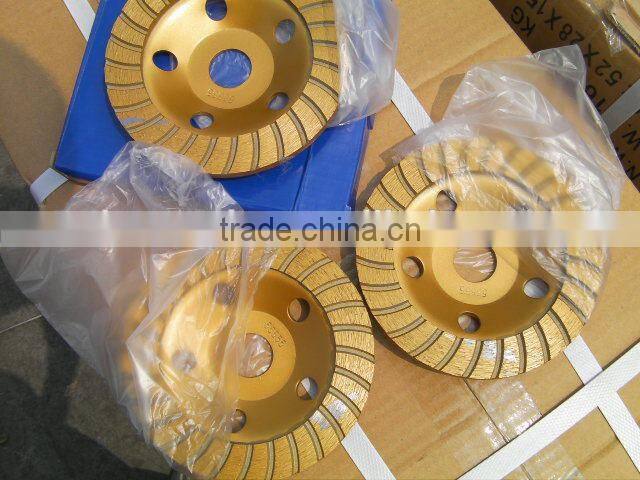

Packaging of diamond cup wheel:
Each diamond cup wheel is packed in an inner cardboard case, some inner cases in an export standard cartons, then reinforced with straps.
Delivery of diamond cup wheel:
Usually we can make shipment in 15-30 days after receiving your payment or L/C.
Payment of diamond cup wheel:
We use T/T or 30% payment in advance and the rest 70% paid when receiving the COPY of B/L.
