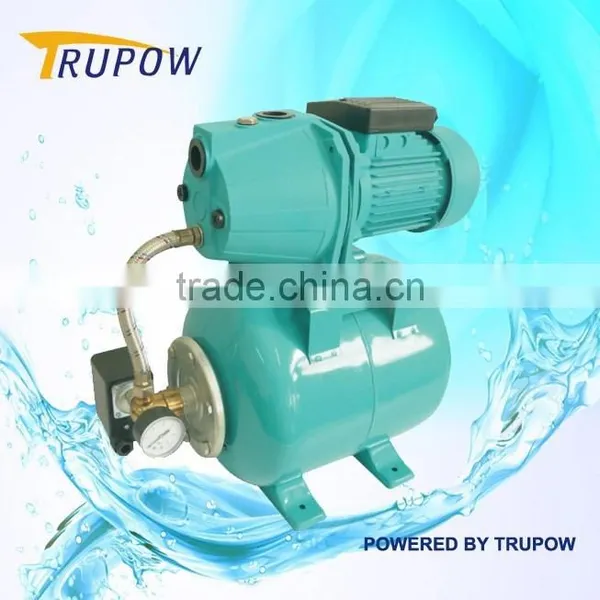

230V Pressure Tank And Cast Iron pumps TGP1300C
garden jet pump with pressure tank pump
Operating conditions:
1. ing pressure 8 bar
2. Liquid temperature up to 60ìC
3. Ambient temperature up to 40ìC
4. Total suction lift up to 9m 5. Continuous duty
Motor:
1. Two-Pole induction motor(n=2900r.p.m.)
2. Insulation Class B/F
3. Protection IPX4
Material:
1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Noryl/Brass
4. Diffuser: Noryl
5. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless Steel
6. Mechanical seal: Carbon/Ceramic
Application:
-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Able to pump up to mt.9 depth and work perfectly even in soda
-water -Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Technical Data
Model | Power | Max. Flow (L/h) | Max.Head (m) | Max.Suct. (m) | Inlet/Outlet (inch) | G.W./N/W. (kg) | Packing size(mm) | QTY/20”CTR(pc) | |
KW | HP | ||||||||
CGP900-JF1C | 0.9 | 1.2 | 3200 | 42 | 8 | 1”x1” | 19/17.5 | 460x280x540 | 420 |
CGP1100-JF1C | 1.1 | 1.5 | 3400 | 45 | 8 | 1”x1” | 19.8/18 | 460x280x540 | 420 |
CGP1300-JF1C | 1.3 | 1.7 | 3600 | 48 | 8 | 1”x1” | 20/18.5 | 460x280x540 | 420 |
