Home > Products > Surface Pumps > Pressure Booster System

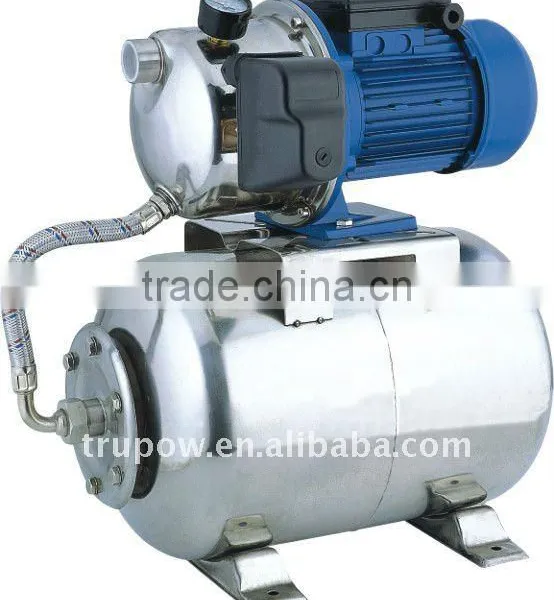

Pressure Booster System
USD $81.5 - $85
/ Piece
300 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- NINGBO
- T/T
You May Like
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | TRUPOW | Model Number: | AUTOSJET-60A~100A |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
Pressure: | High Pressure | Application: | Other, Gardening |
Product Description
Specifications
Pressure Booster SystemTank: 24L(STAINLESS STEEL)
Flexible hose: 1/2" X 1"
Pressure gauge: 7bar
Cable: 1.5 meters
Pressure Booster System Specification:
MODEL:
AUTOSJET-60A: 0.5HP
AUTOSJET-80A: 0.75HP
AUTOSJET-100A: 1.0HP
ACCESSORY:
TANK: 24L (STAINLESS STEEL)
FLEXIBLE HOSE: 1/2"×1"
PRESSURE SWITCH: PC-2/PC-5/PC-9
PRESSURE GAUGE: 7BAR (100PSI)
CABLE: 1.5 METERS
Operating limits:
Liquid temperature up to 60°C
Maximum ambient temperature 40°C
MODEL | POWER | MAX.FLOW (L/min) | MAX.HEAD (m) | INLET/OUTLET (inch) | MAX .SUCT (m) | |
Kw | Hp | |||||
AUTOSJET-60A | 0.37 | 0.5 | 40 | 35 | 1"X1" | 9 |
AUTOSJET-80A | 0.55 | 0.75 | 50 | 40 | 1"X1" | 9 |
AUTOSJET-100A | 0.75 | 1 | 60 | 45 | 1"X1" | 9 |
