Single Phase Water Pump for Deep Well

Single phase water pump for deep well

Pump

Qmax: 3.5 ( m3/h )

Capacity from 1 to 2 ( m3/h )

Total head from 140 to 20 ( m )

Motor

Continuous service.

Power: 1 to 2 HP ( Single phase )

            1 to 2 HP ( Three phase )

Insulation class: B

Protection grade: IP 68

Maximum diameter: 93 mm

Highest temperature of liquid: 35^oC

Main uses

For 4’’ wells.

Pumping clear water into: Detached house

-Country houses and farms- cottages.

Moving water in fountains.

Rain irrigation.

Feeding pressure systems.

Filling and emptying tanks.

Structure features

Shaft, jacket and hydraulics in stainless steel.

Brass impeller.

Built- in non- return valve.

Thermoplastic parts.

Oil-cooled motor with compensating diaphragm.

Graphite mechanical seal protected by sand proof ring.

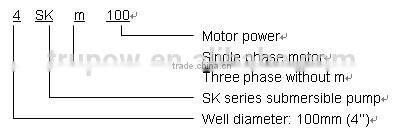

4SKm series parts are non-toxic and non-polluting

Product Detail Photos:

                                 PERFORMANCE TABLE:                                  rpm:2900     Outlet: G1’’
