Advanced Stainless Steel Multistage Deep-well Submersible Pumps

Advanced Stainless Steel Multistage Deep-well submersible pumps

Operating conditions:

-Liquid temperature up to 40^oC -Submersion depth 40m -

Minimum internal diameter of well: 102mm. -Continuous duty.

Motor:

-Tow-pole induction motor (n=2850r.p.m)

-Built-in over load motor protector

-Insulation Class B/F -Protection IPX8

Material:

-External pump body: Stainless Steel

-Suction strainer: Stainless Steel

-Impeller and diffusors: Noryl

-Bearing brackets: Brass

-Shaft: Stainless Steel

-Motor housing: Stainless Steel
-Mechanical seal: Ceramic/Graphite

Application:

-Multistage submersible water pumps with radial closed impeller conceived in order to solve any problem of clean water conveyance.

-Suitable for irrigation, and pressure systems and pressure systems and generally for civil and industrial purposes.

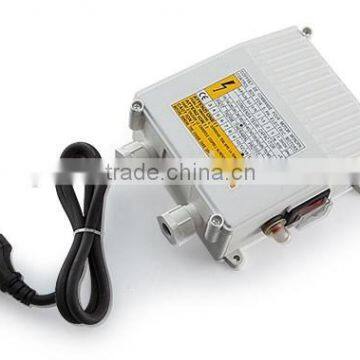

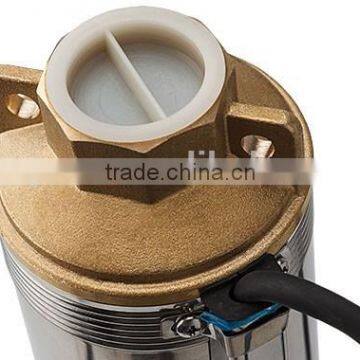

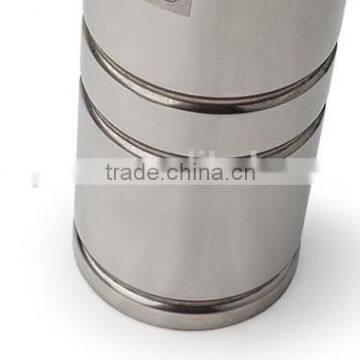

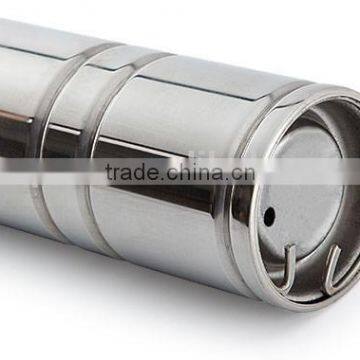

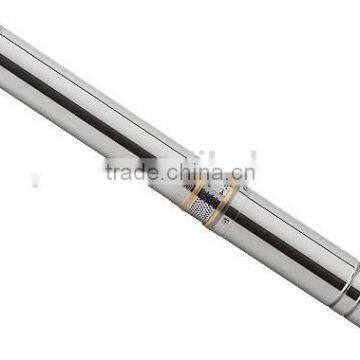

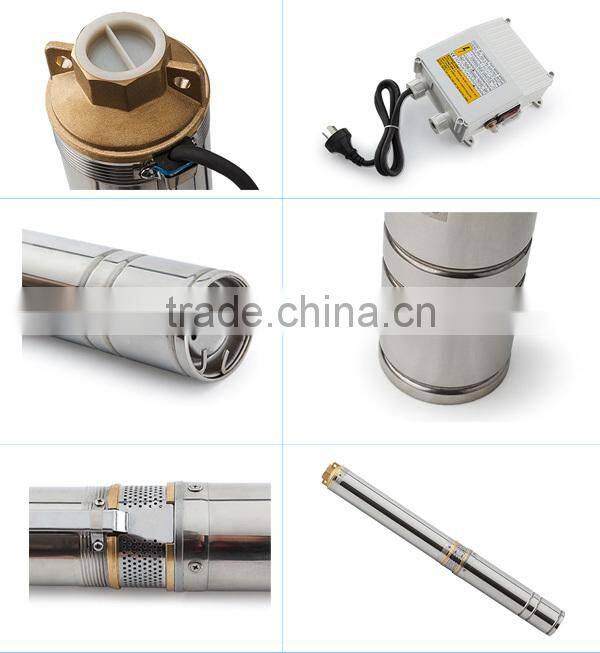

Prodct photo

Workshop

Exhibition

Certification

You can believe&choose us :

-- 11 years experiences in supplying pumps to Europe, Australia, USA, Russia.

    professional design team to design anything all according to your requirements,such as the package,etc.

    experienced technology workers to guarantee the products quality.

-- strong quality control system:

    Raw material control / process control/component quality contorl/ finished product quality inspection/ mass production

    spot check/ company check

--  Best after-sale service, offer you 1 year warranty.

     you will be 100% satisfied with our products.
