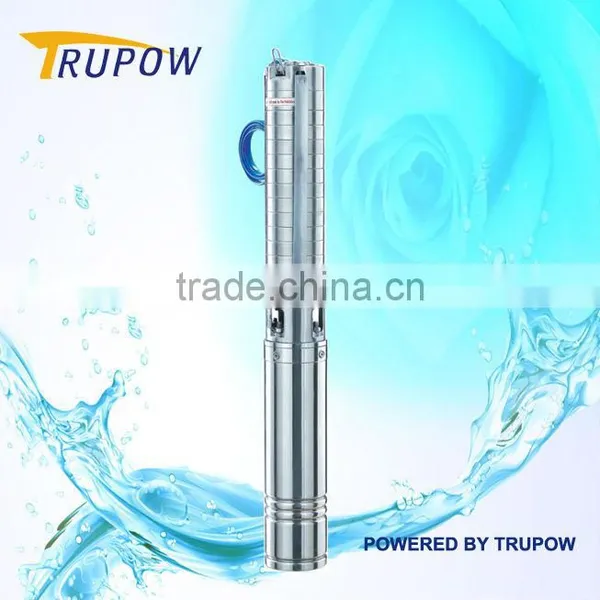

4SPD206-0.37~4SPD248-2.2 HOT SALE PRESSURE DEEP-WELL SUBMERSIBLE PUMP
hot sale pressure pump
|
| N=2850r/min Outlet:G1 1/4”~1 1/2” |
| |||||||||
Flow (l/min) | ||||||||||||
0 | 15 | 25 | 33 | 40 | 45 | |||||||
Flow (m³/h) | ||||||||||||
0 | 0.9 | 1.5 | 2 | 2.4 | 2.7 | |||||||
Type | Motor power |
| Dimensions | |||||||||
Single phase 220-240v~50Hz | Single phase 380-415v~50Hz | Kw | Hp | Head (m) | Length mm | Weight mm | ||||||
4SPD206-0.37 |
| 0.37 | 0.5 | 37 | 34 | 30 | 23 | 17 | 10 | 632 | 10.5 | |
4SPD209-0.37 |
| 0.37 | 0.75 | 55 | 51 | 45 | 35 | 25 | 14 | 695 | 13 | |
4SPD213-0.55 |
| 0.55 | 1 | 80 | 73 | 64 | 51 | 36 | 21 | 804 | 15 | |
4SPD218-0.75 |
| 0.75 | 1.5 | 110 | 101 | 89 | 72 | 50 | 29 | 929 | 17 | |
4SPD223-1.1 | 4SP223-1.1 | 1.1 | 1.5 | 141 | 129 | 114 | 91 | 64 | 37 | 1059 | 19 | |
4SPD228-1.5 | 4SP228-1.5 | 1.5 | 2 | 171 | 157 | 138 | 110 | 78 | 45 | 1199 | 22 | |
4SPD233-1.5 | 4SP233-1.5 | 1.5 | 2 | 202 | 186 | 163 | 131 | 92 | 53 | 1304 | 23 | |
4SPD240-2.2 | 4SP240-2.2 | 2.2 | 3 | 245 | 225 | 198 | 150 | 112 | 65 | 1508 | 27 | |
4SPD248-2.2 | 4SP248-2.2 | 2.2 | 3 | 294 | 270 | 237 | 185 | 134 | 78 | 1676 | 28.7 | |
COMPONENTS:
-Motor
-Pump
MATERIAL:
-External pump body: Stainless Steel
-Suction strainer: Stainless Steel
-Impeller: PPO/SS
-Bearing brackets: Brass
-Shaft: Stainless Steel
-Motor housing: Stainless Steel
-Mechanical seal: Special seal for deep well(carbon-SIC/TC)
FEATURE:
-Pump
Qmax: 7.8 m3/h
Capacity from 2 to 4 m3/h
Total head from 75 to13m
-Motor
Power: 0.55 to 1.5 kw
Insulation class: B
Protection grade: IP68
Maximum diameter: 126mm
APPLICATION:
- Used for pumping water in the deep-well
OPERATING LIMIT:
-Highest temperature of liquid:35°c
