CE Standard Domestic Inox Water Pump

Specifications

Dometic Inox Water Pump
1.For clean water
2.Economic and popular model
3.Ideal household electric pump

Domestic Inox Water Pump Specification:



Operating Limits:
-Fluid temperature up to  35°C
-Maximum ambient temperature  40°C

Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IP68

Materials:
-Pump body: Stainless steel
-Impeller: PP/stainless steel
-Shaft with rotor: 45# Carbon Steel/Stainless iron

Application:
-Hand-carry submersible automatic water pumps.
-Able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation.

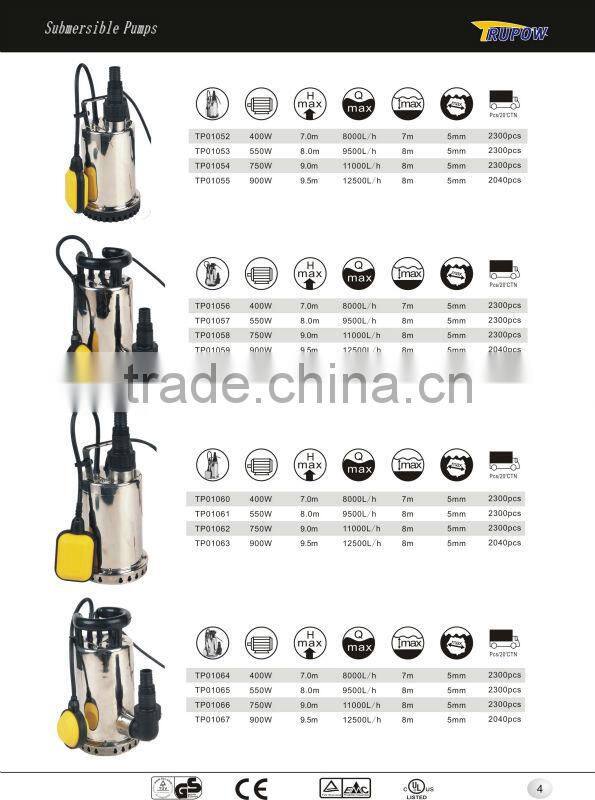

Technical Data:



MODEL	POWER (W)	MAX HEAD (M)	MAX FLOW (L/H)	MAX SUB. DEPTH (M)	MAX GRAIN SIZE	CABLE AND LENGTH (M)	QTY/20”CTN (PC)
TP01052	400	7.0	8000	7	5MM	H05RN-F3G0.75mm2X10m	2300
TP01053	550	8.0	9500	7	5MM	H05RN-F3G1.0mm2X10m	2300
TP01054	750	9.0	11000	7	5MM	H07RN-F3G1.0mm2X10m	2300
TP01055	900	9.5	12500	7	5MM	H07RN-F3G1.0mm2X10m	2040
