Statinless Steel Mini Submersible Pump
- Shanghai/Ningbo
- T/T L/C Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TRUPOW | |
| Model Number | TP01316 | Theory | Electromagnetic Pump | |
| Structure | Single-stage Pump | Usage | Other, Water, For dirty water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | Low Pressure | |
| Application | Submersible |
Product Description

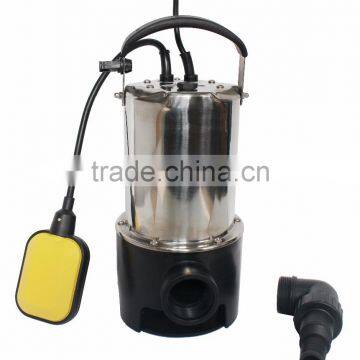

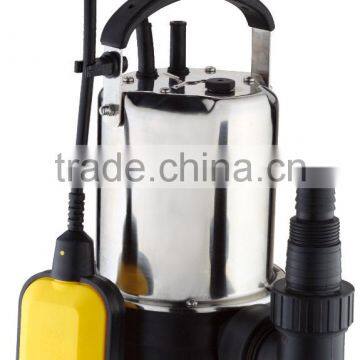

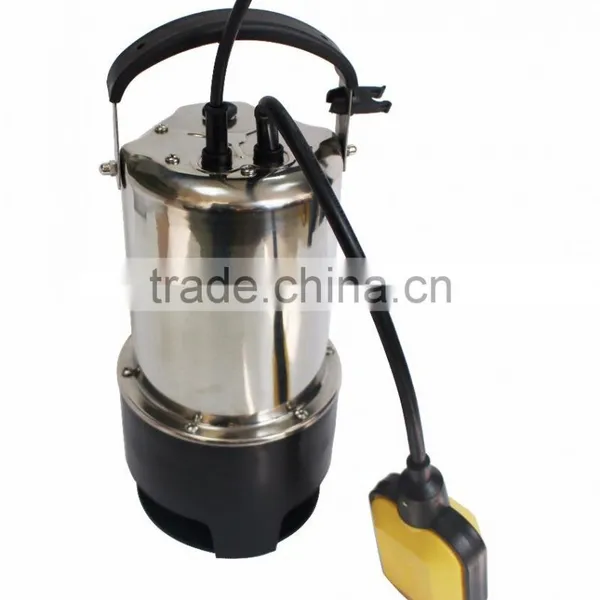

Statinless steel mini submersible pump
It is ideal for general submersible water applications such as able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation. emptying spas, hot tubs, pools, flooded basements or garden.
Comes complete with automatic float switch which will turn the pump off when the water has been emptied.
Please note that it is not suitable for 24 hour continuous operation such as powering garden water features or fountains as other sellers may imply.
Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IPX8
Materials:
-Pump body: PP
-Impeller: PPO/stainless steel(optional)
-Shaft with rotor: 45# Carbon Steel/Stainless iron(optional )
Application:
-Hand-carry submersible automatic water pumps.
-Able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation.
Technical Data
MODEL | POWER (W) | MAX HEAD (M) | MAX FLOW (L/H) | MAX SUB. DEPTH (M) | MAX GRAIN SIZE | CABLE AND LENGTH (M) | QTY/20”CTN (PC) |
TP01316 | 550 | 7.0 | 10500 | 7 | 35MM | H05RN-F3G1.0mm2X10m | 1800 |
TP01317 | 650 | 7.5 | 11500 | 7 | 35MM | H05RN-F3G1.0mm2X10m | 1800 |
TP01318 | 750 | 8.0 | 12500 | 7 | 35MM | H07RN-F3G1.0mm2X10m | 1800 |
TP01319 | 810 | 8.0 | 13000 | 7 | 35MM | H07RN-F3G1.0mm2X10m | 1800 |
TP01320 | 900 | 9.0 | 14000 | 7 | 35MM | H07RN-F3G1.0mm2X10m | 1800 |
TP01321 | 1100 | 9.5 | 15000 | 7 | 35MM | H07RN-F3G1.0mm2X10m | 1800 |

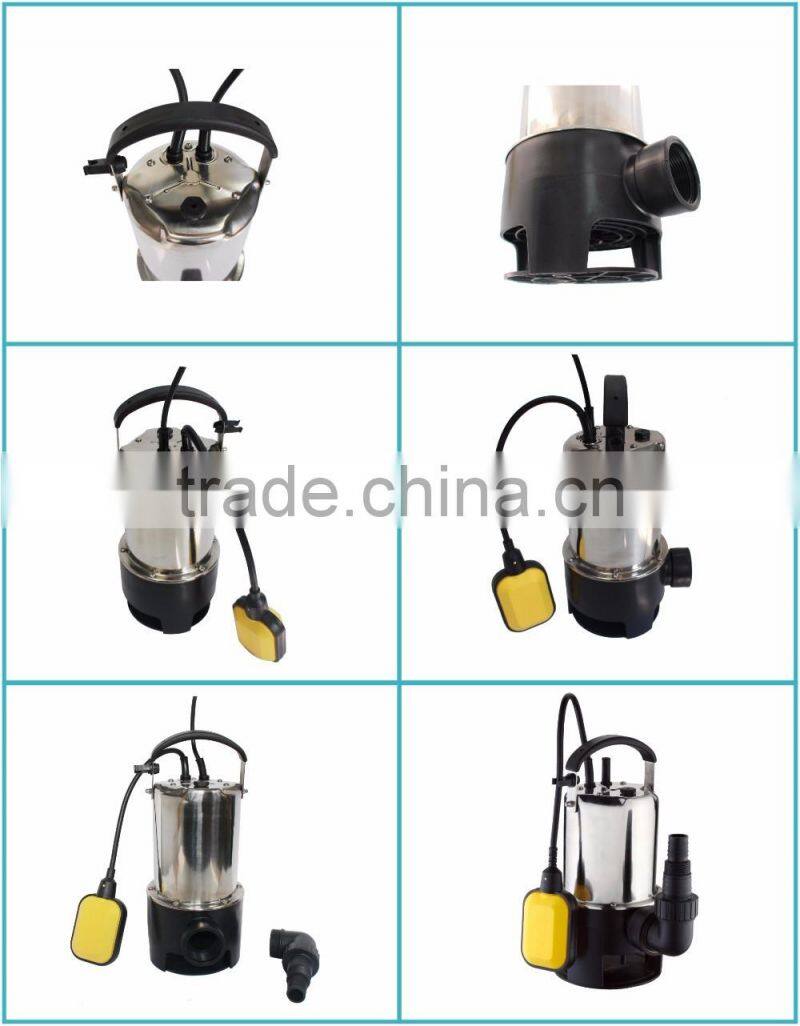

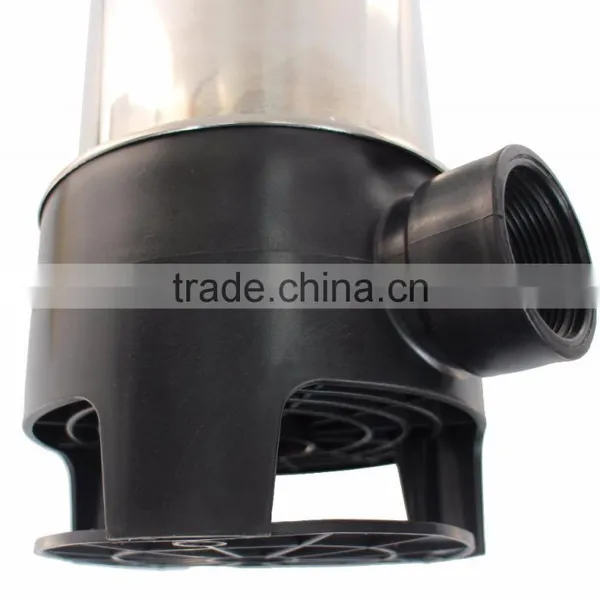

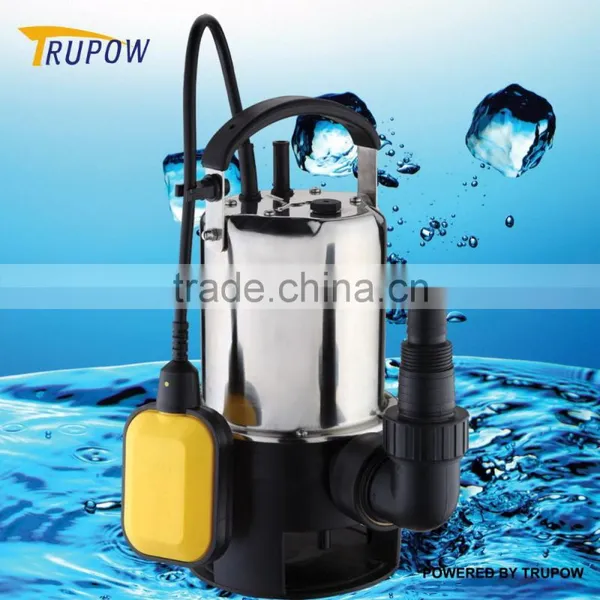

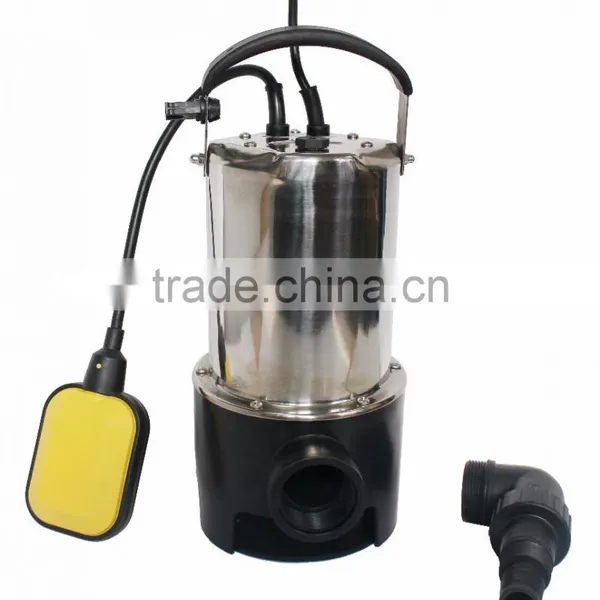

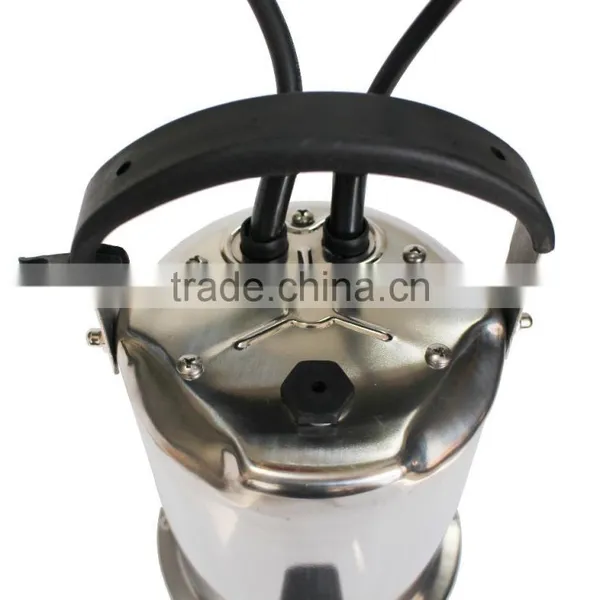

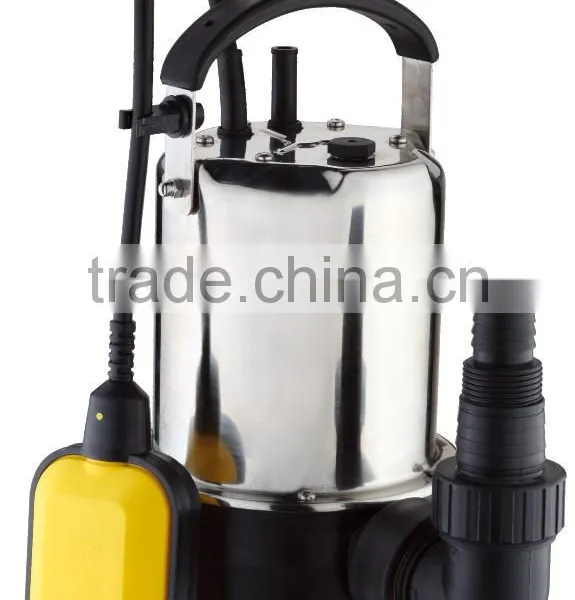

Product photo
