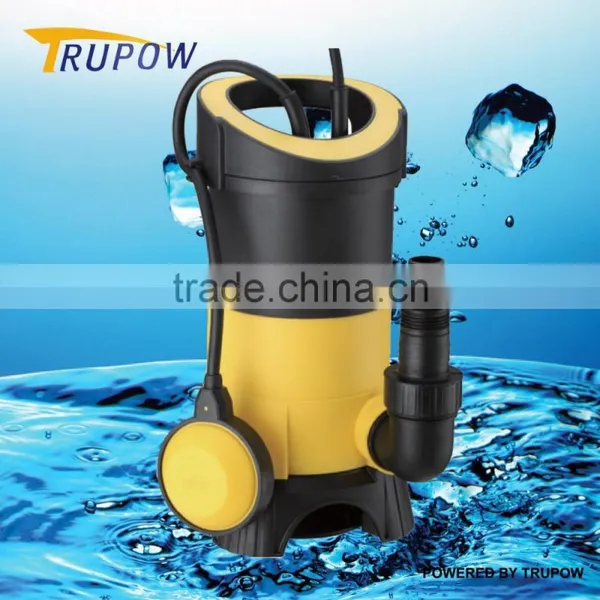

750w Electric waste water submersible pump

Specifications

Electric waste water submersible pump, with back impeller suitable to lift waste liquids even with suspended solids.

Electric waste water submersible pump Details:



Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C



Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IPX8

Materials:
-Pump body: PPO
-Impeller: PPO/stainless steel
-Shaft with rotor: 45# Carbon Steel/Stainless iron



Technical Description:



• 750W Dirty Water Pump
• Plastic Body
• Fully Submersible
• Fully Automatic
• Submerges to 8m
• Capable of dealing with debris (up to 35mm)
• Floating switch adjustment system
• Automatic shut down system
• Fitting for Hose or Direct Pipe Connection

• Rated Power: 750W
• Max. delivery capacity: 13000L/H
• Max. Pressure: 0.80bar
• Max. delivery height: 9.0m
• Max. submersion depth: 8m
• Flat submersion height approx: 5mm
• Contaminated water with particle size of max.: 35mm
• Fitting: 38mm (3/2")-/25mm(1") - universal fitting, option hose connection system parts
• Min. water level for operation: 7cm
• Weight approx: 4.8kg
• Max. media temperature: 35 °C
• Cable Length: 10 Meters

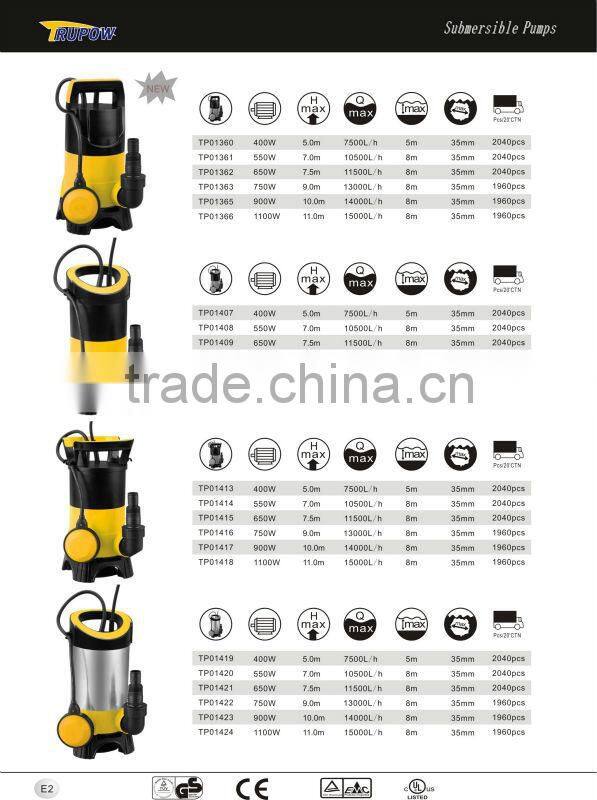

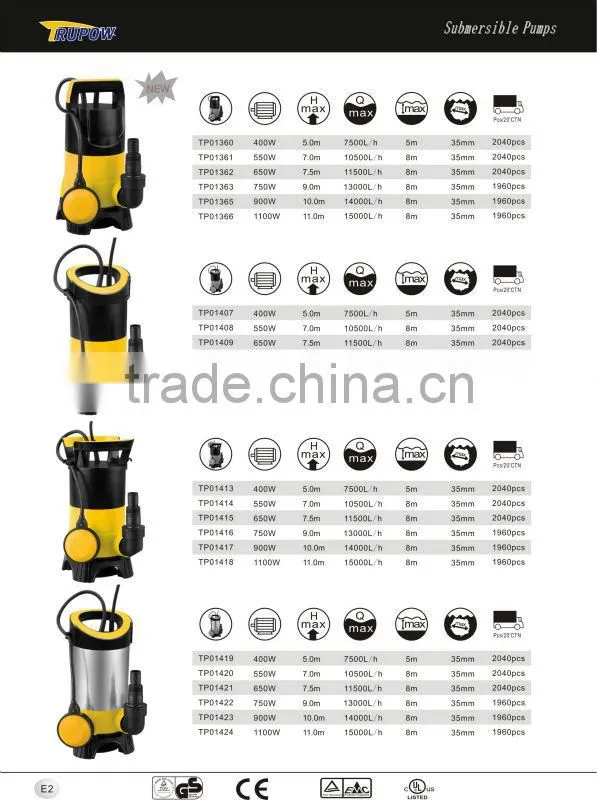

MODEL	POWER (W)	MAX HEAD (M)	MAX FLOW (L/H)	MAX SUB. DEPTH (M)	MAX GRAIN SIZE	CABLE AND LENGTH (M)	QTY/20”CTN (PC)
TP01407	400	5.0	7500	5	35MM	H05RN-F3G0.75mm2X10m	2040
TP01408	550	7.0	10500	7	35MM	H05RN-F3G1.0mm2X10m	2040
TP01409	650	7.5	11500	7	35MM	H05RN-F3G1.0mm2X10m	2040
TP01410	750	9.0	13000	7	35MM	H07RN-F3G1.0mm2X10m	1960
TP01411	900	10.0	14000	7	35MM	H07RN-F3G1.0mm2X10m	1960
TP01412	1100	11.0	15000	7	35MM	H07RN-F3G1.0mm2X10m	1960
