New Type Submersible Clean Water Pump For Garden Irrgation

Specifications

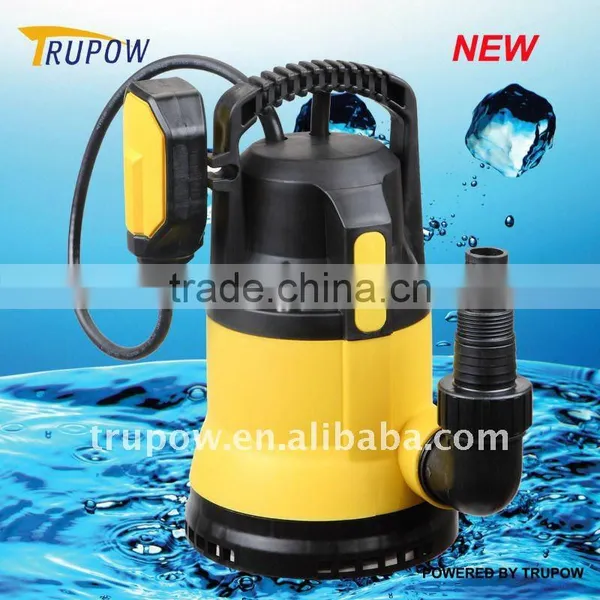

Submersible Clean Water Pump
1.for garden irrigation.
2.Ideal household electric pump

Submersible Clean Water Pump For Garden Irrgation



Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C

Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IPX8

Materials:
-Pump body: PP
-Impeller: PP/stainless steel if request
-Shaft with rotor: 45# Carbon Steel/Stainless steel

Application:
-Hand-carry submersible automatic water pumps.
-Able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation.



-The Clean Water Submersible Pump is ideal for numerous applications such as draining flooded laundry, bathroom, basement or garage, emptying rainwater tanks, pools and spas and transferring water for domestic irrigation.



Overview:

Ideal for numerous applications

Adjustable water outlet compatible with 25/35mm tubing and 25mm tap adaptors

Float switch automatically turns off pump once minimum water level is reached

Thermal overload protection protects internal components by automatically shutting off motor in the event of overheating



MODEL	POWER (W)	MAX HEAD (M)	MAX FLOW (L/H)	MAX SUB. DEPTH (M)	MAX GRAIN SIZE	CABLE AND LENGTH (M)	QTY/20CTN (PC)
TP01265	250	6.0	5000	5	5MM	H05RN-F3G0.75mm2X10m	2300
TP01266	350	7.0	6000	7	5MM	H05RN-F3G0.75mm2X10m	2300
TP01267	400	7.5	7000	7	5MM	H05RN-F3G0.75mm2X10m	2300
TP01268	500	8.0	9000	7	5MM	H05RN-F3G1.0mm2X10m	2300
TP01269	550	8.5	9500	7	5MM	H05RN-F3G1.0mm2X10m	2300
TP01270	750	9.0	11500	7	5MM	H07RN-F3G1.0mm2X10m	2300
TP01271	810	9.5	12000	7	5MM	H07RN-F3G1.0mm2X10m	2300
TP01272	900	10.0	13000	7	5MM	H07RN-F3G1.0mm2X10m	2300
