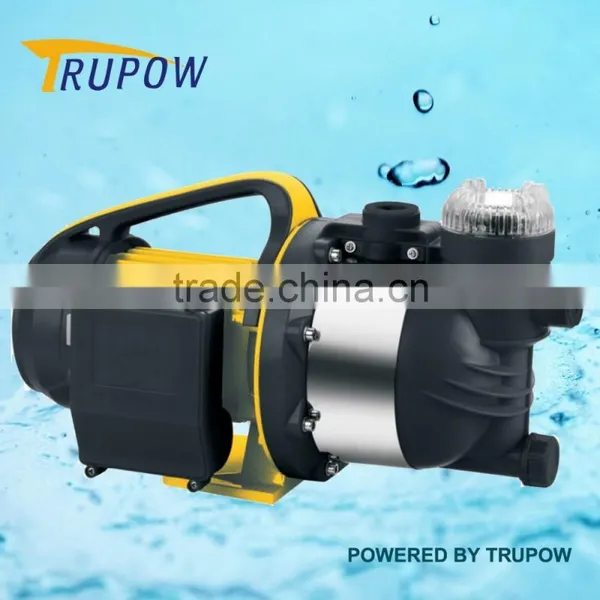

Help CenterHigh Capacity Garden Electric Jet Pump
Related Products
-
600W Easy Carry Self Priming Garden Water Jet Pump PriceUS$ 23.5 - 31.2MOQ: 20 Pieces -
800W Economic Type Electric Stainless Steel Garden Water Pump For Domestic HouseUS$ 25.6 - 38.7MOQ: 10 Pieces
-
Garden Pump With Pressure SystemUS$ 46.5 - 52.5MOQ: 100 Pieces
-
Garden Pump With Booster SystemUS$ 63.2 - 71.5MOQ: 100 Pieces
-
High Pressure Garden Water Tank Pressure PumpUS$ 61.5 - 70MOQ: 100 Pieces
Specifications
garden electric jet pump, with a very high hydraulic performance and a considerable pressure capacity.High capacity garden electric jet pump Specification:
Operating conditions:
1. ing pressure 8 bar
2. Liquid temperature up to 60ìC
3. Ambient temperature up to 40ìC
4. Total suction lift up to 9m
5. Continuous duty
Motor:
1. Two-Pole induction motor(n=2900r.p.m.)
2. Insulation Class B/F
3. Protection IPX4
Material:
1. Pump body: s/s + plastic
2. Motor Support: Aluminum
3. Impeller: Noryl
4. Diffuser: Noryl
5. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless Steel
6. Mechanical seal: Carbon/Ceramic
Application:
-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Able to pump up to mt.9 depth and work perfectly even in soda-water
-Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.

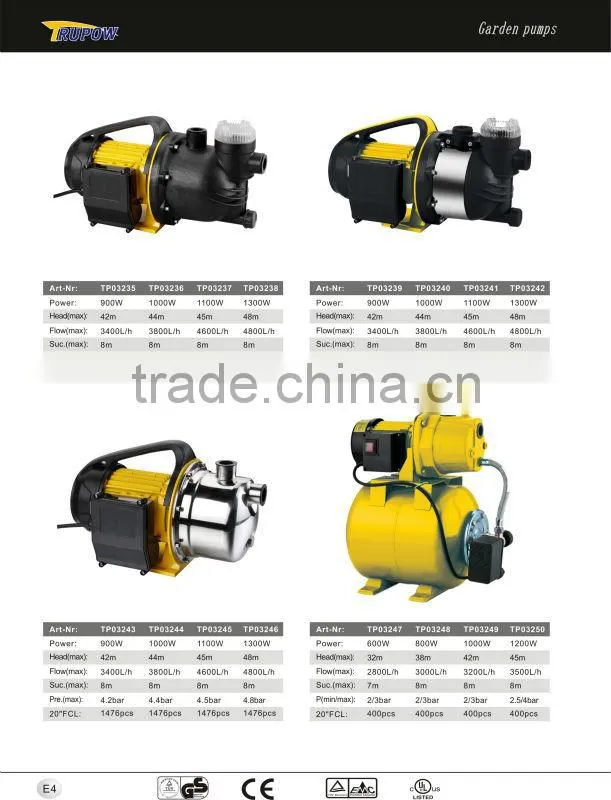

Technical Data:
Product NO. |
TP03239 |
TP03240 |
TP03241 |
TP03242 |
Power |
900W |
1000W |
1100W |
1300W |
V&Hz |
230V/50Hz |
230V/50Hz |
230V/50Hz |
230V/50Hz |
Max.pump rate |
3400L/H |
3800L/H |
4600L/H |
4800L/H |
Max.height |
42m |
44m |
45m |
48m |
Max.depth |
7m |
7m |
7m |
7m |
Dia. Of pipe |
1” |
1” |
1” |
1” |
