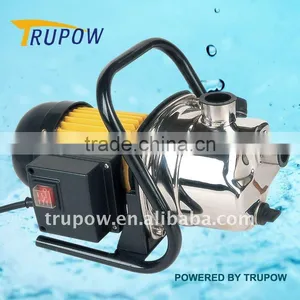

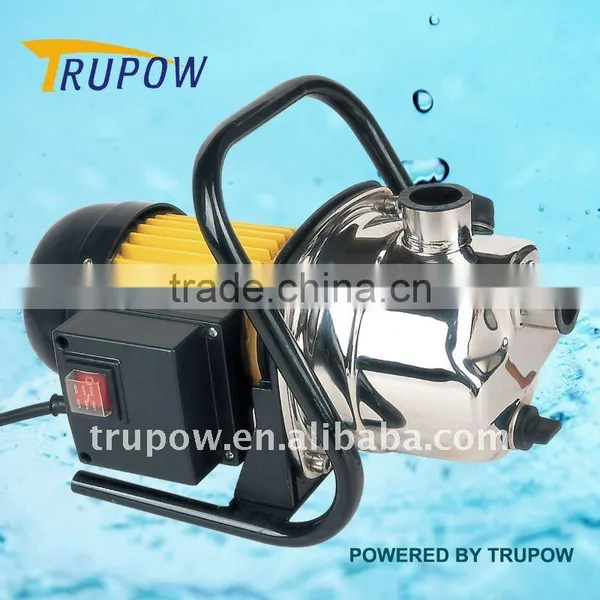

1200W garden stainless steel jet water pump

Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C



-Motor shaft: 45# Carbon steel

-Impeller: PP

-Pump head: Stainless steel

Application:
-Selfpriming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Suitable for pumping clean water. They are particularly suitable for domestic applications such as supply water from well,pool etc,the automatic distribution of water by surge tanks and pressure switch,gardening,and increasing of water pressure.





MODEL	POWER (W)	MAX HEAD (M)	MAX FLOW (L/H)	MAX SUC. DEPTH (M)	MAX PRE. (BAR)	CABLE AND LENGTH (M)	QTY/20”CTN (PC)
TP03017	600	35	2800	7	3.5	H07RN-F3G1.0mm2X1.2m	1400
TP03018	800	40	3200	8	4	H07RN-F3G1.0mm2X1.2m	1400
TP03019	1000	44	3500	8	4.4	H07RN-F3G1.0mm2X1.2m	1400
TP03020	1200	48	3800	8	5	H07RN-F3G1.0mm2X1.2m	1400
