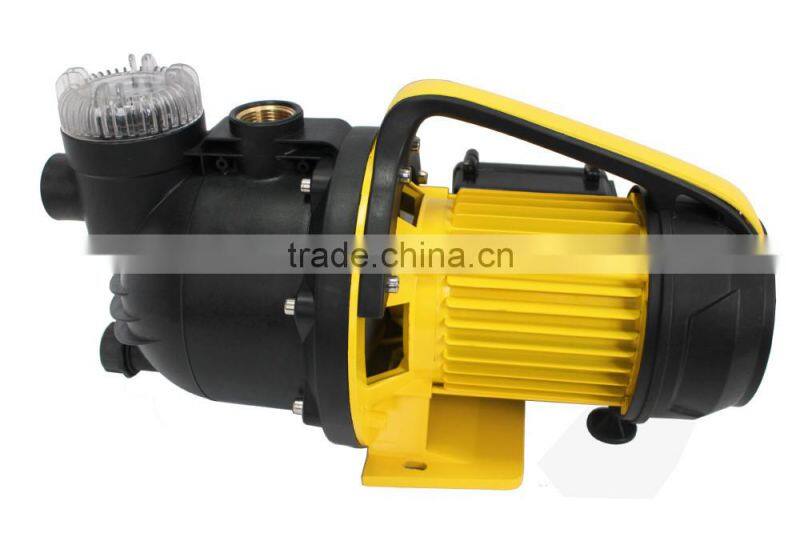

TP03239 High quality Garden pump jet series
Centrifugal clean water garden pump, with a very high hydraulic performance and a considerable pressure capacity
It is ideal for conveyance of clean water.
They are particularly suitable for domestic applications such as supply water from well, pool, etc, the automatic distribution of water by surge tanks and pressure switch ,gardening, and increasing of water pressure.
This pump shall not be used to convey abrasive materials, silt materials, slurry, or other viscous materials, and shall not be suitable for long time continuous operation (e.g. cyclic running in filter of swimming pond or act as industrial equipment).
Features:
Garden Jet Pump
Build-in overload motor protector with automatic reset
Protection IPX4
Pump Head: PP
Impeller: PP/brass if request
Dry-running of pump shall be prohibited.
COMPONENTS:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-H05RN-F3G0.75mm²*10m
MATERIAL:
-Pump body: PP
-Impeller: PP/stainless steel
-Shaft with rotor: 45# Carbon Steel/Stainless iron
APPLICATION:
-Submersible dirty water pumps with back impeller suitable to lift waste liquids even with suspended solids.
-Able to drain infiltrating water, cesspools or reservoirs, decanting water and clean, dirty or muddy swimming pools.
OPERATING LIMITS:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
PRODUCT DATA:
Product NO. |
TP03239 |
TP03240 |
TP03241 |
TP03242 |
Power |
900W |
1000W |
1100W |
1300W |
V&Hz |
230V/50Hz |
230V/50Hz |
230V/50Hz |
230V/50Hz |
Max.pump rate |
3400L/H |
3800L/H |
4600L/H |
4800L/H |
Max.height |
42m |
44m |
45m |
48m |
Max.depth |
7m |
7m |
7m |
7m |
Dia. Of pipe |
1” |
1” |
1” |
1” |
PRODUCT DETAILS SHOW:
Workshop
Exhibition
Certification
