Inlet Cutting Submersible Sewage Pump With 2200W 700L/min

Inlet Cutting Submersible Sewage Pump with 2200W 700L/min

Application: .

Submersible sewage pumps widely used in agriculture, architecture, mine, environment protection and industry, such as drainage slurry, waste water, which contained short fibre, long fibre, wastepaper, sand and so on, it is also an ideal equipment for irrigation

Operating conditions: .

*The maximum deep it is allowed in water is 5m from its center of impeller;

*Max. medium temperature: +40

*Trans medium's PH:4-10;

*Kinematics viscosity of the trans medium is:7*10^-7-23*10^-8m²/s;

*Density of the trans medium limit;1.2*10³kg/m³;

*The solid diameter is about35mm

Motor:

*Closed, externally ventilated

*Insulation Class B

*Protection IPX8

Material:

*Pump body: Cast iron

*Impeller: Superior steel / Cast iron *

Shaft with rotor: Superior steel

*Mechanical seal: Stainless steel/Carbon-ceramic

*Thermal protector

*Motor housing:Stainless steel

*Single phase 220V-230V/50Hz

*Three phase 380V/50Hz

*Three phase 220V/440/60Hz if request

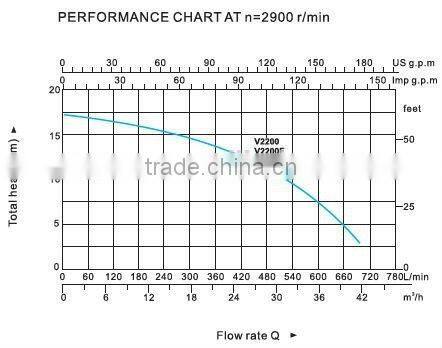

Technical Data:

Workshop

Exhibition

Certification

Our Advantages:

1. Competitive Price

2. Best Quality

3. Lowest MOQ

The reason why choose us?

1. We have 11 years experiences in supplying pumps to Europe, Australia, USA, Russia.

2. We have not only produce garden pumps, also we can offer submersible pumps, diesel transfer pumps, etc.

3. We have a very strong quality control system: Raw material control / process control/component quality contorl/ finished product quality inspection/ mass production spot check/ Inspection company check

4. We have a professional design team who deal with color box/ Instruction manual/ prodcut design accroding to customer's requirement.

5. We have competitive price and have best delivery time, most spare parts are produced by our factory, and we have the old experience workes.

6. We have best after-sale service, and we are very confident in our products to offer customers 1 year warranty. The customers are guaranteed by our 100% satisfaction on all products.
