2015 Hot!!! Hydraulic Chain Saw

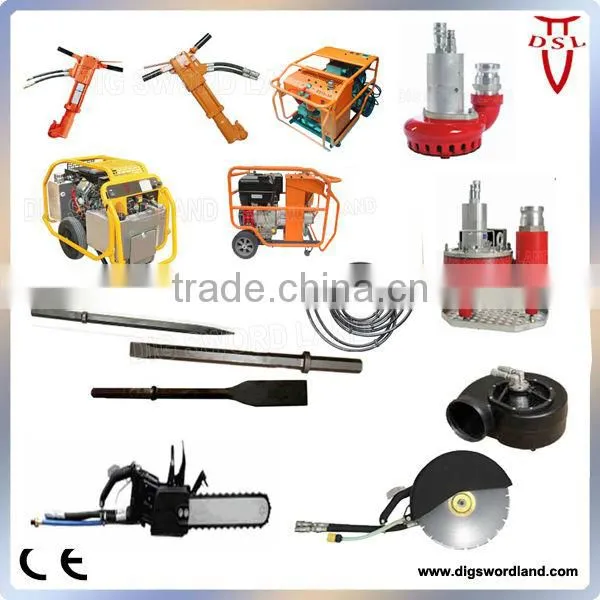

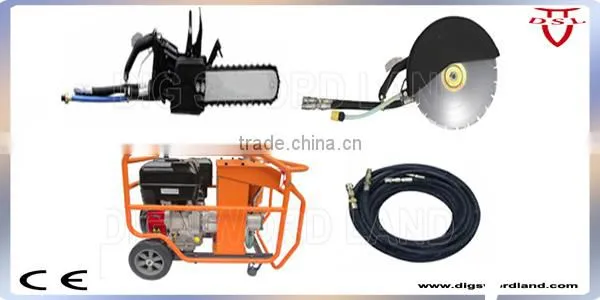

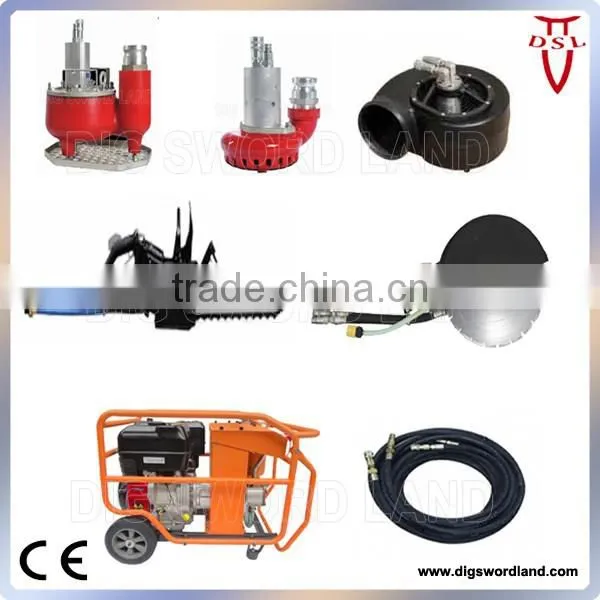

Other hydraulic tools:

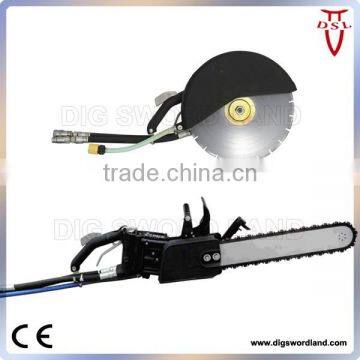

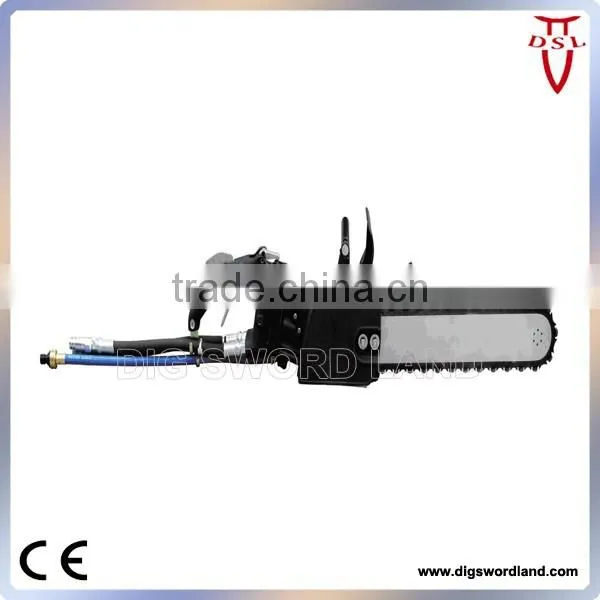

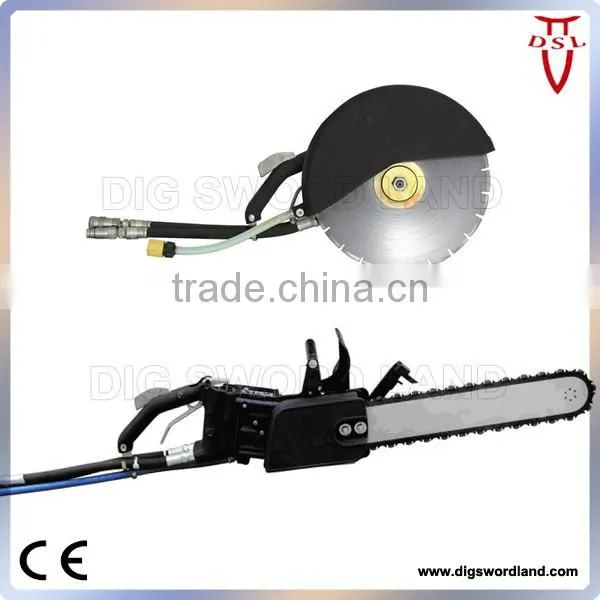

Hydraulic Chain Saw

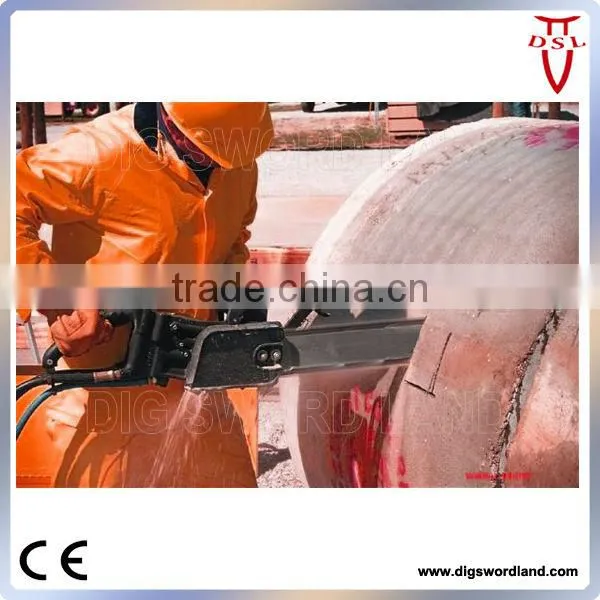

The diamond chain saw is driven by the power unit, coupled with a bar containing water channel for chain lubrication and cooling to cut concrete and reinforced concrete and rock as well as metal materials.
The handle and the guard matched with body dynamics
Replace with the carborundum chain for cutting ductile iron and pipe.
The hydraulic diamond chain saw used to cut and quick open hole on collapsed concrete precast panel and reinforced concrete wall in Earthquake rescue and Firefighting rescue application, In order to place life detectors and Lifestyle Article for the trapped people. With laser welded segments impregnated with diamond and water channel for chain lubrication and cooling. Option different bars and chains for cutting depth 330mm~500mm, plunge cutting for window and door openings, air conditioner cutouts, and notching or trimming and cutting square corners without over-cut.
| Type | DS12 hydraulic chain saw |
| Weight(kg) | 12.4 |
| Bar size(mm) | 380 |
| Cutting depth (mm) | 380 |
| Output flow(lpm) | 30 |
| Operating pressure(bar) | 140 |
| Length(mm) | 585 |
| Width(mm) | 240 |
| Height(mm) | 265 |

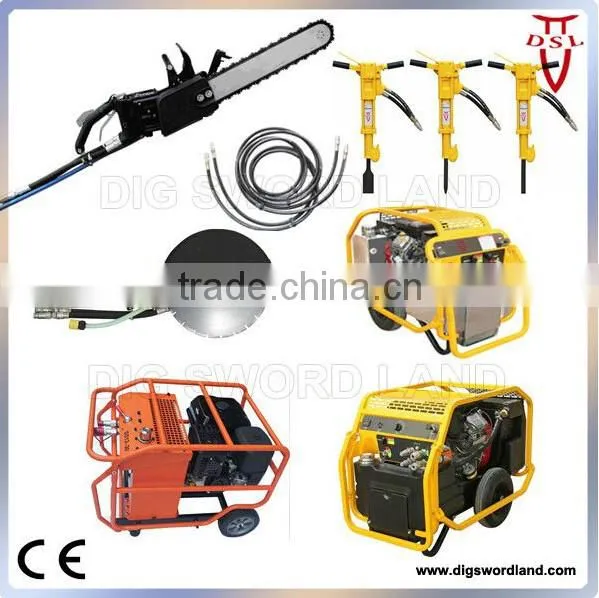

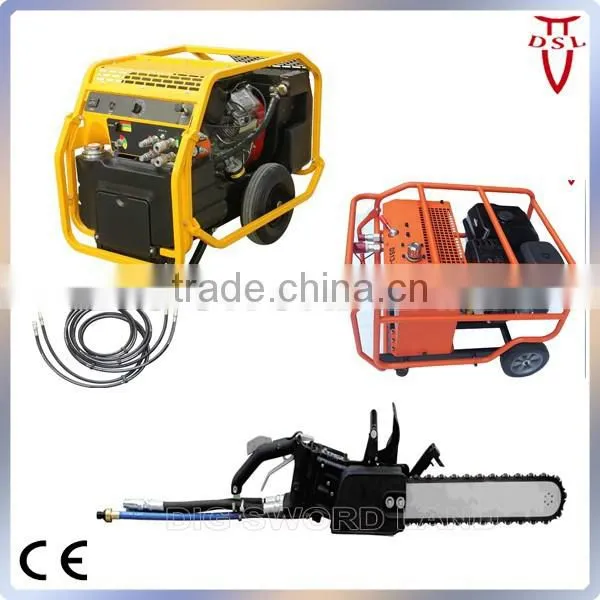

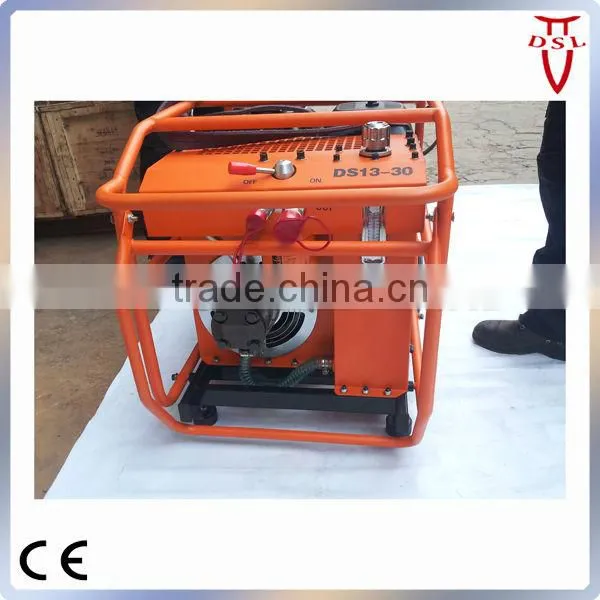

Hydraulic Chain Saw It should driven by hydraulic power unit:
| Gasoline engine hydraulic power unit | ||||
| Type | DS-13-30 | DS-18-30 | DS18-40 | DSR23-40 |
| Weight(Kg) | 90 | 120 | 120 | 135 |
| Size(mm) | 780*560*600 | 900x590x740 | 900*590*740 | 1020x610x770 |
| Volume(l/min) | 30 | 20-24 | 30/40 | 2X20/30 or 40 |
| Pressure(Bar) | 155 | 155 | 155 | 115 |
| Engine | Honda13hp(9.6kw) | B&S18hp(13.2kw) | B&S 18hp(13.2kw) | B&S 23hp(17kw) |
| wheel/handle | yes | yes | yes | yes |
| cooling power(hp) | 5 | 5 | 5 | 5 |
| capablity of oil tank(L) | 12 | 12 | 12 | 12 |
| pollution indication | yes | yes | yes | yes |
