No matter what is the bad situation in the wilds or in the cities where are strictly noise level control.
The breaking tasks such as concrete, reinforced concrete, asphalt and rock can be performed effectively and safely.
Advantage:the hydraulic jack hammer is more efficiency than pneumatic tools ,it's popular in europe,such as Norway,Sweden,Netherlands,Finland etc...
Feature
Small size and light weight
Powerful impacting energy and low reverse impacting
Low noise, high reliability, and durable working
Breaking bits for different demands
Specification
Electric Hydraulic Power Pack:
| Type | ES10-20 | ES15-30 |
| Weight (kg) | 90 | 120 |
| Size (mm) | 800×550×530 | 9000×590×600 |
| Output flow (lpm) | 20 | 20 or 30 |
| Output pressure (bar) | 90-155 | 90-155 |
| Engine | Electrical motor(7.5KW) | Electrical motor(11KW) |
| Volt. | 380V/50HZ | 380V/51HZ |
| Wheel/handle | Yes | Yes |
| Cooling power (hp) | 5 | 5 |
| Capability of oil tank (L) | 12 | 12 |
| Pollution indication | Yes | Yes |
Gasoline Hydraulic Power Pack
| Model | DS13-30 | DS18-30 | DS18-40 | DSR23-40 |
| weight(kg) | 90 | 120 | 120 | 135 |
| size(mm) | 780*560*600 | 900x590x740 | 900*590*740 | 1020x610x770 |
| output flow(L/min) | 30 | 20-24 | 30/40 | 2X20/30 or 40 |
| output pressure(bar) | 155 | 155 | 155 | 115 |
| engine | Honda13hp(9.6kw) | B&S18hp(13.2kw) | B&S 18hp(13.2kw) | B&S 23hp(17kw) |
| wheel/handle | yes | yes | yes | yes |
| cooling power(hp) | 5 | 5 | 5 | 5 |
| capablity of oil tank(L) | 12 | 12 | 12 | 12 |
| pollution indication | yes | yes | yes | yes |
Hydraulic demolition breaker
| Type | BR40 | BR40J | BR45 | BR45J | BR67 | BR67J |
| Weight (kg) | 1800-2400 | 19 | 20 | 20 | 28 | 28 |
| Output flow(ipm) | 15-24 | 15-24 | 26-34 | 26-34 | 26-34 | 26-34 |
| Operating pressure(bar) | 90-140 | 90-140 | 105-140 | 105-140 | 105-140 | 105-140 |
| Impacting frequency (bpm) | 1800-2400 | 1800-2400 | 1800-2400 | 1800-2400 | 1800-2400 | 1800-2400 |
| Bits size(in.Hex) | 1*4-1/4 | 1*4-1/4 | 1*4-1/4 | 1*4-1/4 | 1-1/4*6 | 1-1/4*6 |
| Model of handle | T-handle | Anti-vibration handle | T-handle | Anti-vibration handle | T-handle | Anti-vibration handle |
Electric hydraulic power pack &Gasoline hydraulic power pack can driven hydraulic jack hammer,hydraulic chain saw,hydraulic circle saw,hydraulic water pump ,Detail information you can click fellow picture to see it .

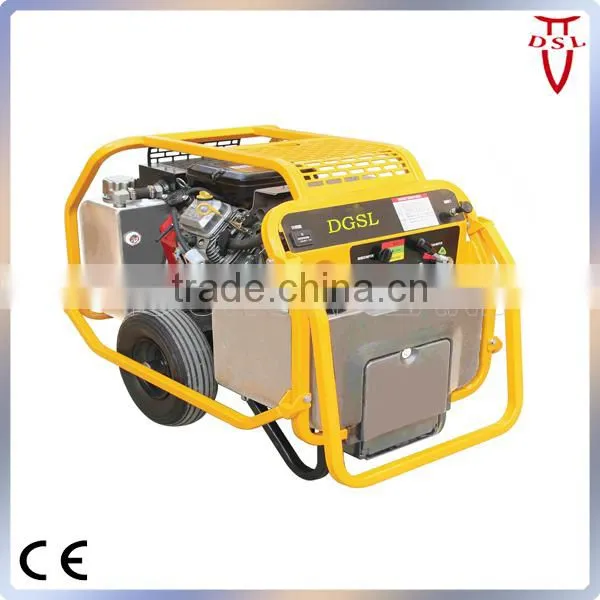

Power pack picturer:
ES15-30:
DS13-30:
DS18-30:
DS18-40:
DSR23-40:

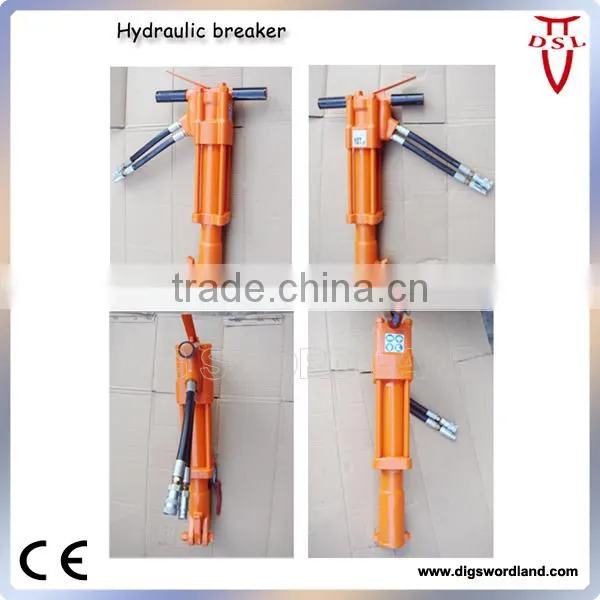

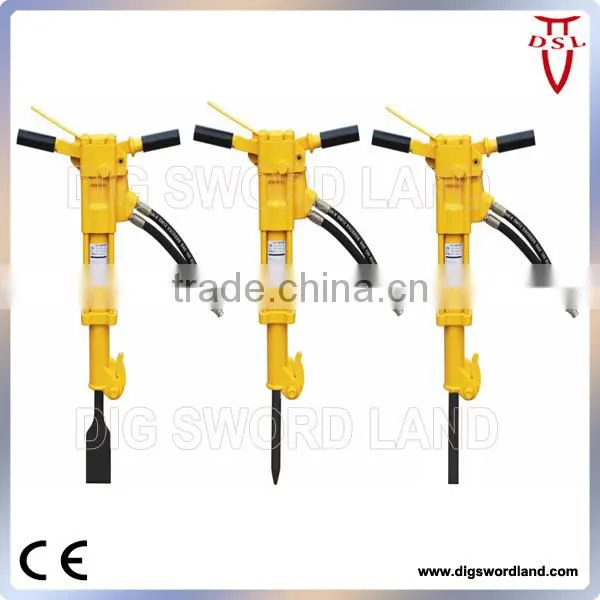

Hydraulic Demolition Hammer :
I am sure our price is best in China,this is our new main product ,our purpose is to expand this machine at present,So Welcome to talk with me ~
