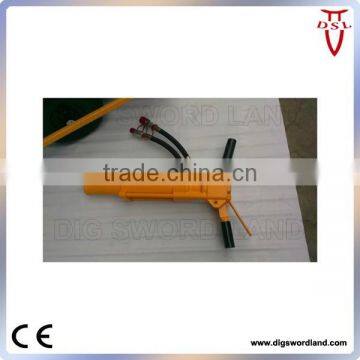

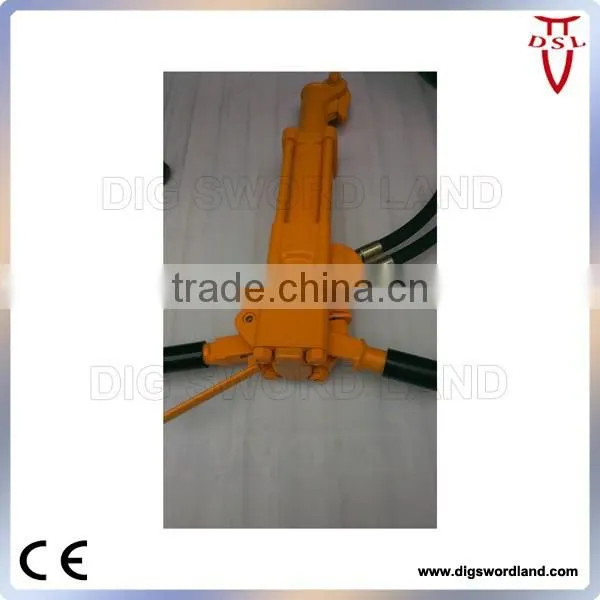

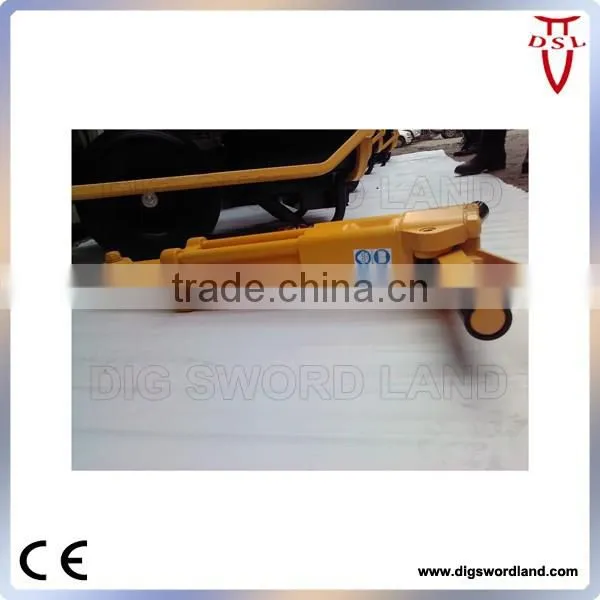

Electric Type Hydraulic Jack Hammer

Specifications

Gasoline Jack Hammer &Hydraulic Jack Hammer :
-Professional manufacturer
-Our patent products



No matter what is the bad situation in the wilds or in the cities where are strictly noise level control.



The breaking tasks such as concrete, reinforced concrete, asphalt and rock can be performed effectively and safely.



Advantage:the hydraulic jack hammer is more efficiency than pneumatic tools ,it's popular in europe,such as Norway,Sweden,Netherlands,Finland etc...



Feature

Small size and light weight

Powerful impacting energy and low reverse impacting

Low noise, high reliability, and durable working

Breaking bits for different demands



Specification

Electric Hydraulic Power Pack:

Type	ES10-20	ES15-30
Weight (kg)	90	120
Size (mm)	800×550×530	9000×590×600
Output flow (lpm)	20	20 or 30
Output pressure (bar)	90-155	90-155
Engine	Electrical motor(7.5KW)	Electrical motor(11KW)
Volt.	380V/50HZ	380V/51HZ
Wheel/handle	Yes	Yes
Cooling power (hp)	5	5
Capability of oil tank (L)	12	12
Pollution indication	Yes	Yes



Gasoline Hydraulic Power Pack

Model	DS13-30	DS18-30	DS18-40	DSR23-40
weight(kg)	90	120	120	135
size(mm)	780*560*600	900x590x740	900*590*740	1020x610x770
output flow(L/min)	30	20-24	30/40	2X20/30 or 40
output pressure(bar)	155	155	155	115
engine	Honda13hp(9.6kw)	B&S18hp(13.2kw)	B&S 18hp(13.2kw)	B&S 23hp(17kw)
wheel/handle	yes	yes	yes	yes
cooling power(hp)	5	5	5	5
capablity of oil tank(L)	12	12	12	12
pollution indication	yes	yes	yes	yes

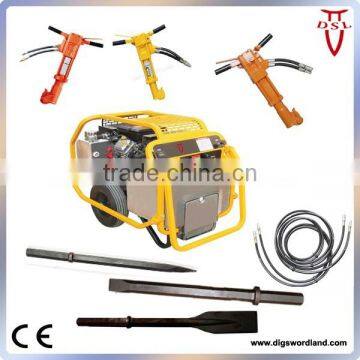

Electric hydraulic power pack &Gasoline hydraulic power pack can driven hydraulic jack hammer,hydraulic chain saw,hydraulic circle saw,hydraulic water pump ,Detail information you can click fellow picture to see it .

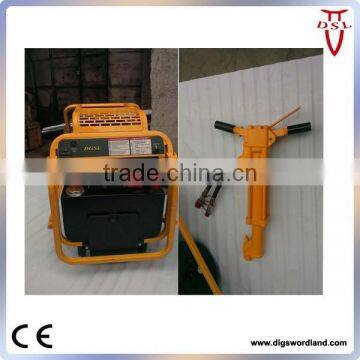

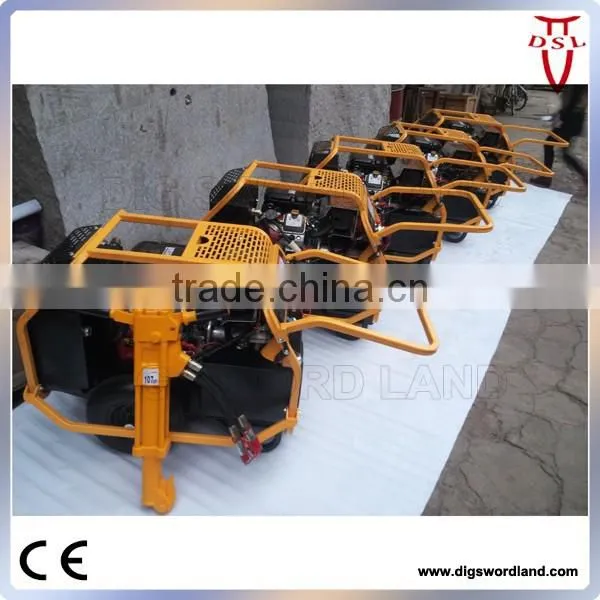

Power pack picturer:

ES15-30:



DS13-30:



DS18-30:



DS18-40:



DSR23-40:









I am sure our price is best in China,this is our new main product ,our purpose is to expand this machine at present,So Welcome to talk with me ~
