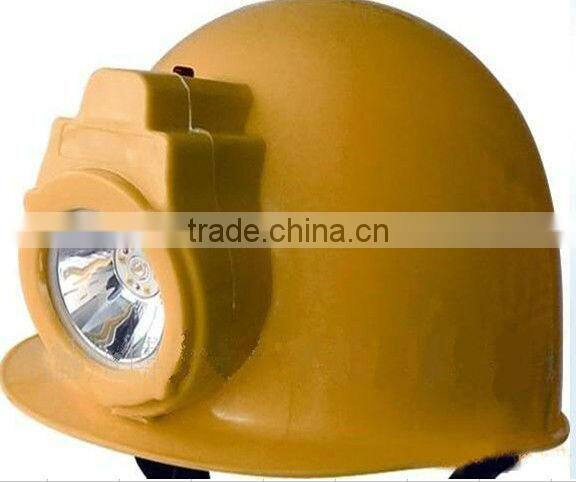

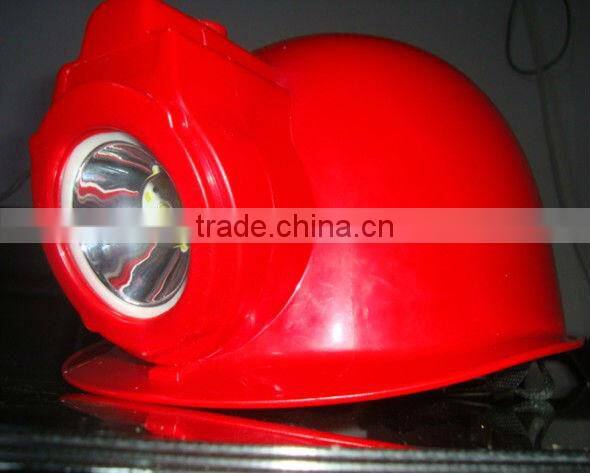

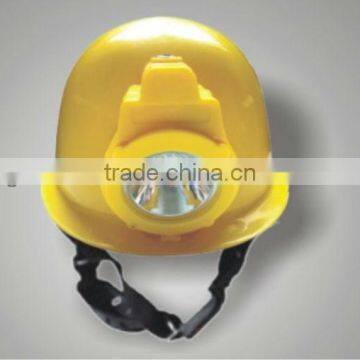

DSL990 Lamp Caps With Helmet

Name

Integrated helmet lamp

Model

DSL990

Color

According to customer

Light source

LED main and auxiliary light source

Led Quantity

 Main and deputy

Power Type

New Charging Type

Rated voltage

3.7V

 Rated capacity

2000mah

Discharging time

Usually 12-15h

Charging time

7-8h

Battery life

>500times

Quality period

12months

Enclosure protection class

IP65

Sealing level

one grade

Illumination at 1m(main source)

Begin lighting>1100LX at 1m  Lighting 11h>900LX

LED Average current

Main light sorce 150MA

Auxiliary light source 90MA

Charge protection voltage

4.2±0.05 V

Discharge protection voltage

3.0±0.05 V

Maximum size of shape

300*240*150mm

Weight

500 g

Scope of application

The night patrol and lighting of railways, electricity, industrial and mining enterprises

Place of origin

Yueqing Zhejiang
